Canon PC430 - Paper Pick-Up Roller Assembly

FIGURE
&
KEY NO.
PART NUMBER
R
A
N
K
Q’
T
Y
DESCRIPTION SERIAL NUMBER / REMARKS
1
4
2
5
3
340 - FG5 - 9609 - 000
1
PAPER PICK-UP ROLLER ASSEMBLY FC220,PC420,430
1
FB1 - 7303 - 000
1
ROLLER, PAPER PICK-UP
2
FB1 - 7305 - 000
1
GEAR, 34T
3
FB1 - 7306 - 000
1
BUSHING
4
FB1 - 7307 - 000
1
BUSHING
5
FB1 - 7308 - 020
1
GEAR, 34T

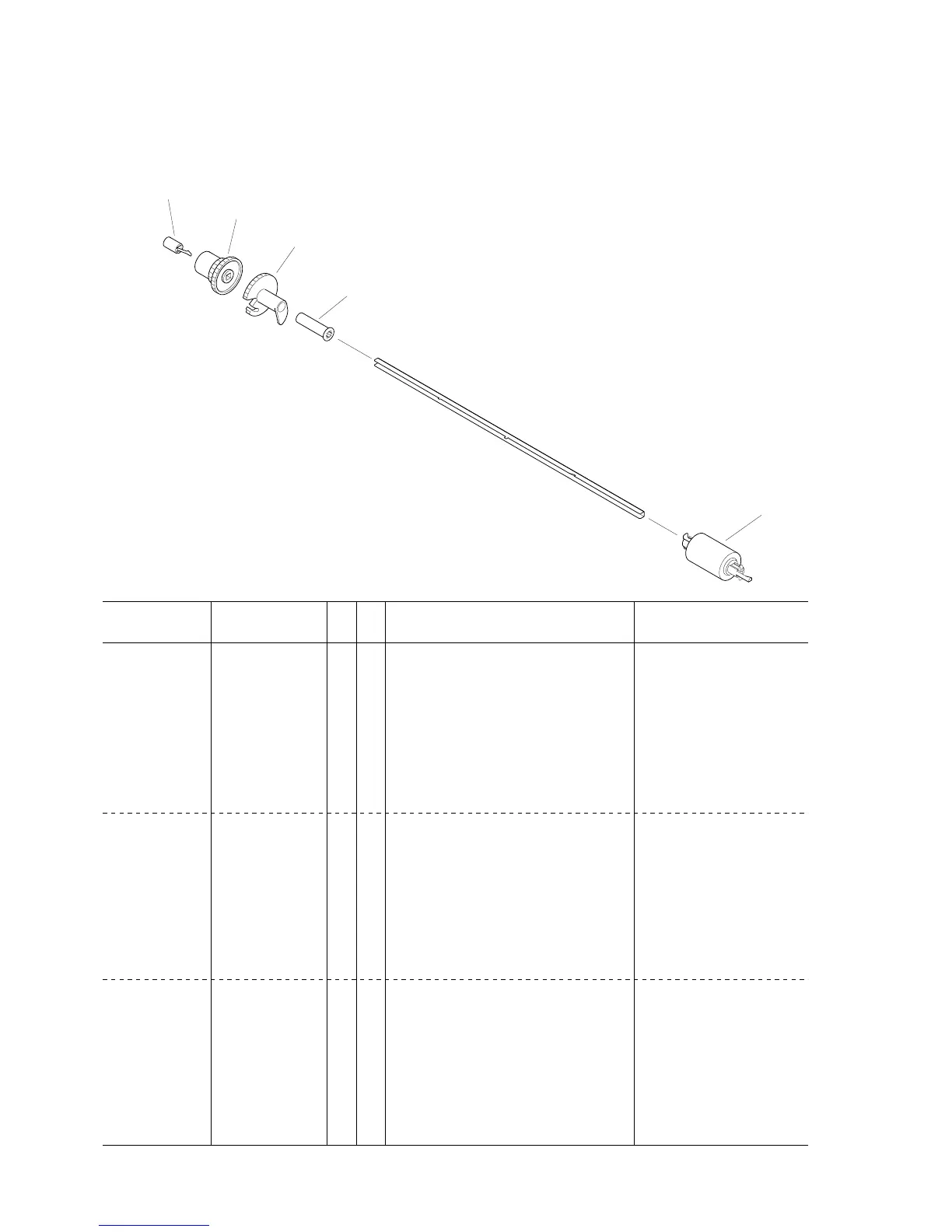

FIGURE 340
(FC220,PC420,PC430)
PAPER PICK-UP ROLLER ASSEMBLY
COPYRIGHT © 1998 CANON INC. CANON FC220/PC420/430/FC200/PC400 REV.0 JAN. 1998 PRINTED IN JAPAN [IMPRIME AU JAPON]
340-1
