CHAPTER 10 TROUBLESHOOTING
V. TROUBLESHOOTING PAPER FEED PROBLEMS
A. Copy Paper Jams
Jams can be classified according to location within the copier:
q Pick-up assembly
w Separation/feeding assembly
e Fixing/delivery assembly
The discussions that follow are organized with reference to these assemblies.
➀➁➂

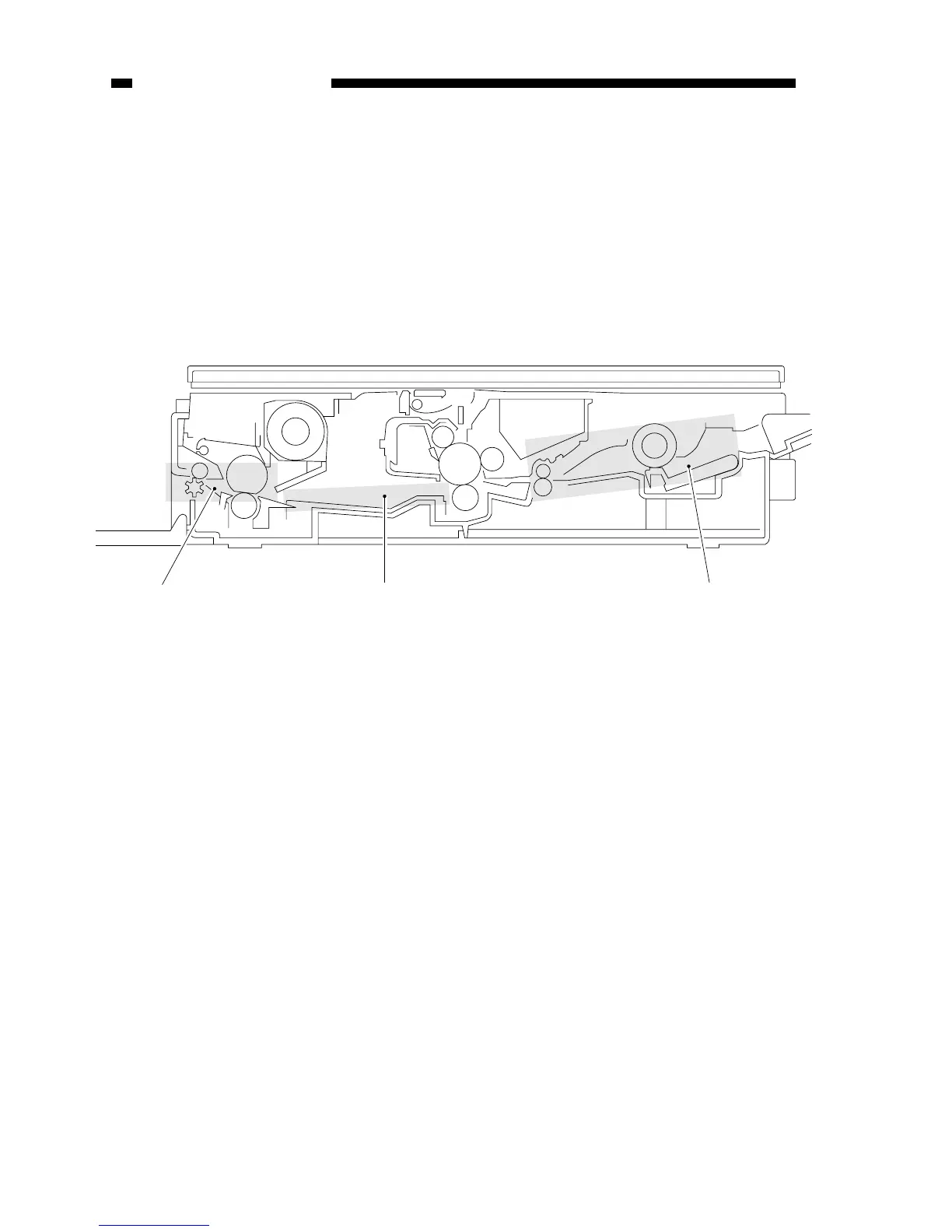

Figure 10-501A
