Canon PC430 - Printed Circuit Board (PCB)

6-4
CHAPTER 6 ARRANGEMENT AND FUNCTIONS OF ELECTRICAL PARTS
D. Printed Circuit Board (PCB)

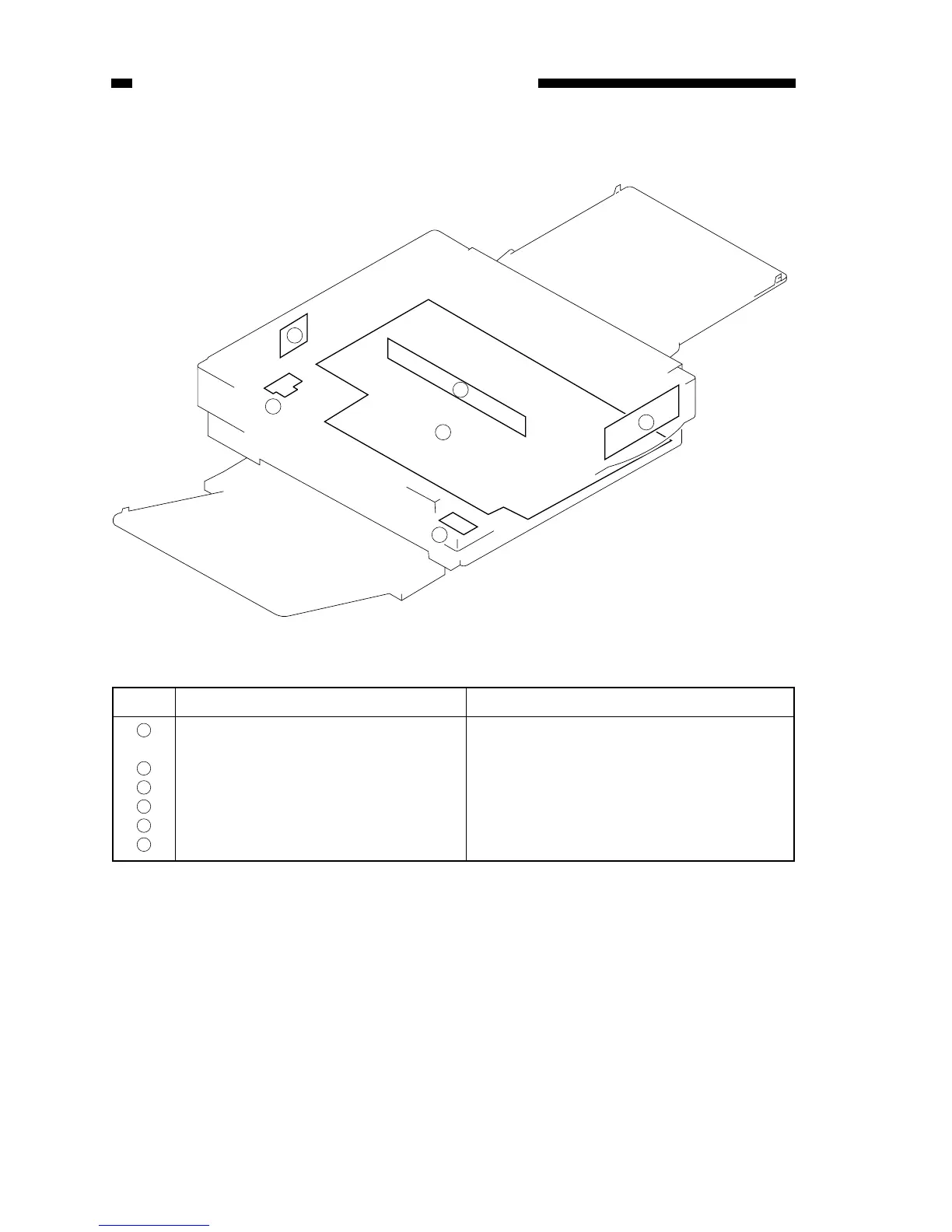

Figure 6-1D
6
5
1
4
3
2
Ref. Name Description
DC controller/DC power supply PCB
Control panel PCB
Scanning lamp PCB
Delivery sensor PCB
Motor rotation sensor PCB
Copyboard position sensor PCB
Controls sequence, supplies DC power, controls
scanning lamp ON
Controls/displays copying operation
Scanning lamp (LA1-LA8)
Detects delivery
Detects main motor rotation
Detects copyboard position
2
1
3
4
5
6
