CHAPTER 5 PICK-UP/FEEDING SYSTEM
5-3
B. PC400/FC200

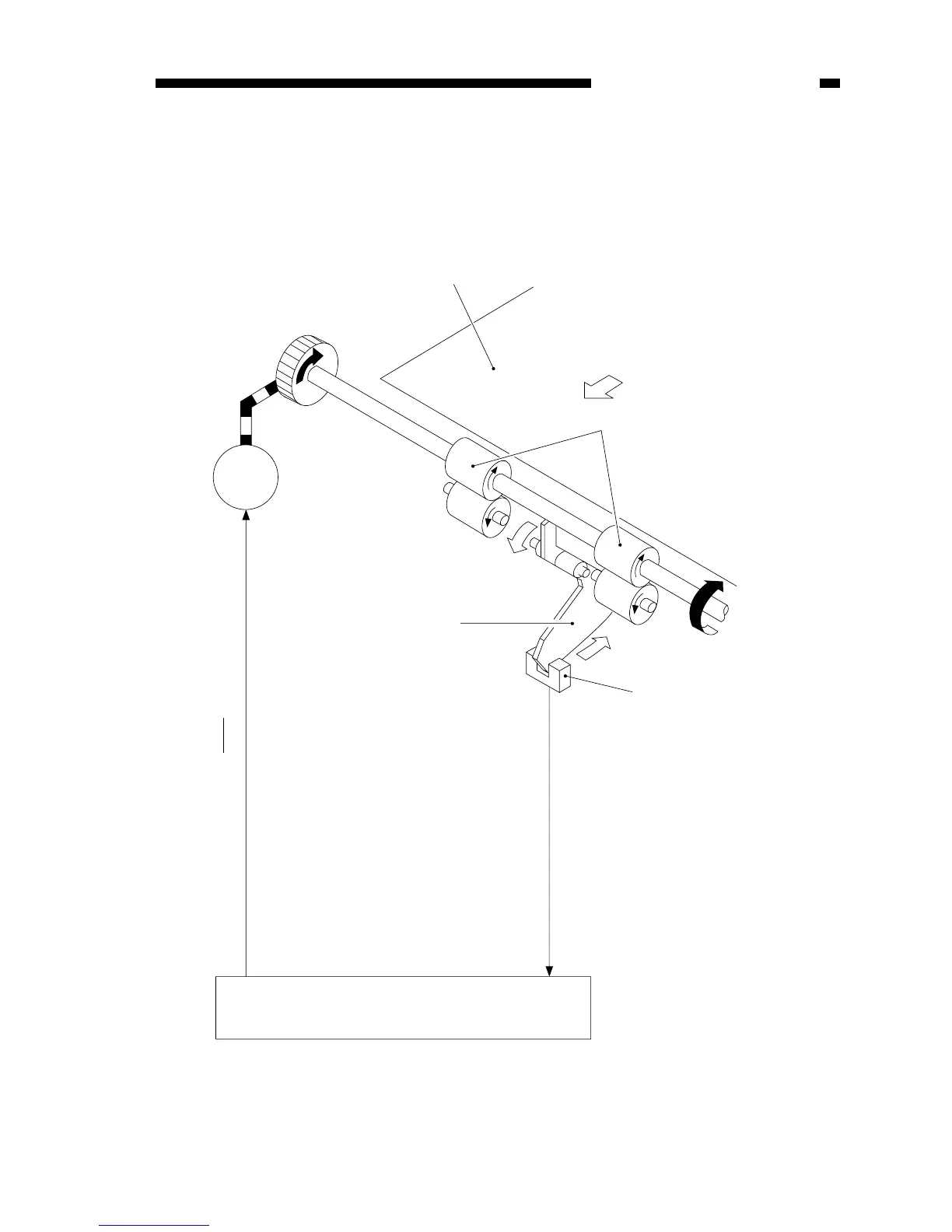

When the pick-up sensor (Q131) detects copy paper, the main motor (M1) goes ON,
causing the pick-up roller to rotate by its drive.
The pick-up roller keeps rotating as long as the main motor remains ON.
The condition causes the copy paper to butt against the registration roller.
DC controller/DC power supply PCB
Sensor lever
Pick-up sensor (Q131)
Pick-up rollers
Pick-up direction
Copy paper
Main motorM1
Main motor drive command (MMD)
Pick-up sensor oscillation signal
