COPYRIGHT © 1998 CANON INC. CANON PC400/420/430,FC200/220 REV.0 JAN.1998 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-12
CHAPTER 5 PICK-UP/FEEDING SYSTEM

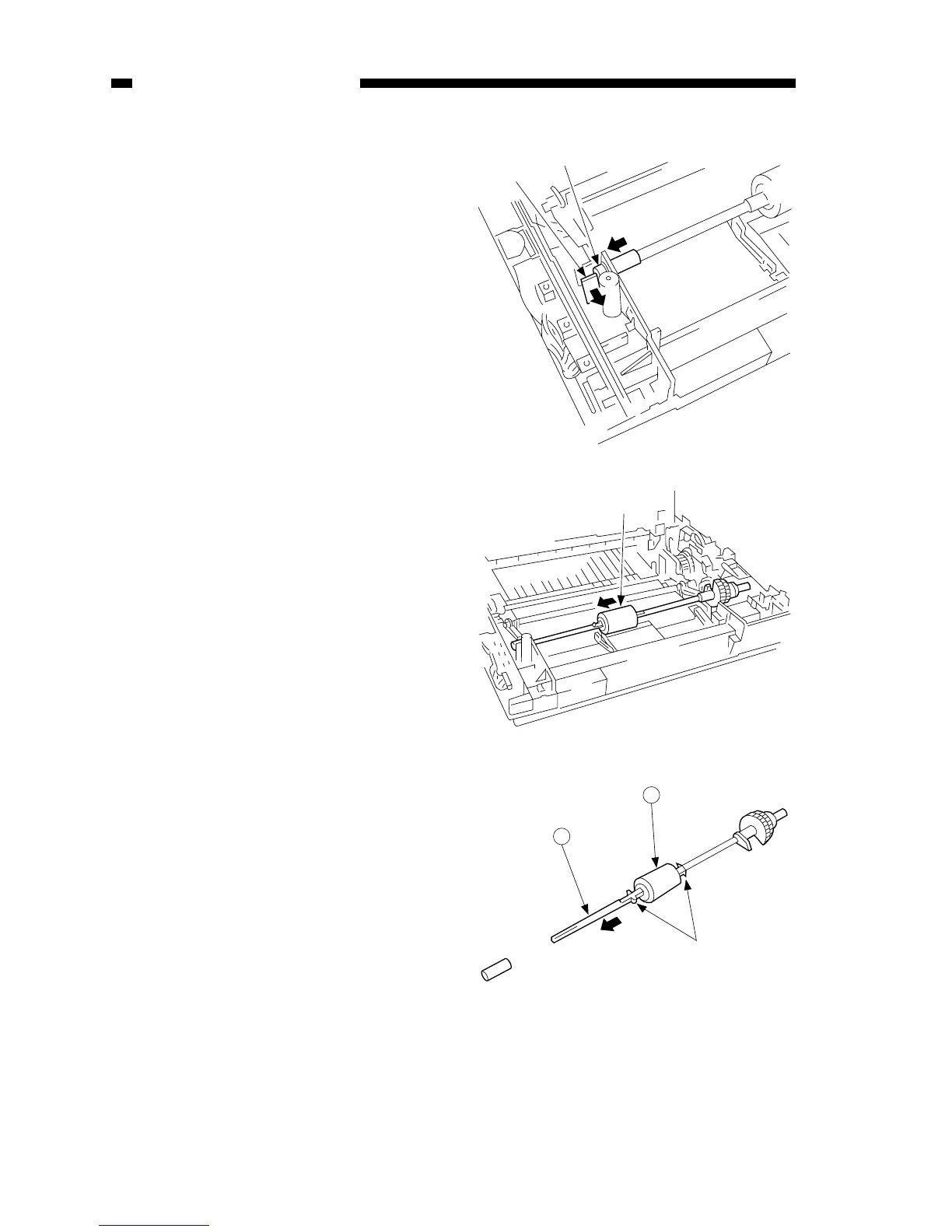

4) Bend the holding plate t, and
detach the pick-up roller bushing y
by pulling it to the front.
Figure 5-503A
5) Move the pick-up roller assembly u
to the front, and detach it from the
rear.
Figure 5-504A
6) Disengage the hook i, and detach
the pick-up roller !0 from the pick-up
roller shaft o.
Figure 5-505A
To Next Page
