CHAPTER 2 BASIC OPERATION
2-9

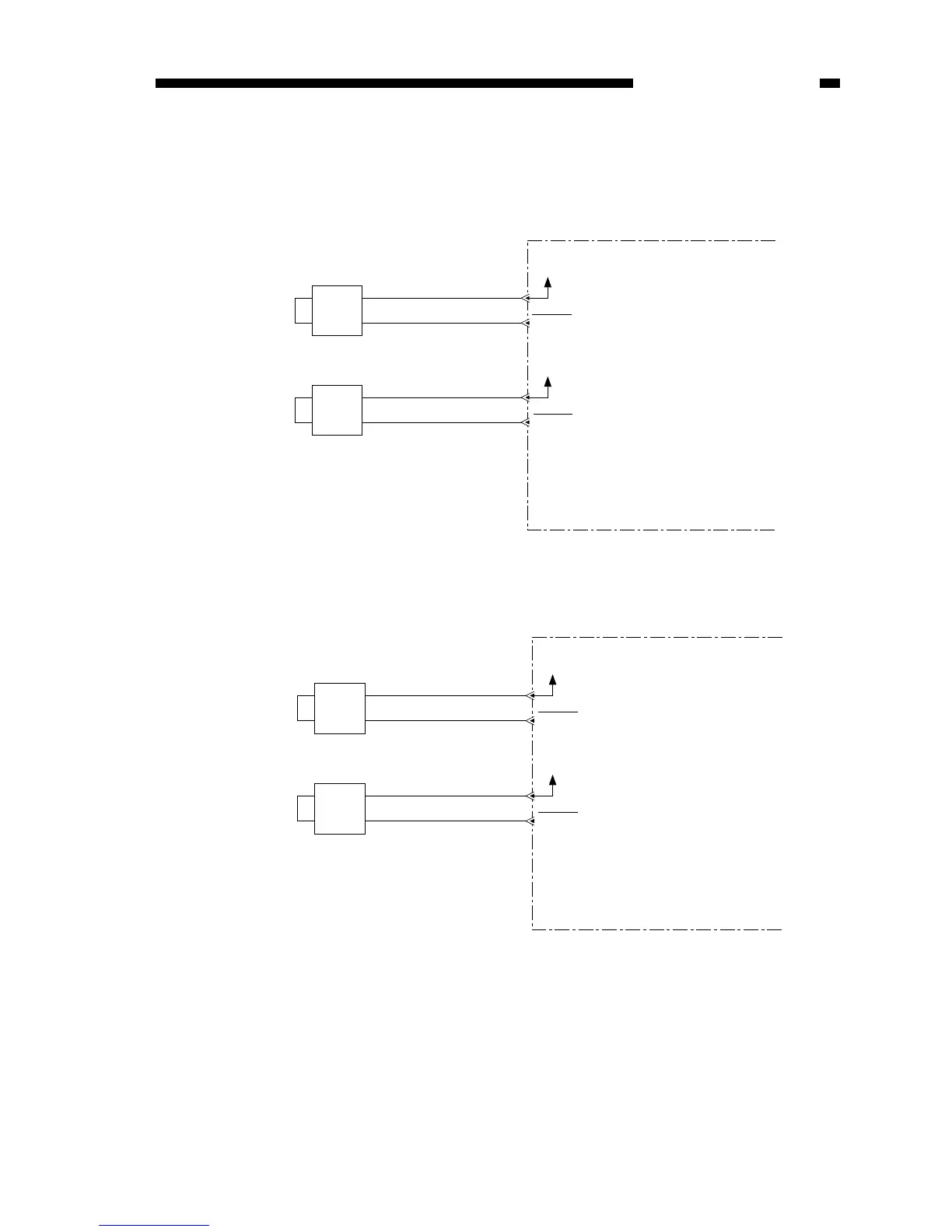

2. Outputs from DC Controller (2/2)
a. PC420/430/FC220
Pick-up
solenoid
SL1
J901
-1
-2
J201
-7
-6
+24V
PUSD When ‘0’, SL1 goes ON.
Copyboard
drive
solenoid
SL2
J902
-1
-2
J101
-9
-8
+24V
CBSD
(voltage to SL2 is switched
between 24V and 15V to
ensure stable operation)
DC controller/DC power supply PCB
When ‘0’, SL2 goes ON.
Figure 2-102F
b. PC400/FC200
Figure 2-103F
Registration
solenoid
SL1
J901
-1
-2
J201
-7
-6
+24V
RGSD When ‘0’, SL1 goes ON.
Copyboard
drive
solenoid
SL2
J902
-1
-2
J101
-9
-8
+24V
CBSD
(voltage to SL2 is switched
between 24V and 15V to
ensure stable operation)
DC controller/DC power supply PCB
When ‘0’, SL2 goes ON.
