CHAPTER 3 EXPOSURE SYSTEM
c. Moving the Copyboard Forward

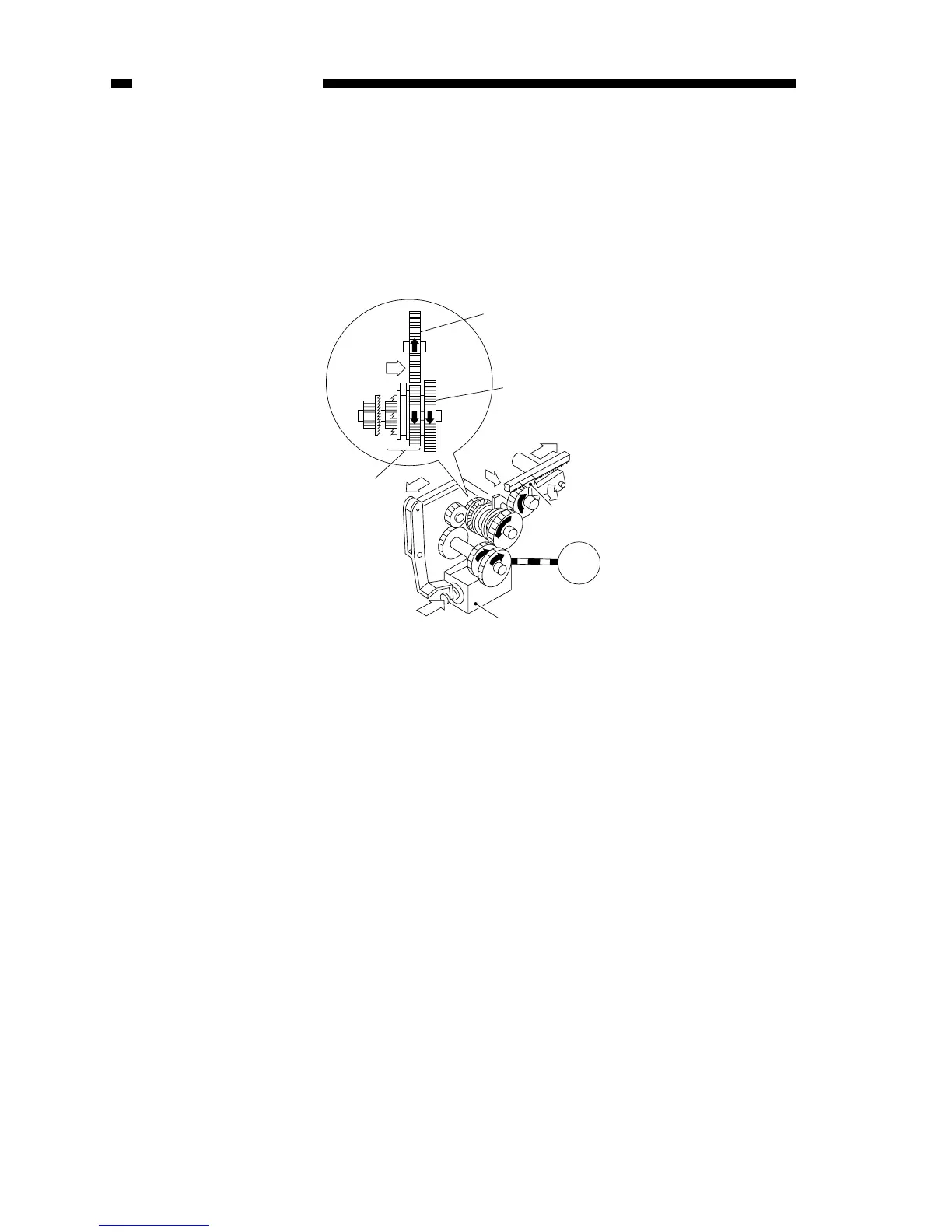

When the copyboard has moved in reverse and is positioned as shown in Figure 3-
105B, the start position cam pushes down the copyboard position sensor lever. When
SL2 goes ON in this position, the forward/reverse switching mechanism moves to the
position shown in the figure, causing the forward/reverse switching mechanism to
engage with the forward gear; as a result, the forward gear rotates in the direction of the
arrow, moving the copyboard forward.
