CDE360 Vector Control AC Drive Chapter 6 Parameters Description
Delay
time
Internal
state
Actual terminal
signal
Delay
time
Delay
time
Delay
time

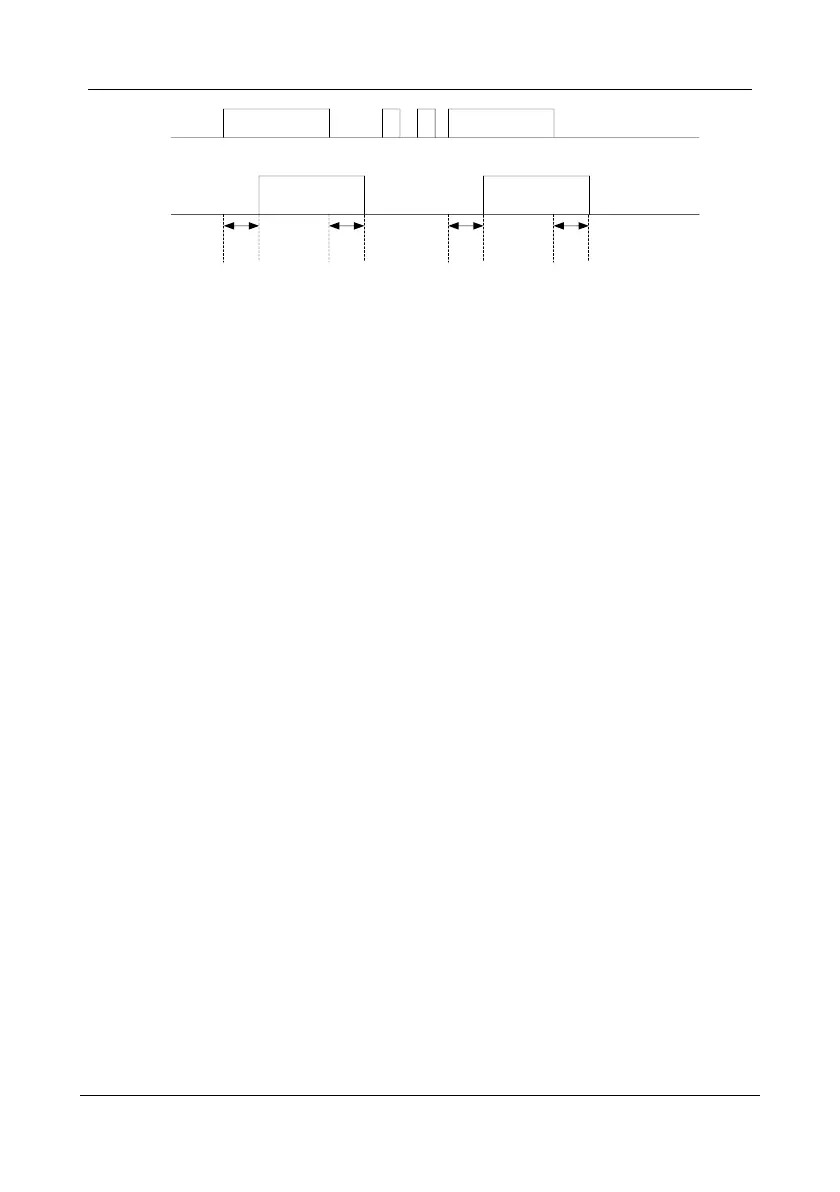

Figure 6- 13 digital output terminals output delay time diagram.
C1.14
Range: 0.0~3000.0
Default: 0.0
Y2 output delay
time
Unit: Sec
Define the output delay time of output switch terminal Y2.
C1.15
Range: 0.0~3000.0
Default: 0.0
Y3 output delay
time
Unit: Sec
Define the output delay time of output switch terminal Y3.
C1.16
Range: 0.0~3000.0
Default: 0.0
T1 output delay
time
Unit: Sec
Define the output delay time of relay T1.
C1.17
Range: 0.0~3000.0
Default: 0.0
T2 output delay
time
Unit: Sec
Define the output delay time of relay T2.
C1.18
Range: 0.0~3000.0
Default: 0.0
T3 output delay
time
Unit: Sec
Define the output delay time of relay T3.
C1.19
Range: 0.0~3000.0
Default: 0.0
T4 output delay
time
Unit: Sec
Define the output delay time of relay T4.
C1.20
Range: 0.0~3000.0
Default: 0.0
T5 output delay
time
Unit: Sec
Define the output delay time of relay T5.
C1.21
Range: 0.0~3000.0
Default: 0.0
T6 output delay
time
Unit: Sec
Define the output delay time of relay T6.
