Chapter 10 Optional Cards
10.1 Relay Card（IO1）
IO1 is an optional card for relay and digital output .It needs to be used together with the vector
control AC drives which is produced by our company.
 Functional overview
 4 relays outputs（T3~T6）
 1 digital output（Y3）
 Pin description
Table 10-1 Optional card IO1
Terminal Symbol
Description
T3-A
Relay 3 common port
T3-C
Relay 3 normally open port
T4-A
Relay 4 common port
T4-C
Relay 4 normally open port
T5-A
Relay 5 common port
T5-C
Relay 5 normally open port
T6-A
Relay 6 common port
T6-C
Relay 6 normally open port
Y3
Digital output terminal 3(open collect output)
COM
Digital output common port
Note: 1）T3~T6 has only normally open port.
2）T3~T6 and Y3 function is the same with Y/T terminal function of the control
board.
 Installation of the optional card

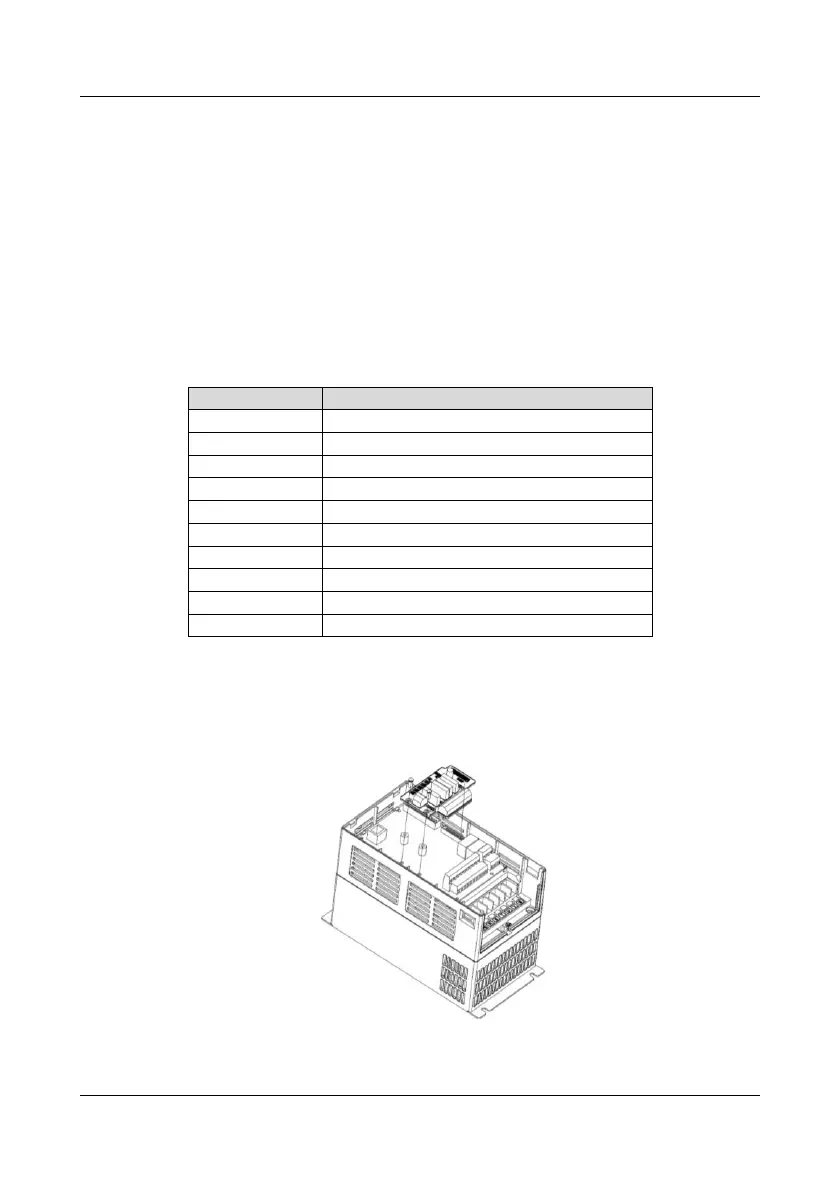

Figure 10- 1 Schematic diagram of the optional card installation
