CDE360 Vector Control AC Drive Chapter 6 Parameters Description
lower than the minimum input, the corresponding setting is decided by the
minimum input corresponding setting(C2.05,C2.09).
1: 0.0%；When the AI signal is lower than the minimum input, the
corresponding setting is 0%.
Unit’s digit: AI1 Ten’s digit: AI2 Hundred’s digit: AI3
Note:
 When the analog input greater than the maximum analog input(C2.06,C2.10), the
corresponding setting is decided by the maximal input corresponding setting.
 When the analog input below the minimum input, the corresponding parameter
setting determined by C2.22.
Group C3: Analog Output
C3.00
Range: 0.00~10.00
Default: 0.00
AO1 filter time
Unit: Sec
The parameter is used to set the software filter time of AO1. If the analog
output is liable to interference, increase the value of this parameter to
stabilize the detected analog output. However, increase of the AO filter
time will slow the response of analog detection. Set this parameter
properly based on actual conditions.
C3.00
Filtered signal
Unfiltered signal

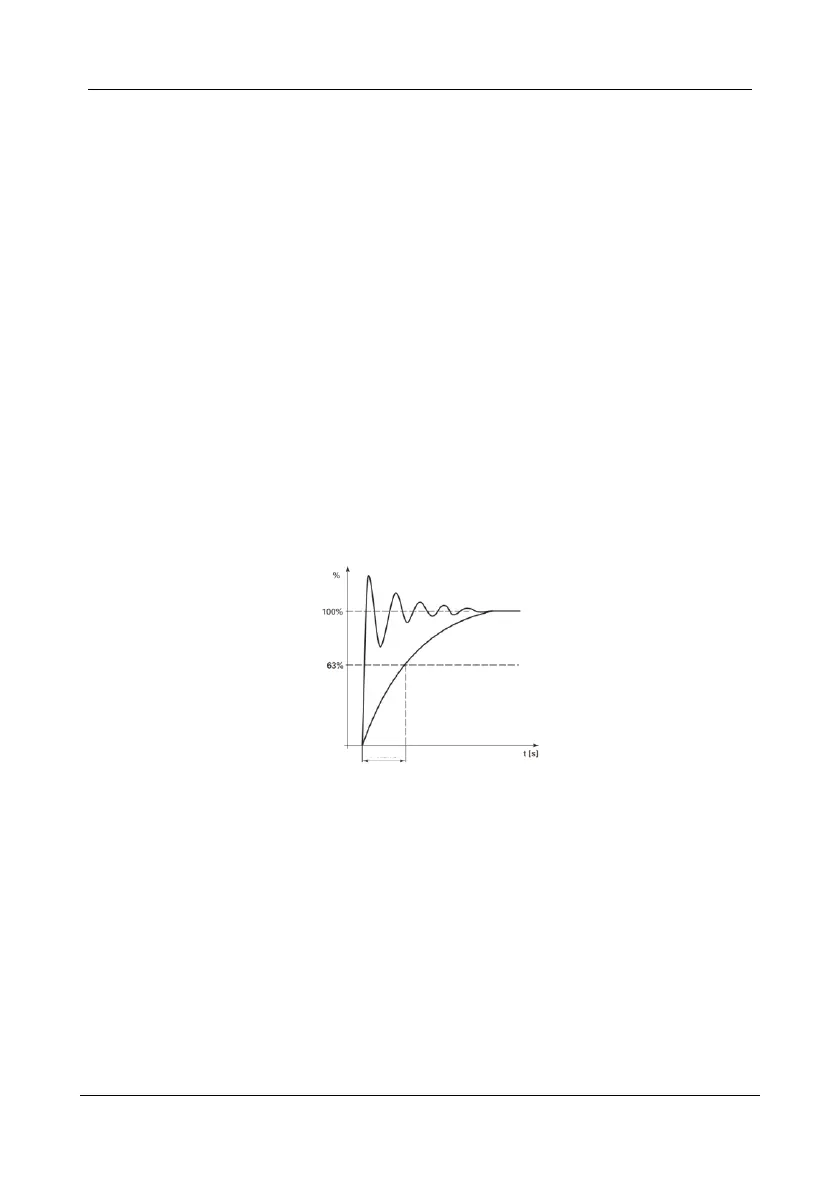

Figure 6- 17 Analog output 1 filter
C3.01
Range: 0.00~10.00
Default: 0.00
AO2 filter time
Unit: Sec
Same as C3.00.
C3.02
Range: 0~17
Default: 1
AO1 function
The parameter defined the AO1 function,as the table below.
C3.03
Range: 0~17
Default: 2
AO2 function
The parameter defined the AO2 function,as the table below.
AO1 and AO2 can select 0~10V voltage mode or 0~20mA current mode by the terminal CJ3 and
CJ4 which on control board.
