CDE360 Vector Control AC Drive Chapter 2 Product Information
2.6.3 Keypad B

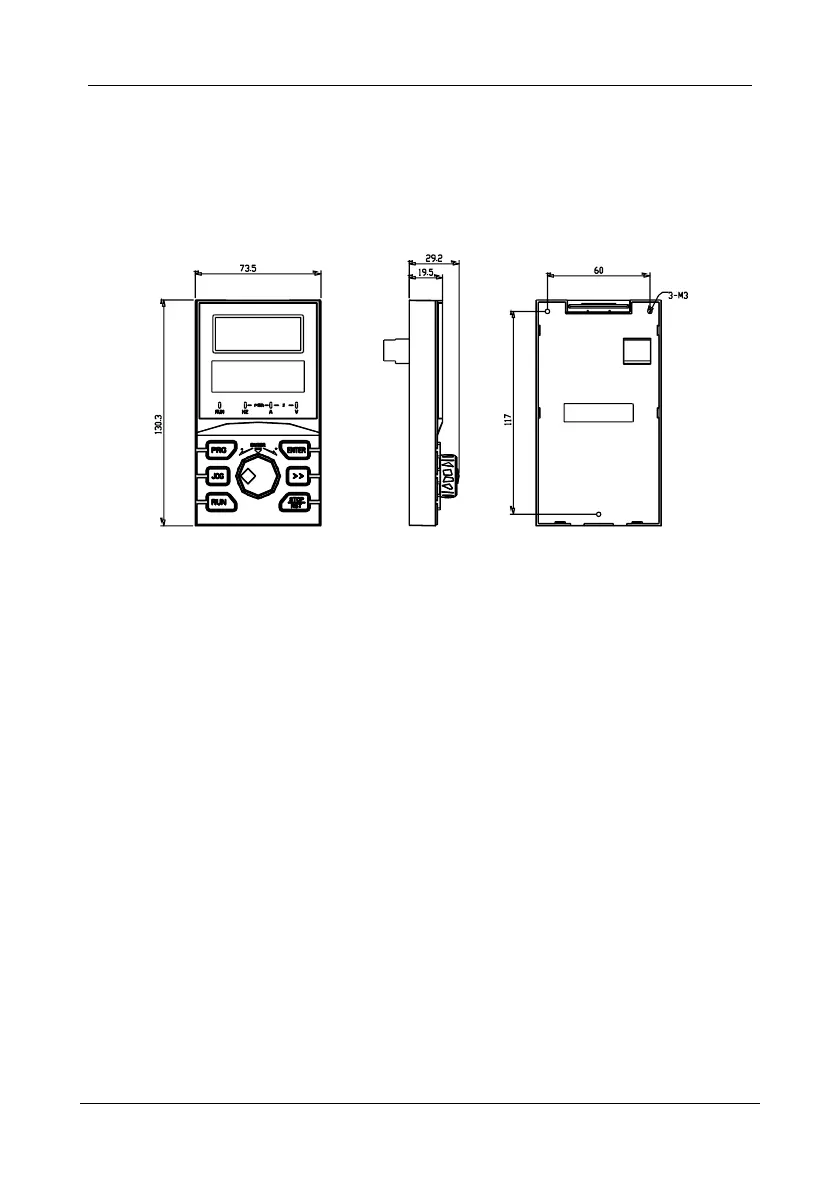

Model: KEYB. Four bit LED and LCD screen display. The physical appearance and dimensions are
shown in the following figure.
Figure 2- 5 KEYB
Remark：1) LED keypad built-in all of CDE360 AC drives
2) LED+LCD display keypad optional(≥15KW AC drive)
2.6.4 Keypad B Foundation
The foundation of keypad B is used together with keypad B for sheet metal housing or
wall-mounting installation. The physical appearance and dimensions of the foundation are shown in
the following figure.
