CDE360 Vector Control AC Drive Chapter 3 Mechanical and Electrical Installation
F. Earthing terminals
Connect to the ground reliably. The resistance of the earthing line should be less than 0.1Ω.
Otherwise, it may result in the malfunction of the device or even the damage to the
device.Do not connect the earthing terminal to the neutral wire of the power supply.
3.2.5 Control Terminals and Wiring Description
3.2.5.1 Terminal Arrangement of the Control Circuit

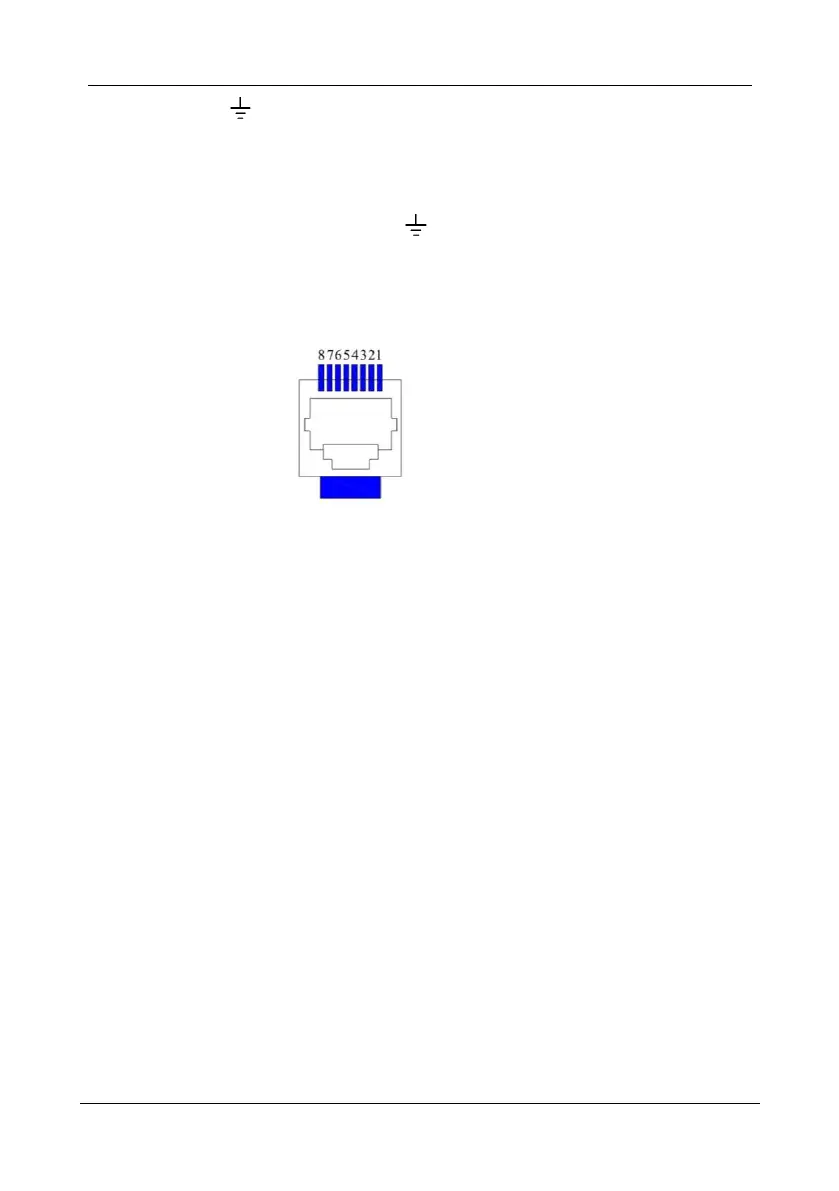

Figure 3- 14 Pin definition of keypad interface
Pin 1: not used
Pin 2: +15V
Pin 3: +15V
Pin 4: 485-
Pin 5: 485+
Pin 6: GND
Pin 7: GND
Pin 8: not used
