CDE360 Vector Control AC Drive Chapter 3 Mechanical and Electrical Installation
-33-

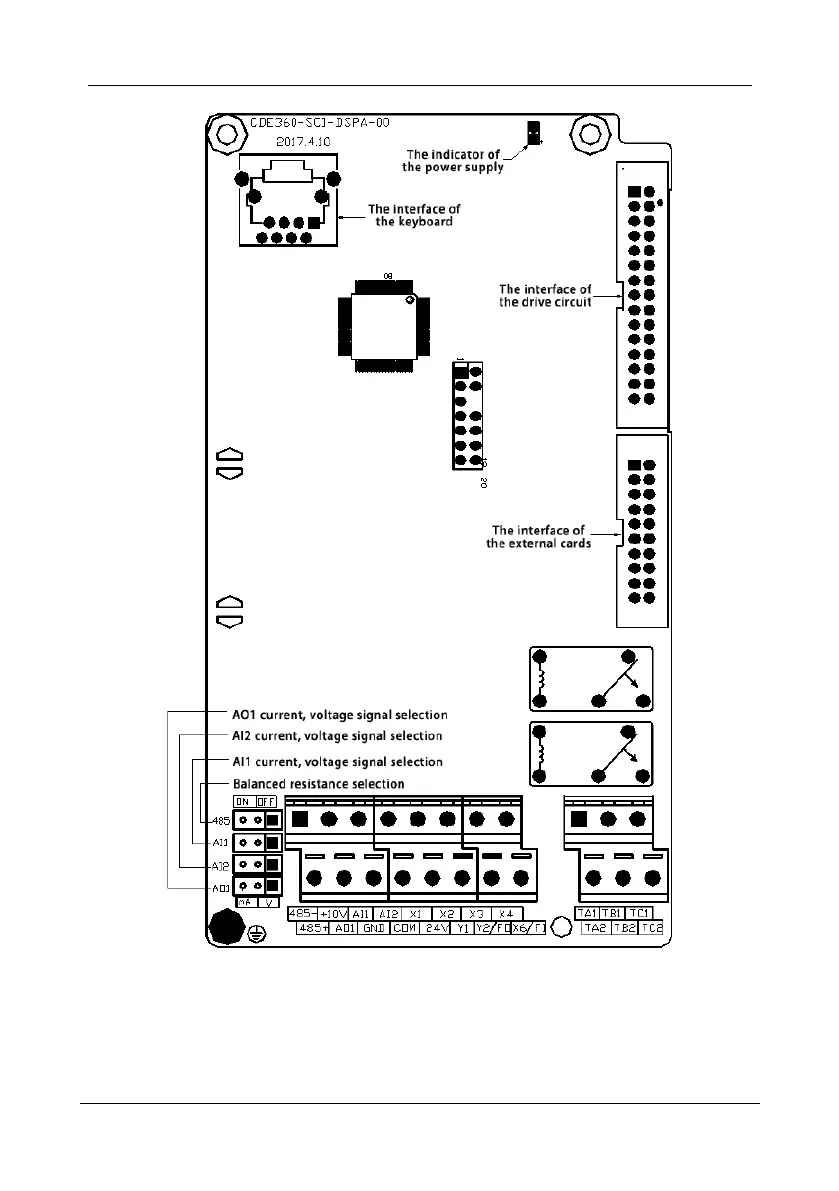

Figure 3- 15 Terminal arrangement of the control board
Noted：AI1、AO1 jumper is‘V’（voltage），AI2 jumper is‘mA’（current）. 485 balance resistor jumper
in the off position
