CDE360 Vector Control AC Drive Chapter 6 Parameters Description
C2.00
Filtered signal
Unfiltered signal

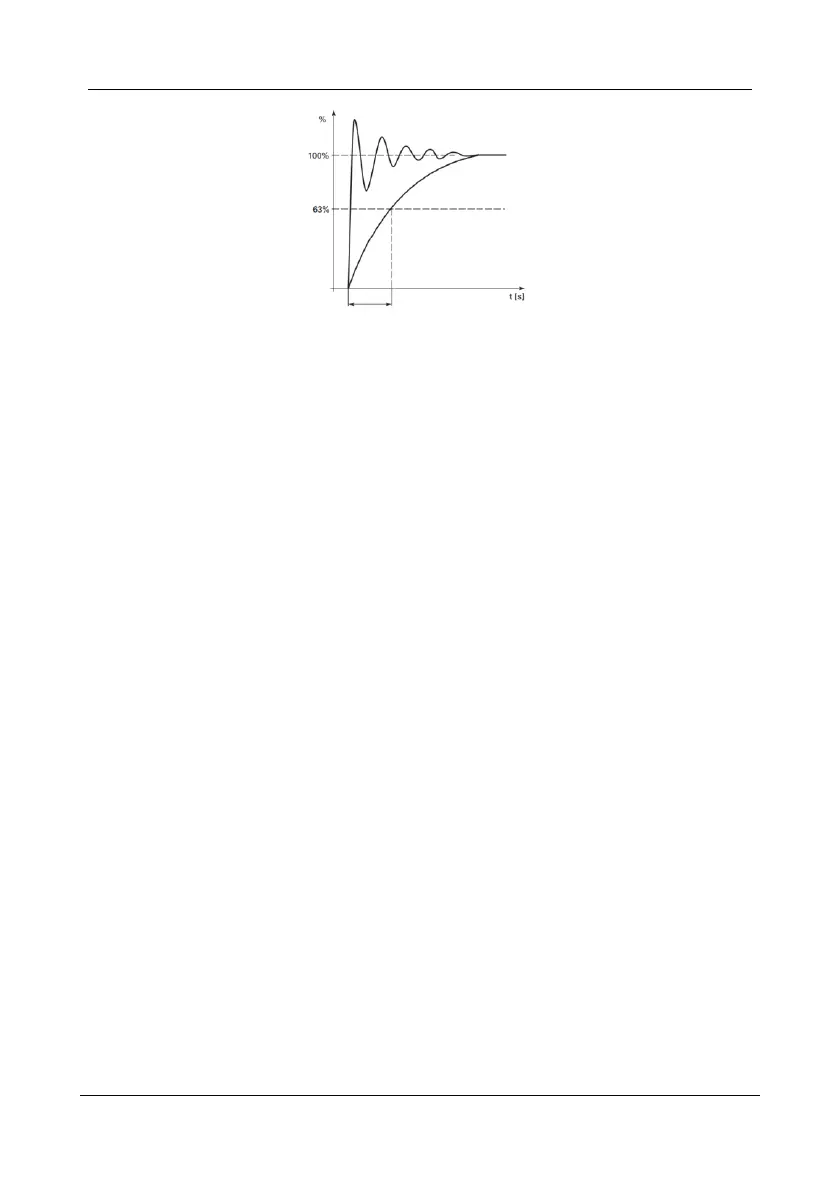

Figure 6- 15 figure of AI signal filter
C2.01
Range: 0.00~10.00
Default: 0.10
AI2 filter time
Unit: Sec
Define the filter time of AI2 signal, to filter processing.
C2.02
Range: 0.00~10.00
Default: 0.10
AI3 filter time
Unit: Sec
Define the filter time of AI3 signal, to filter processing.
C2.03
Range: 111~333
Default: 321
AI curve
selection
Analog input size and the corresponding relationship between the setting
value, can be defined by a specific curve. Enter to this parameter, can do
the curve selection of AI1,AI2 through the LED’s unit and tens bits.
1: AI curve 1Two points, reference to C2.04C2.07
2: AI curve 2Two points, reference to C2.08C2.11
3: AI curve 3Two points, reference to C2.12C2.15
Unit’s digit: AI1 Tens’s digit: AI2 Hundred’s digit: AI3
C2.04
Range: -10.00~C2.06
Default: 0.00
AI curve 1
minimum input
Unit: V
AI curve 1 minimum input signal.
C2.05
Range: -100.0~100.0
Default: 0.0
Corresponding
setting of AI
curve 1 minimum
input
Unit: %
The relationship between AI curve 1 minimum input signal and the
percentage of set value.
C2.06
Range: C2.04~10.00
Default: 10.00
AI curve 1
maximal input
Unit: V
AI curve 1 maximal input signal
