CDE360 Vector Control AC Drive Chapter 6 Parameters Description
d0.25
Range: 0 ~（b0.07）
Default: 0
Voltage digital
setting for V/f
separation
Unit: V
Voltage digital setting for V/f separation.
d0.26
Range: 0.0 ~ 1000.0
Default: 0.0
Voltage ramp
time of V/f
separation
Unit: Sec
This defines the time required for voltage to change from 0 to rated
voltage or change from rated voltage to 0.See Fig6-D3
Output voltage(V)
Motor rated
voltage
t1
t2
time

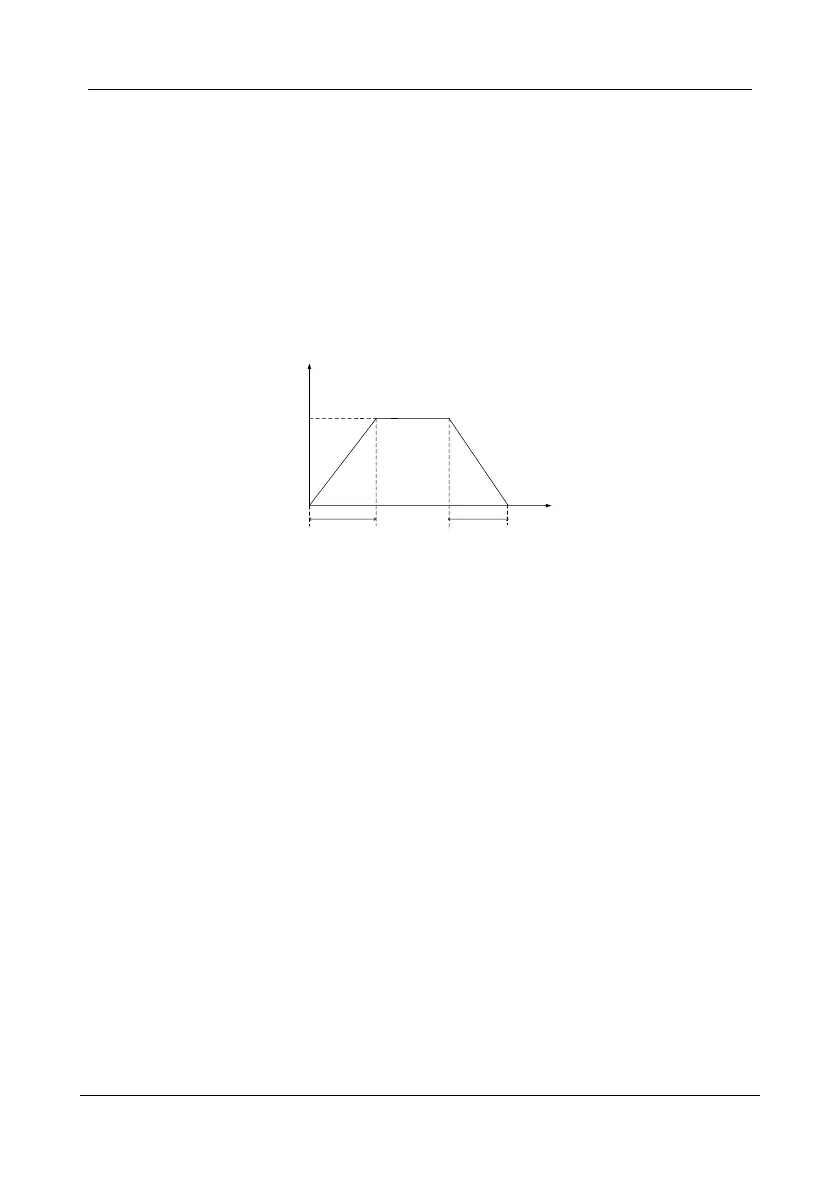

Figure 6- 22
V/F separation Voltage ramp time curve
d0.31
Range: 0 ~ 1
Default: 1
CBC current
control
Unit: 1
0: Disable 1: Enable
Cycle by cycle tripping for current limiting operation.
d0.32
Range: 0.50 ~ 2.20
Default: 2.00
CBC current limit
Unit: 0.01
This defines the CBC current limit point that CBC current control function
is active. 1.00 of the setting corresponds to AC drive rated current.
d0.33
Range: 10 ~ 9999
Default: 500
CBC current
control delay
time
Unit: mSec
This defines the time that CBC current control is allowed to run when it is
active. If CBC current control running exceeds this setting time, a CBC trip
will occurred.
Caution: Increasing d0.33 must decrease d0.32 as the same time.
Otherwise, hardware of AC drive could be damaged with large running
current.
d0.34
Range: 50.0~100.0
Default: 65.0
Energy saving
coefficient
Unit: %
Voltage coefficient of the weak magnetic when output torque below
5%.Set too low may lead to motor stall.
