CDE360 Vector Control AC Drive Chapter 2 Product Information
2.2 CDE360 Designation Rules

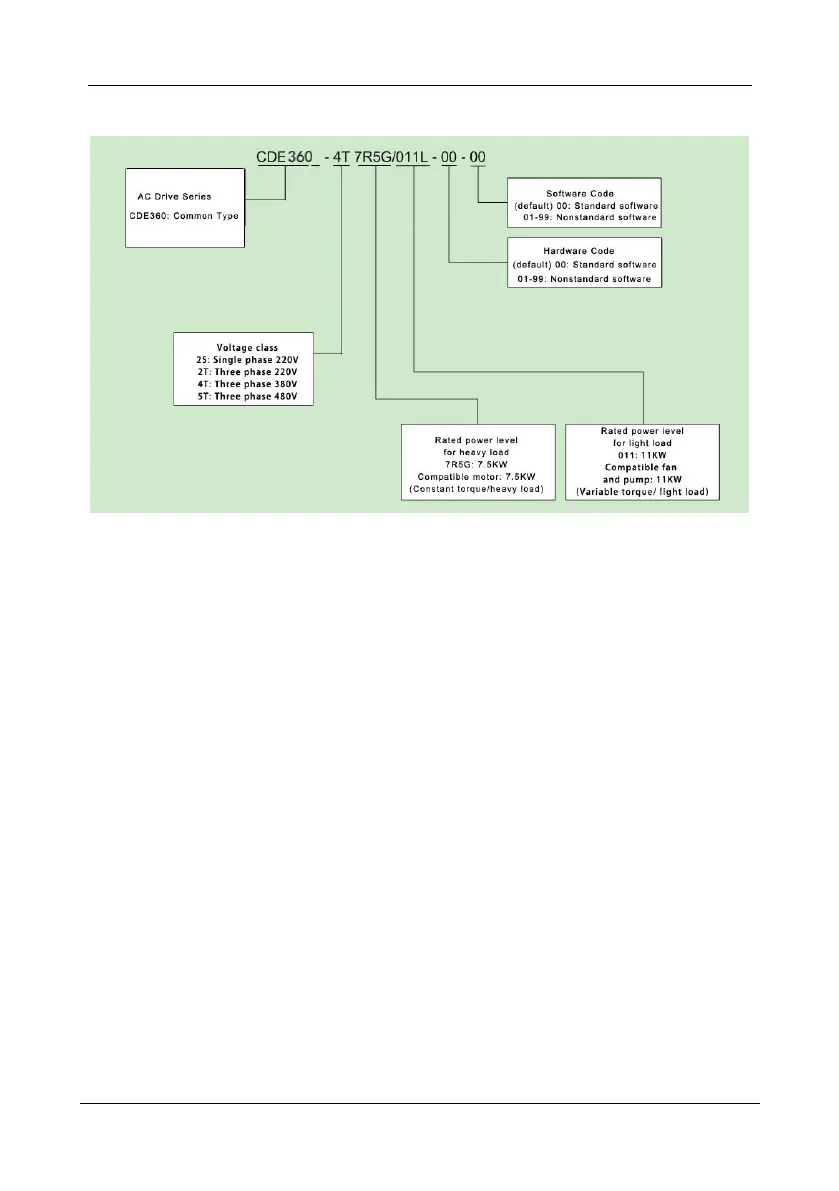

Figure 2- 1 Designation Rules
Remarks:
1) Designation only has the main specification of the AC drive.
2) As for the configuration information of the brake unit and DC reactor, please refer to
Sector 2.4 ‘CDE360 Model and technical parameters’.
3) As for the construction size, please refer to Sector 2.5 ‘CDE360 appearance and
dimensions’.
