CDE360 Vector Control AC Drive Chapter 3 Mechanical and Electrical Installation
-30-

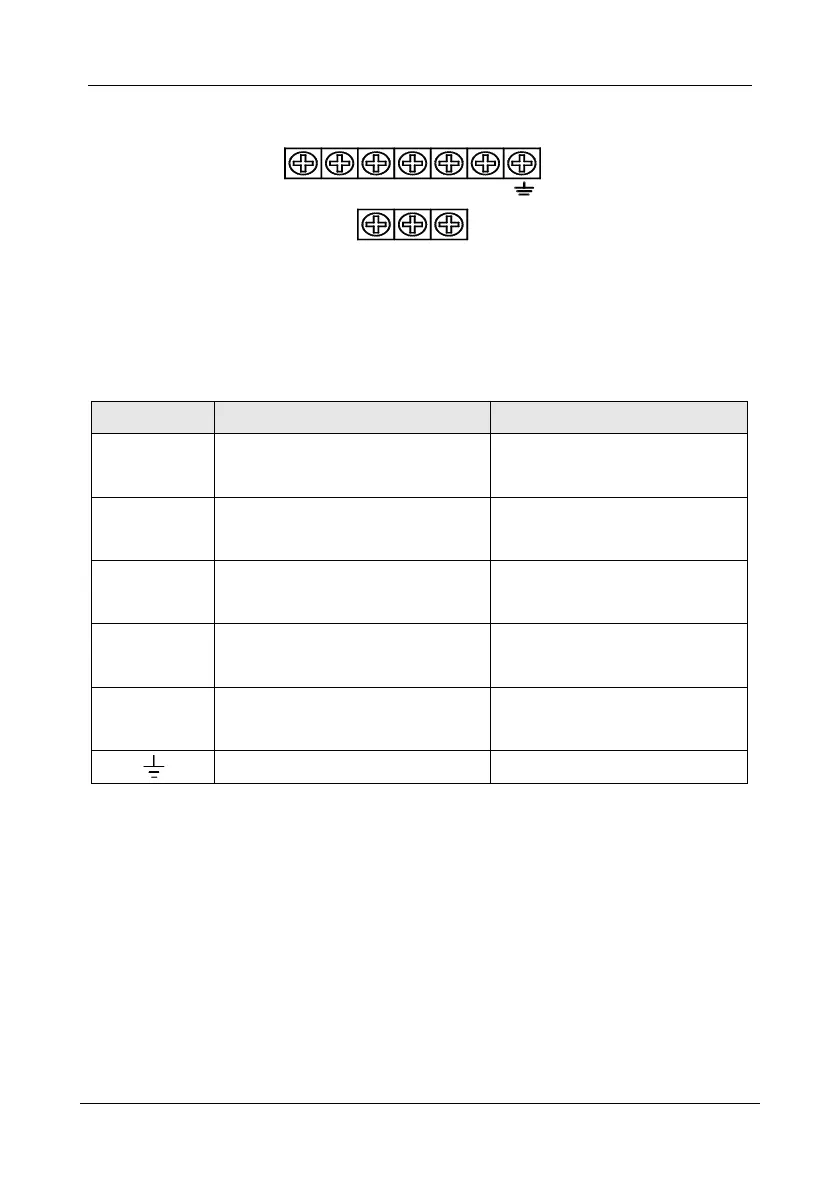

Figure 3-12
CDE360-4T（5T）022G/030L～037G/045L
R
S
T
P-
P1
P+
U V W
Figure 3-13
CDE360-4T（5T）045G/055L～110G/132L
Table 3- 4 Main circuit terminals instruction of the AC drive
Terminal Sign
Name
Description
R,S,T
Three-phase input terminals of
the power supply
Connecting points of the
three-phase AC input power
P+,P-
The positive and negative
terminals of the DC bus
Input point of the common DC bus
P+,PB
Connecting terminals of the
braking resistance
Connecting points of the
braking resistance
P1,P+
Connecting terminals of the
external reactor
Connecting points of external
reactor
U,V,W
Output terminals of the AC drive
Connect the three-phase
motor
Earthing terminal
Earthing terminal
