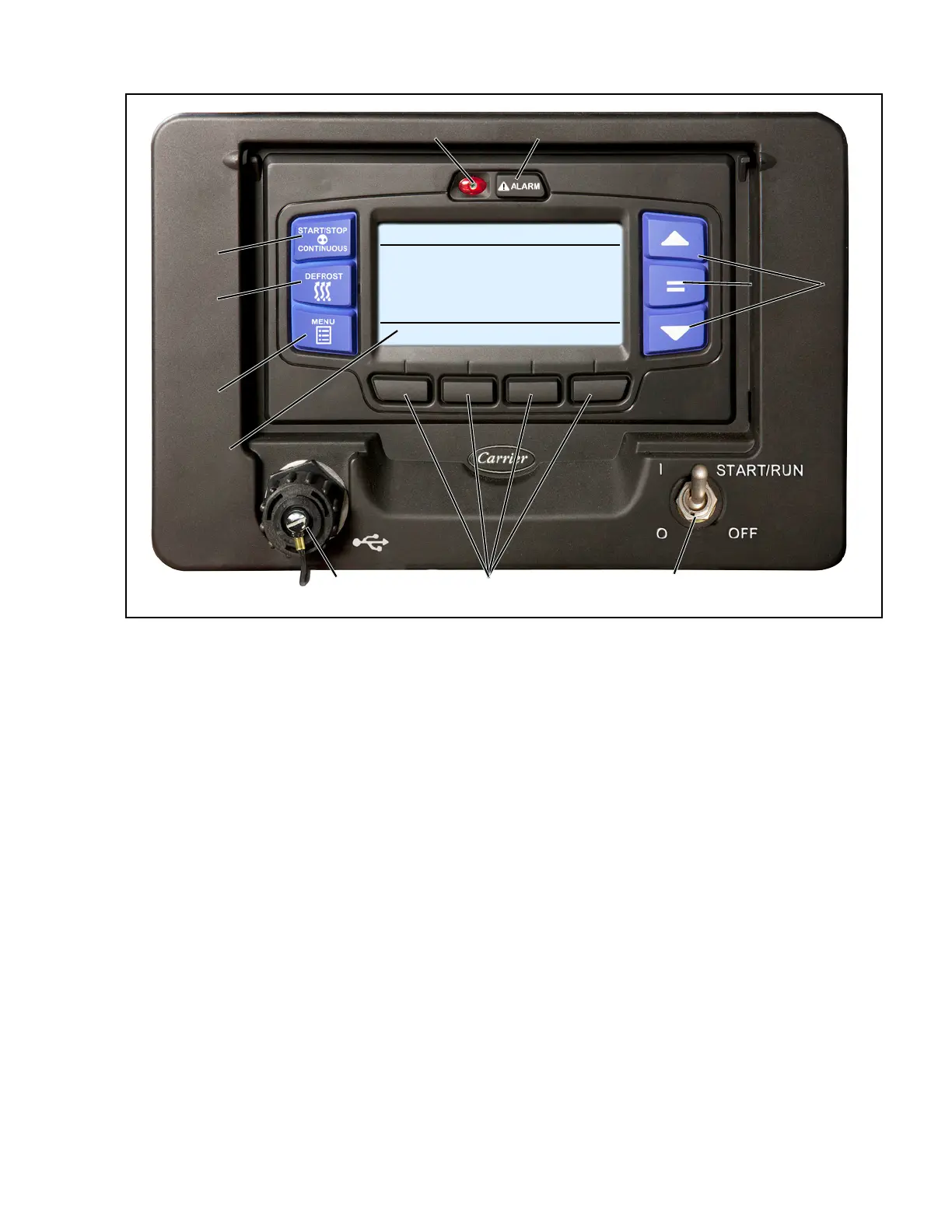

Figure 2.6 Display Module
1. Display Screen
2. MENU key
3. DEFROST key
4. START/STOP - CONTINUOUS Key
5. Alarm LED
6. Alarm Key
7. Arrow Keys
8. “=” (Select) Key
9. START/RUN-OFF Switch
10. Soft Keys
11. USB Interface Port
- - - - -
i. Display Module (DM)
Display
The control system will display the refrigerated compartment temperature on the left and compartment setpoint on
the right. The control system may be configured to display the setpoint in either whole numbers or with tenths of a
degree. The temperature description will be followed by a letter indicating the information is in degrees Fahrenheit
(F) or degrees Centigrade (C).
Message Center
Messages generated by the control system are displayed in the MessageCenter. Details of the messages are
described in Section 6.
START/RUN-OFF Switch (SROS) - When placed in the START/RUN position, this switch provides power to start
the unit. The main microprocessor performs a self-test. Then setpoint and compartment temperatures are
displayed. To stop the unit, place the SROS in the OFF position.
4
3
2
11 10 9
7
8
6
5
1
START/STOP ELECTRIC COOL
BOX TEMPERATURE
o
F SETPOINT
o
F
STATUS OK
34.3
34
