1-GENERALINFORMATION

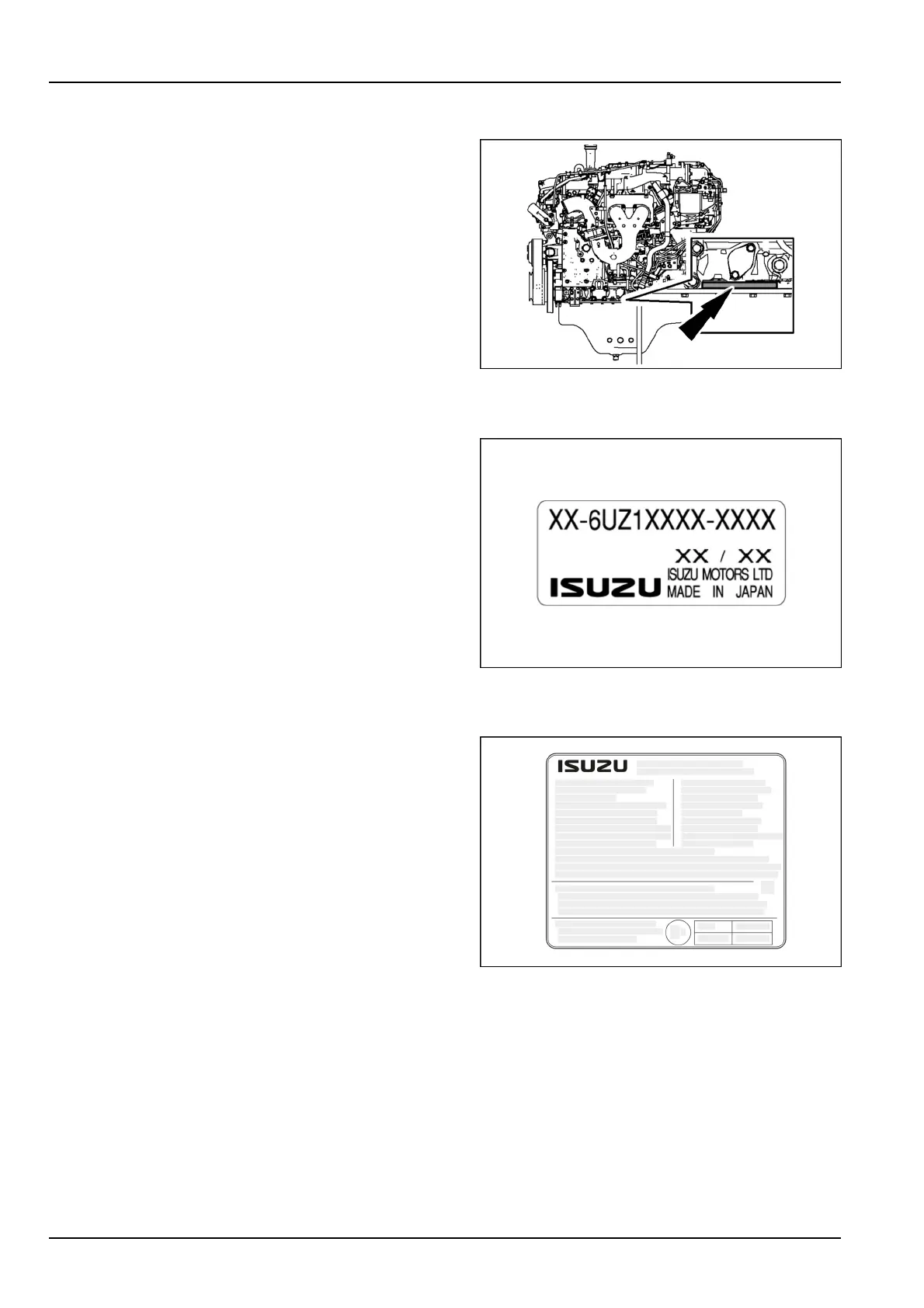

Engine

Manufacturerandmodel:ISUZUAQ-6UZ1X

Serialnumber:

SMIL15CEXY125AA4

IDlabel

TheengineIDlabelislocatedonthecylinderheadcover.

SMIL19CEX1983AA5

Emissiondecal

Theemissiondecalisafxedonthecylinderheadcover.

Itdescribesimportantdetailsforusingtheengine.Make

suretoreadbeforeusingtheengine.

SMIL14CEX1607AA6

1-6
