Case CX490D - Page 297

8-SPECIFICATIONS
CX500DRTC
SMIL20CEX1324FA4

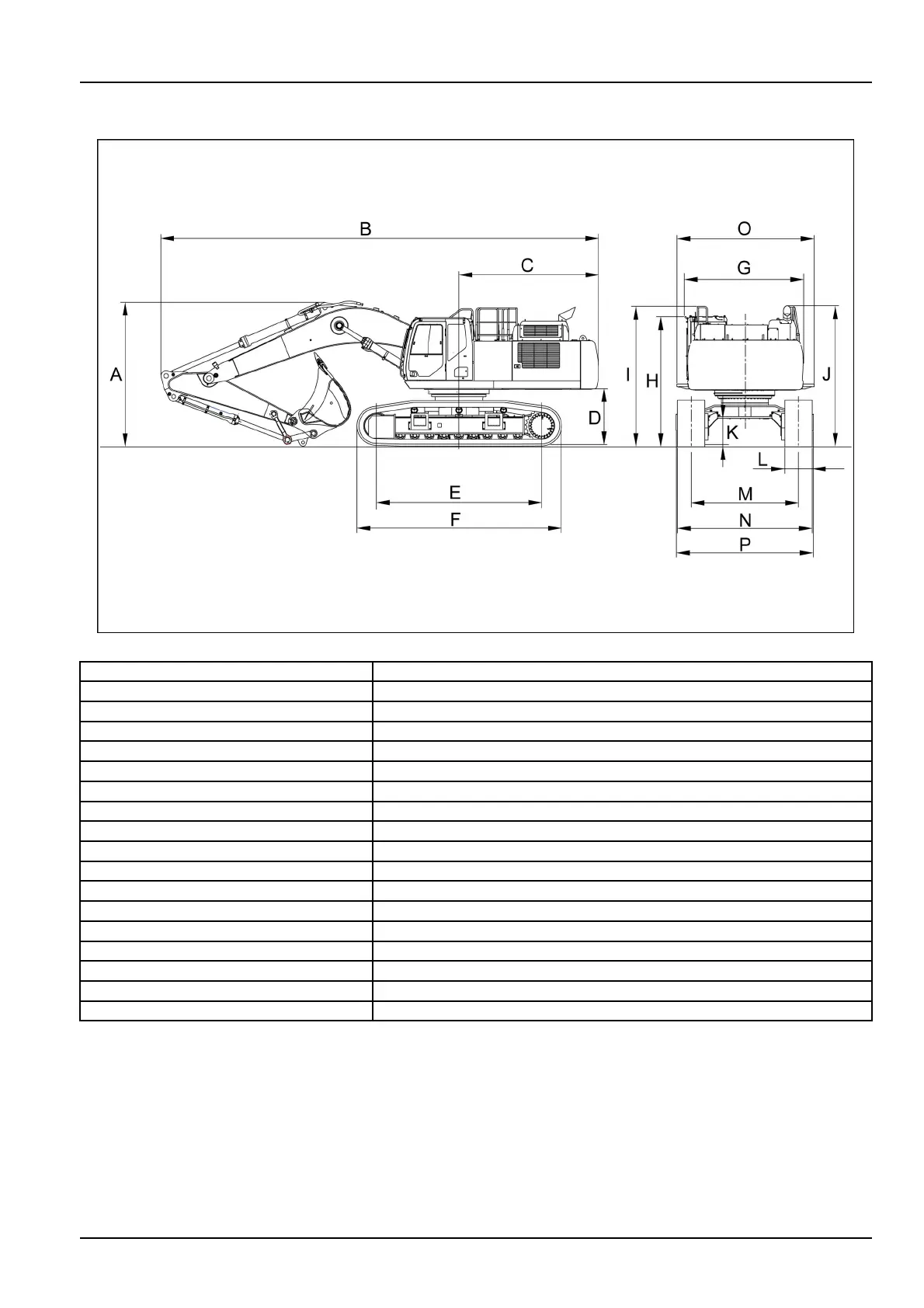

Arm
2.53m(99.61in)
(A)3.84m(151.18in)
(B)11.66m(459.06in)
(C)3.72m(146.46in)
(D)(withoutgrousers)1.48m(58.27in)
(E)4.40m(173.23in)
(F)5.45m(214.57in)
(G)3.06m(120.47in)
(H)(*)3.47m(136.61in)
(I)3.70m(145.67in)
(J)3.70m(145.67in)
(K)(withoutgrousers)0.72m(28.35in)
(L)(standardtrack)0.90m(35.43in)
(M)2.89m(113.78in)/2.39m(94.09in)(Expanded/Retracted)
(N)750mm(30in)track3.64m(143.31in)/3.14m(123.62in)(Expanded/Retracted)
(N)900mm(35in)track3.79m(149.21in)/3.29m(129.53in)(Expanded/Retracted)
(O)Sidecatwalks(Optional)3.59m(141.34in)
(P)3.70m(145.67in)/3.20m(125.98in)(Expanded/Retracted)
Boomlength:6.55m(257.87in)
NOTE:(*)3.55m(139.76in)ifFOPSlevel2isinstalled.
NOTICE:The2.53m(99.61in)armisasuper-shorttypearm.Thedimension(A)andthedimension(B)ofthe
referencepositionshowningurearemeasuredwiththearmfullyclosedandthebucketnotfullycurled.Donotfully
curlthebucketinordernottohittheboom.
8-9
