3-CONTROLSANDINSTRUMENTS

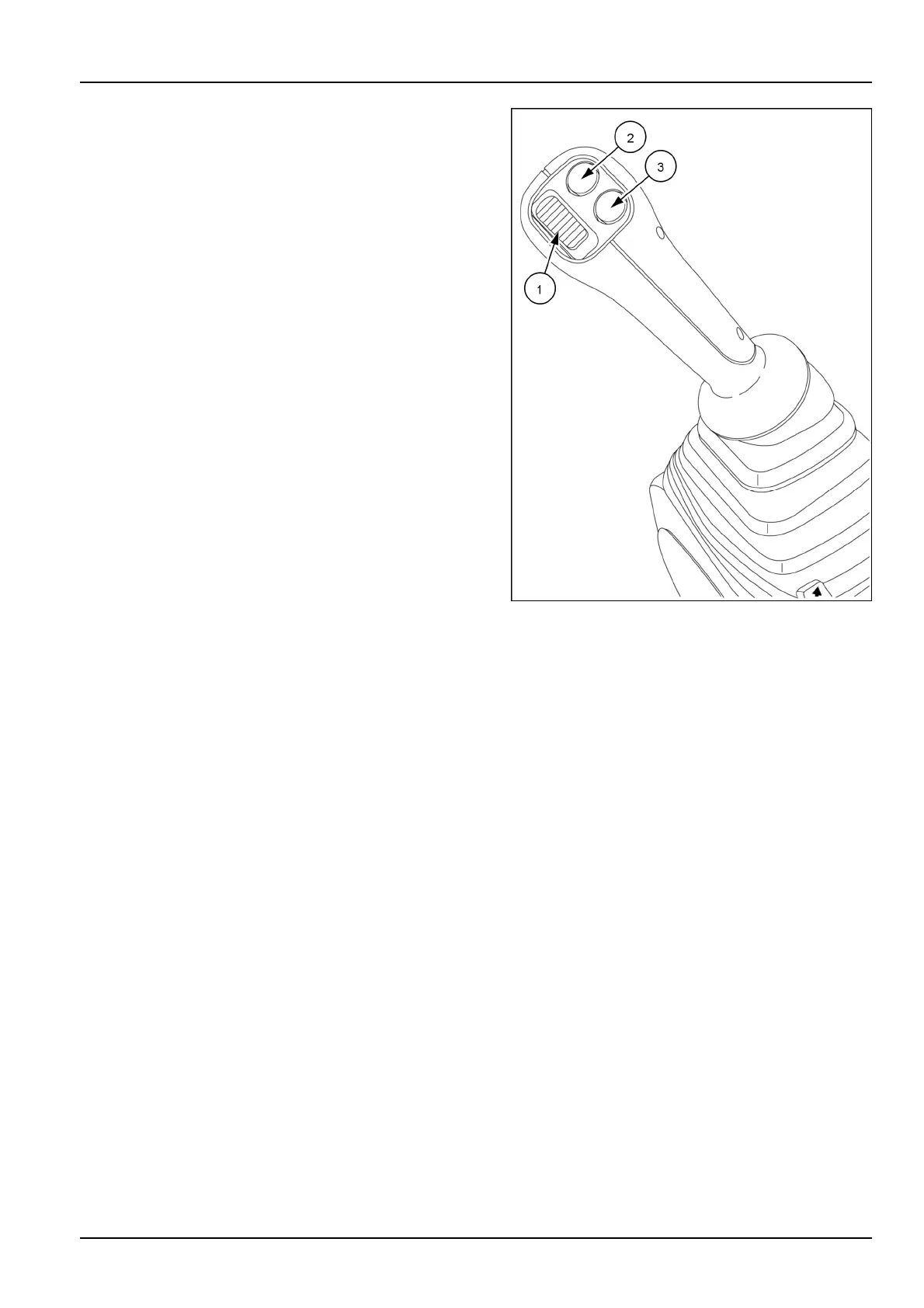

Whenthemachineisequippedwithanauxiliaryhigh-ow

hydrauliccircuit,theright-handcontrolleverincludes:

1.Proportionalswitchtooperatedouble-actinghydraulic

attachments.

2.ON/OFFbuttontooperatesingle-actinghydraulicat-

tachments.

3.Enginelowidlespeedbutton.

NOTICE:Donotoperatecontrolsforauxiliaryhigh-

owhydrauliccircuitwithoutsettinganyowrate/pres-

surecombination.Thecircuitwouldworkbydefaultat

maximumpressure,andthismayleadtoseveredam-

agestotheattachment.Forthesettingprocedureof

auxiliaryhigh-owhydrauliccircuit,refertoChapter9.

SMIL15CEXY838BA2

3-23
