Cellwatch Frontier System Installation & User Manual
Section I – Installation Guide-54

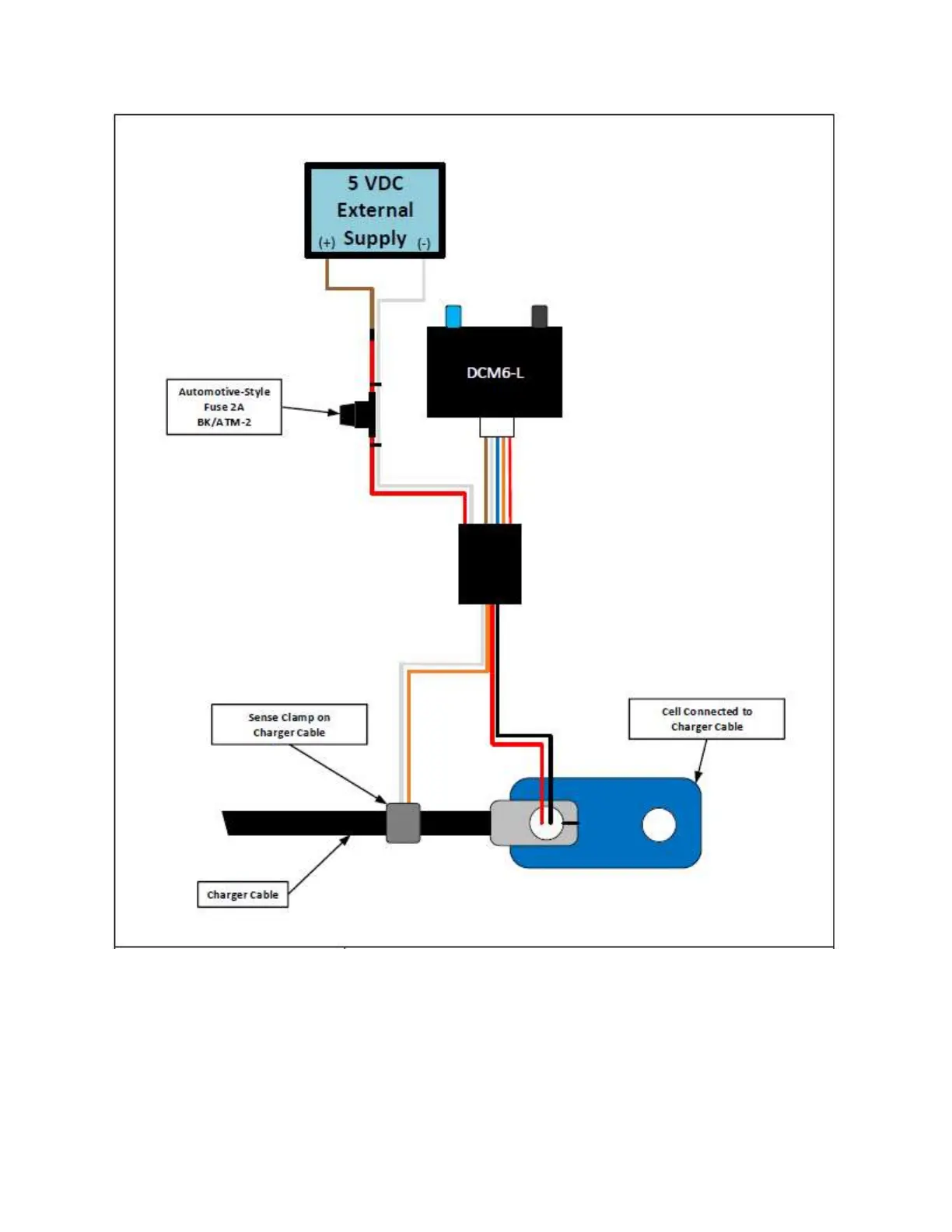

Example wiring to monitor DCM6-L-CC connections to Charger Cable.
Monitoring cell/post temperatures
Individual cell or negative post temperatures can be monitored with the use of the DCM 5T or DCM 6T.
The temperature probe is integrated into the wiring leads of the DCM. The Frontier interface will
recognize that the DCM connected is equipped with this feature automatically and will display the
readings on the homepage.
