88 Functional Description CG Drives & Automation, 01-5326-01r5
11.2 4-line LCD display
See chapter “10.2 Control panel with 4-line display”
on page 75 for detailed information
Menu [100] Preferred view
This menu is displayed at every power-up. During
operation, the menu [100] will automatically be displayed
when the keyboard is not operated for 5 minutes.
Menu “[100] Preferred View” displays the settings made in
menu “[110], 1st line”, “[120], 2nd line” and
“[130], 3rd line”.
Extended signal monitoring
If you hold the key when in menu [100] following
window will appear, as long as the key is pressed.
Here First, Second and Third line are shown as selected in
menu [100].
Then additional information will be displayed, selected in
the menus [140], [150] and [160] according to below.
Use menu “[170] View mode” to select active type of
menu [100] presentation, select if “Normal 100” or
“Always 100+” Extended signal monitoring” shall be
shown at power-up. A third choice is menu
“Normal 100wo” = menu [100] without explaining
text at second and third line.

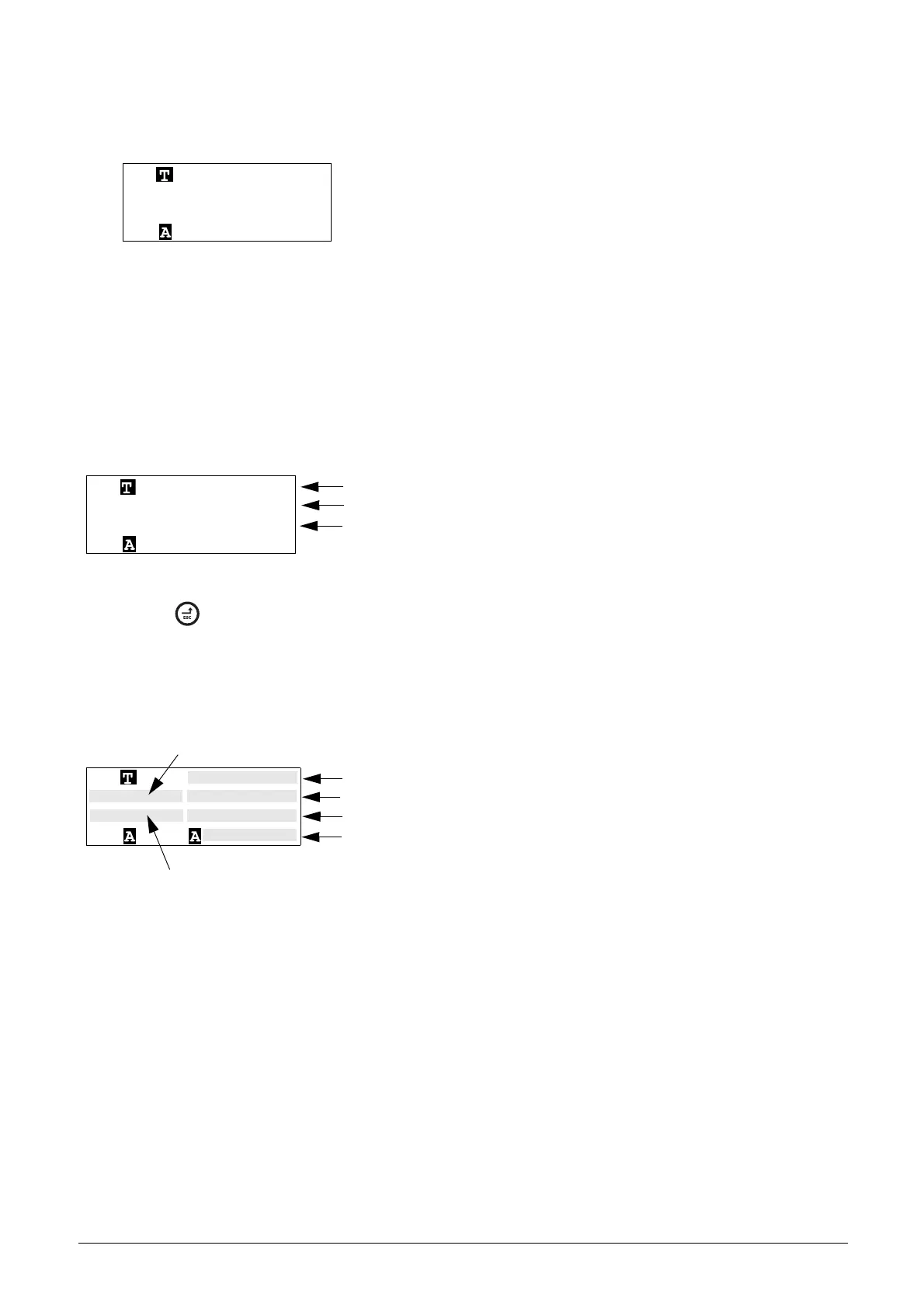

100 1240rpm
Torque 0% 0.0Nm
Current 123.3A
Sby Key/Key
100 1240rpm
Torque 0% 0.0Nm
Current 123.3A
Sby Key/Key
First line - set in Menu[110].
Second line - set in Menu[120]
Third line - set in Menu[130]
100 0rpm
3.9V 0.0A
0.0°C 0.0Hz
Sby /Rem/Rem/--
First line - set in Menu[110].
Second line - set in Menu[120].
Third line - set in Menu[130].
Fourth line - set in Menu[140]
Sixth line - set in Menu[160]
Fifth line - set in Menu[150].
