226 Options CG Drives & Automation, 01-5326-01r5

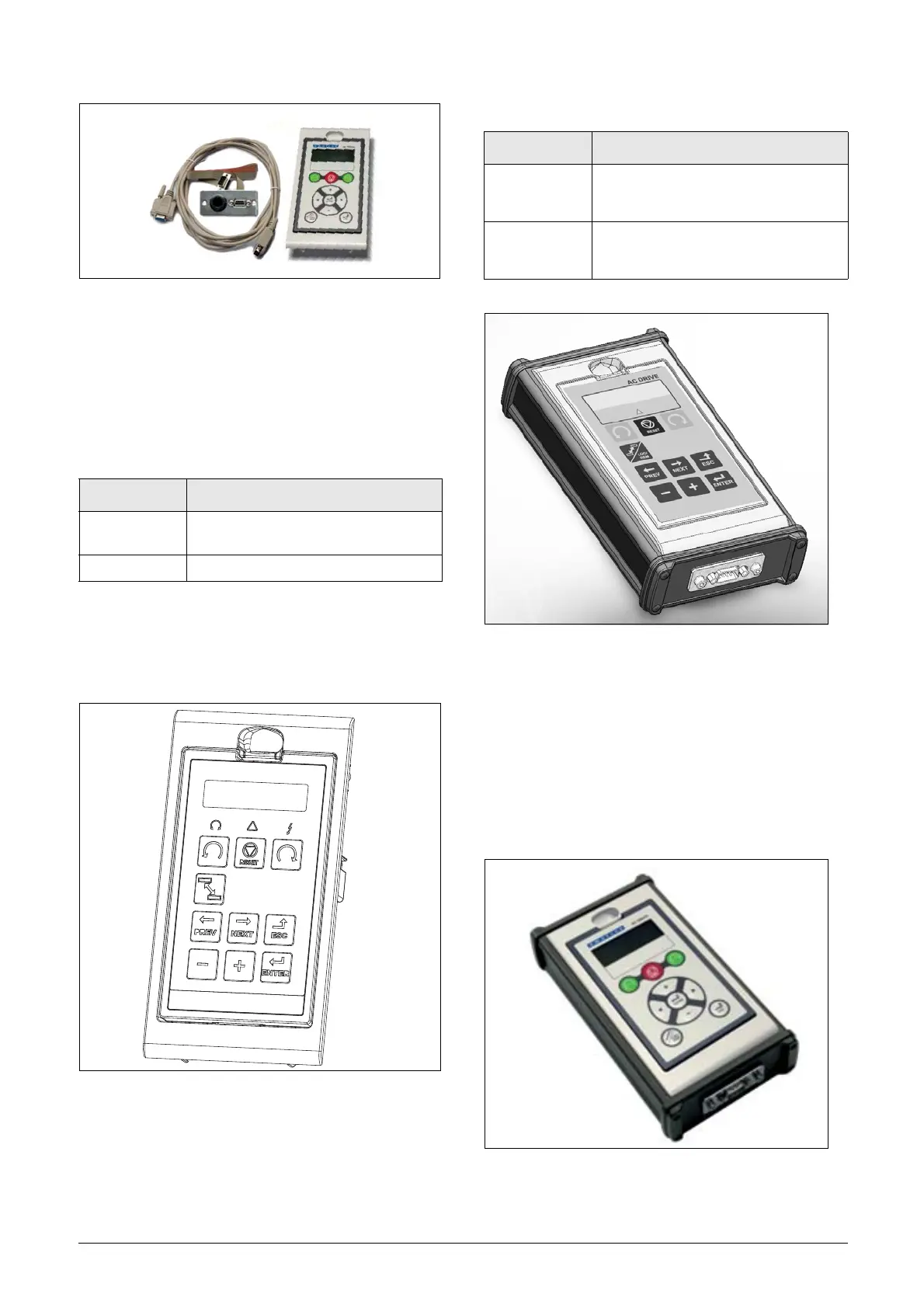

Fig. 153 Control panel kit, including control panel.
External control panel IP54 suitable for mounting on a
panel door. This option is to be used in combination with
an AC drive module ordered with a blank control panel.
13.3 External control panel
options (2-line)
Mounting cassette, blank panel and straight RS232-cable are
available as options for the control panel. These options may
be useful, for example for mounting a control panel in a
cabinet door.
Fig. 154 Control panel in mounting cassette
13.4
Handheld Control Panel 2.0
Fig. 155 Handheld Control Panel 2.0 (2-line PPU).
The Handheld Control Panel - HCP 2.0 is a complete
control panel, easy to connect to the AC drive, for
temporary use when e.g. commissioning, servicing and so
on.
The HCP has full functionality including memory. It is
possible to set parameters, view signals, actual values, fault
logger information and so on. It is also possible to use the
memory to copy all data (such as parameter set data and
motor data) from one AC drive to the HCP and then load
this data to other AC drives.
Fig. 156 Handheld Control Panel 2.0 (4-line PPU).
Part number Description
01-3957-00
Panel kit complete including panel (2-line
PPU)
01-3957-01 Panel kit complete including blank panel
Part number Description
01-5039-00
Handheld Control Panel 2.0 complete for
FDU/VFX2.0 or CDU/CDX 2.0
2-line PPU
01-5039-30
Handheld Control Panel 2.0 complete for
FDU/VFX2.0 or CDU/CDX 2.0
4-line PPU
