11.5.5 Speed [340]
Menu with all parameters for settings regarding to speeds,
such as Min/Max speeds, Jog speeds, Skip speeds.
Minimum Speed [341]
Sets the minimum speed. The minimum speed will operate
as an absolute lower limit. Used to ensure the motor does
not run below a certain speed and to maintain a certain
performance.
Communication information
Stop/Sleep when less than
Minimum Speed [342]
With this function it is possible to put the AC drive in “sleep
mode” when it is running at minimum speed for the length
of time set in menu “Stp<MinSpd [342]”. The AC drive will
go into sleep mode after programmed time.
When the reference signal or PID Process controller output
value (if PID Process controller is used) raises the required
speed value above the min speed value, the AC drive will
automatically wake up and ramp up to the required speed.

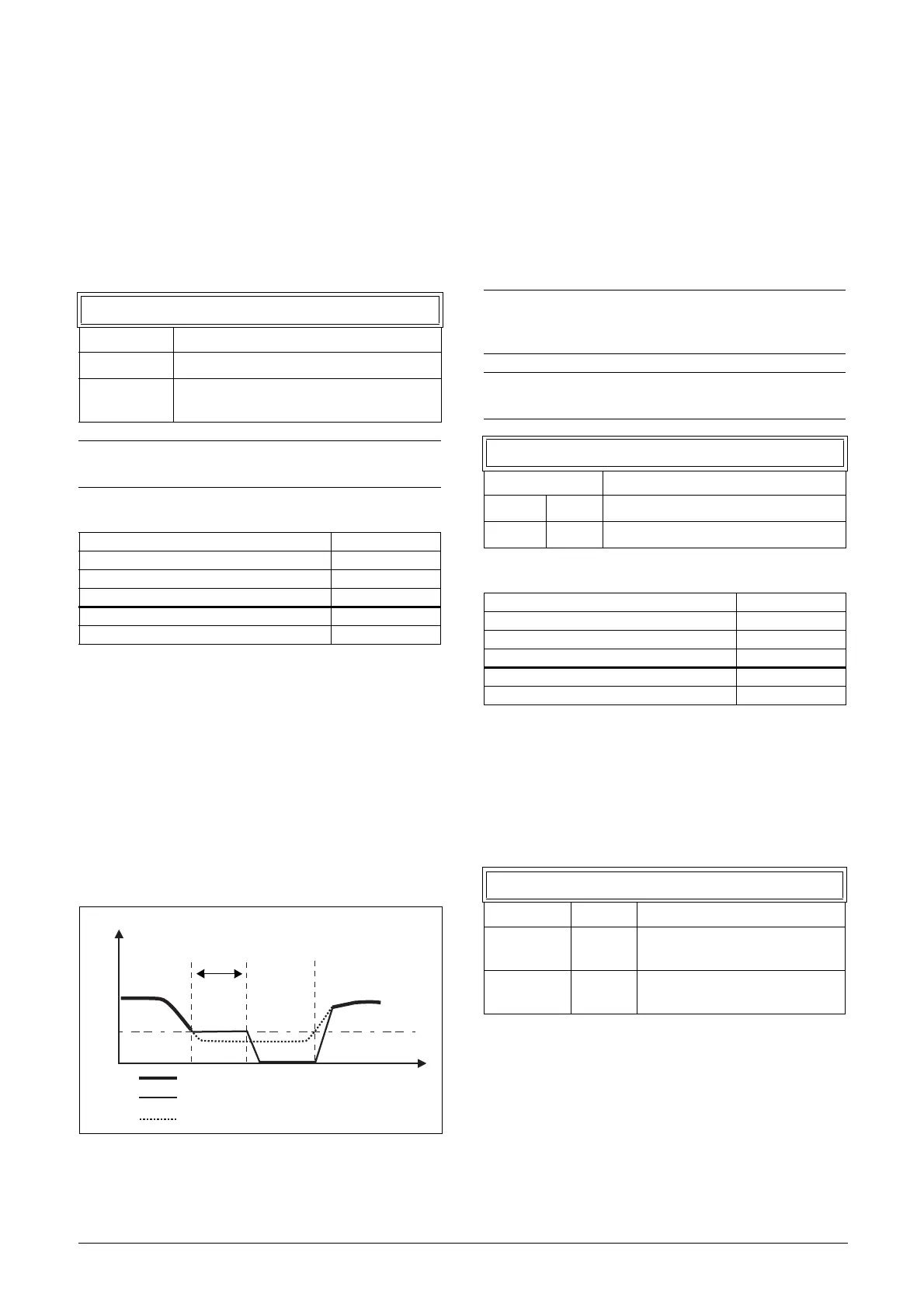

Fig. 105
If you want to use this function when having “process
reference” signal via an analogue input, you need to make
sure that the concerning analogue input is set up correct,
meaning that AnIn Advanced parameter "AnIn1 FcMin
[5134]" should be set from "Min" (=default) to
"User defined" and “AnIn1 VaMin[5135]” set to a value less
than “Min Speed [341]” to make it possible that the
analogue input reference can go below the "Min Speed" level
to activate the “Sleep mode”. This applies when PID Process
controller is not used
.
Communication information
Maximum Speed [343]
Sets the maximum speed. The maximum speed will operate
as an absolute maximum limit. This parameter is used to
prevent damage due to high speed.
The synchronous speed (Sync-spd) is determined by the
parameter motor speed [225].
341 Min Speed
Default: 0 rpm
Range: 0 - Max Speed
Dependent
on:
Set/View ref [310]
NOTE: A lower speed value than the set minimum
speed can be shown in the display due to motor slip.
Modbus Instance no/DeviceNet no: 43121
Profibus slot/index 169/25
EtherCAT and CANopen index (hex) 4c31
Profinet IO index 19505
Fieldbus format Int, 1=1 rpm
Modbus format Int, 1=1 rpm
Min
[342]
speed
Speed
Time
= Speed + Reference
= Reference
= Speed
[341]
NOTE: If [381] PID Process controller is used, then
the PID sleep functionality [386] - [389] is
recommended instead of [342]. See further page 144.
NOTE: Menu [386] has higher priority than menu
[342].
342 Stp<MinSpd
Default: Off
Off 0 Off
1–3600 1–3600 1–3600 s
Modbus Instance no/DeviceNet no: 43122
Profibus slot/index 169/26
EtherCAT and CANopen index (hex) 4c32
Profinet IO index 19506
Fieldbus format Long, 1=0.01 s
Modbus format EInt
343 Max Speed
Default: Sync Speed
Sync Speed 0
Synchronous speed, i.e. no load
speed, at nominal frequency.
1-24000rpm 1- 24000
Min Speed - 4 x Motor Sync
Speed
