CG Emotron VFX Series User Manual

196 CG Drives & Automation, 01-5326-01r5
Z Comp 2 [633]
Selects the second comparator for the logic Z function.
Communication information
Z Operator 2 [634]
Selects the second operator for the logic Z function.
Communication information
Z Comp 3 [635]
Selects the third comparator for the logic Z function.
Communication information

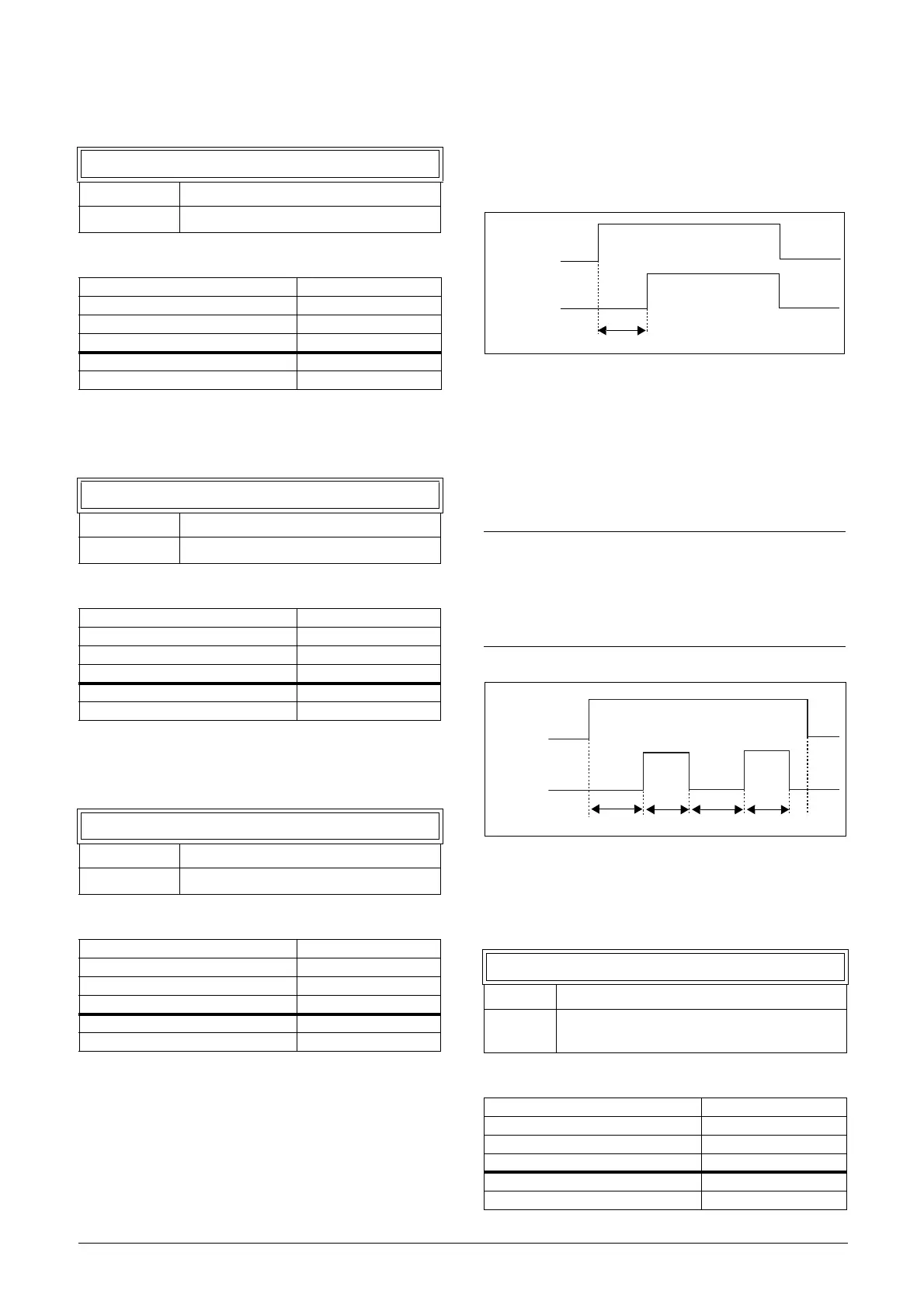

11.8.4 Timer1 [640]
The Timer functions can be used as a delay timer or as an
interval with separate On and Off times (alternate mode). In
delay mode, the output signal T1Q becomes high if the set
delay time is expired. See Fig. 139.
Fig. 139
In alternate mode, the output signal T1Q will switch
automatically from high to low etc. according to the set
interval times “Timer1 T1” and “Timer 1 T2”. See Fig. 140.
The output signal can be programmed to the digital or relay
outputs used in logic functions [620] and [630], or as a
virtual connection source [560].
Fig. 140
Timer 1 Trig [641]
Selection of the Timer input trigger signal.
Communication information
633 Z Comp 2
Default: !A2
Selection: Same as menu [621]
Modbus Instance no/DeviceNet no: 43423
Profibus slot/index 170/72
EtherCAT and CANopen index (hex) 4d5f
Profinet IO index 19807
Fieldbus format UInt
Modbus format UInt
634 Z Operator 2
Default: &
Selection: Same as menu [624]
Modbus Instance no/DeviceNet no: 43424
Profibus slot/index 170/73
EtherCAT and CANopen index (hex) 4d60
Profinet IO index 19808
Fieldbus format UInt
Modbus format UInt
635 Z Comp 3
Default: CD1
Selection: Same as menu [621]
Modbus Instance no/DeviceNet no: 43425
Profibus slot/index 170/74
EtherCAT and CANopen index (hex) 4d61
Profinet IO index 19809
Fieldbus format UInt
Modbus format UInt
NOTE: The actual timers are common for all
parameter sets. If the actual set is changed, the timer
functionality [641] to [645] will change according set
settings but the timer value will stay unchanged. So
initialization of the timer might differ for a set change
compared to normal triggering of a timer.
641 Timer1 Trig
Default: Off
Selection:
Same selections as Digital Output 1 menu
[541].
Modbus Instance no/DeviceNet no: 43431
Profibus slot/index 170/80
EtherCAT and CANopen index (hex) 4d67
Profinet IO index 19815
Fieldbus format UInt
Modbus format UInt
Timer1 Trig
T1Q
Timer1 delay
Timer1 T2
Timer1 T1
Timer1 Trig
T1Q
Timer1 T2
Timer1 T1
