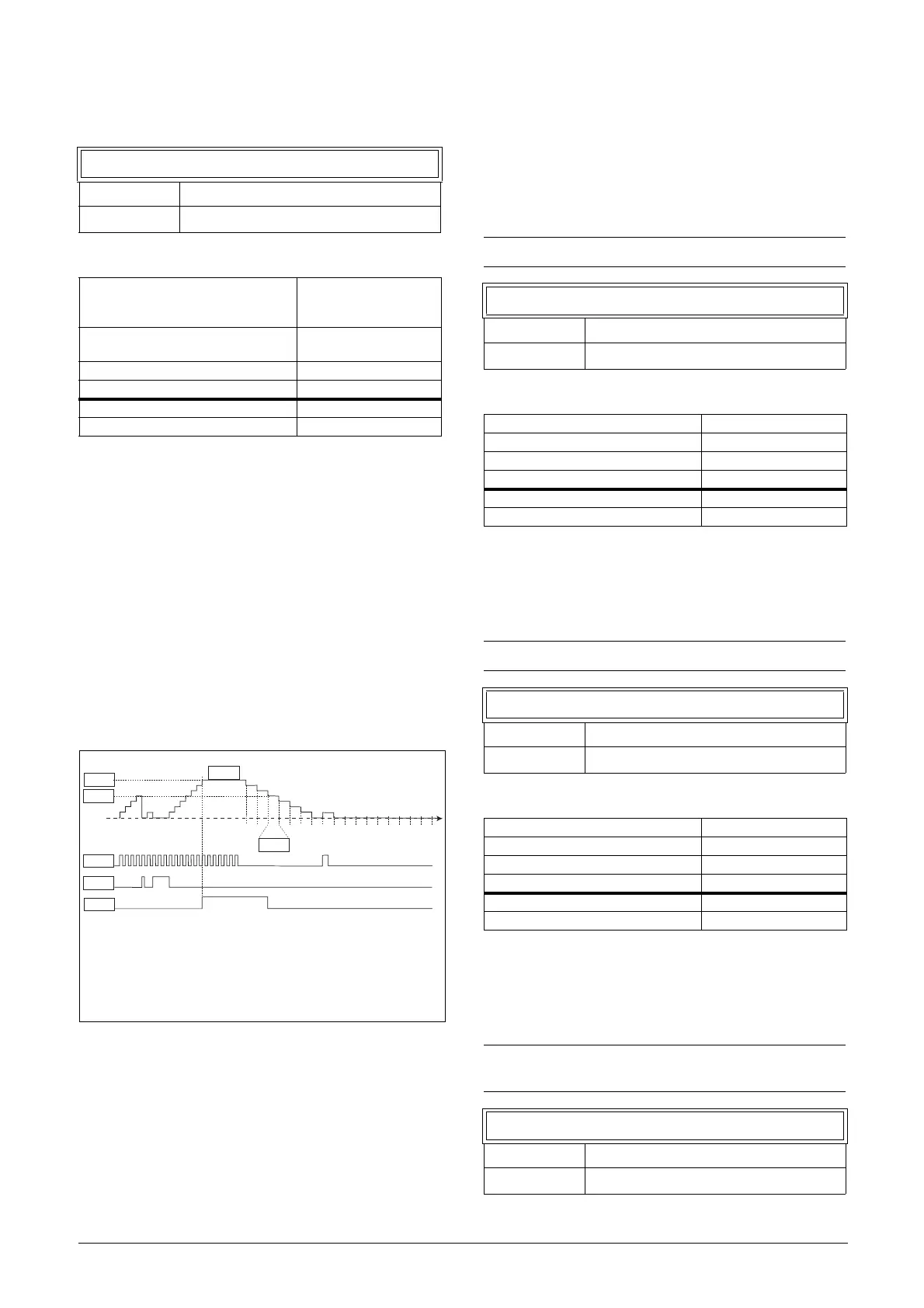

CG Emotron VFX Series User Manual

CG Drives & Automation,01-5326-01r5 199
Timer 2 Value [659]
Timer 2 Value shows actual value of the timer.
Communication information
11.8.6 Counters [660]
Counter functions for counting pulses and signalling on
digital output when counter reaches specified high and low
limit levels.
The counter is counting up on positive flanks on the
triggered signal, the counter is cleared as long as the Reset
signal is active.
The counter can be automatically decremented with
specified decrement time, if no new trigger signal has
occurred within the decrement time.
The counter value is clamped to the high limit value and the
digital output function (C1Q or C2Q) is active when
counter value equals high limit value.
See Fig. 141 for more information of the counters.
Fig. 141 Counters, operating principle.
Counter 1 [661]
Counter 1 parameter group.
Counter 1 Trigger [6611]
Selection of the digital output signal used as trigger signal
for counter 1. Counter 1 is incremented by 1 on every
positive flank on the trigger signal.
Communication information
Counter 1 Reset [6612]
Selection of the digital signal used as reset signal for counter
1. Counter 1 is cleared to 0 and held to 0 as long as reset
input is active (high).
Communication information
Counter 1 High value [6613]
Sets counter 1 high limit value. Counter 1 value is clamped
to selected high limit value and the counter 1 output (C1Q)
is active (high) when the counter value equals the high value.
659 Timer2 Value
Default: 0:00:00, hr:min:sec
Range: 0:00:00–9:59:59
Modbus Instance no/DeviceNet no:
42924 hours
42925 minutes
42926 seconds
Profibus slot/index
168/83, 168/84,
168/84
EtherCAT and CANopen index (hex) 4b6c, 4b6d, 4b6f
Profinet IO index 19308, 19309, 19310
Fieldbus format UInt, 1=1 h/m/s
Modbus format UInt, 1=1 h/m/s
6619
6615
6614
6611
6612
541
541 = Digital Out 1 function
6611= Counter 1 trigger
6612= Counter 1 reset
6613= Counter 1 High value
6614= Counter 1 Low value
6615= Counter 1 Decrement timer
6619= Counter 1 value
6613
NOTE: Maximum counting frequency is 8 Hz.
6611 C1 Trig
Default: Off
Selection: Same selections as “Digital Out 1 [541]”.
Modbus Instance no/DeviceNet no: 43571
Profibus slot/index 170/220
EtherCAT and CANopen index (hex) 4df3
Profinet IO index 19955
Fieldbus format UInt
Modbus format UInt
NOTE: Reset input has top priority.
6612 C1 Reset
Default: Off
Selection: Same selections as “Digital Out 1 [541]”.
Modbus Instance no/DeviceNet no: 43572
Profibus slot/index 170/221
EtherCAT and CANopen index (hex) 4df4
Profinet IO index 19956
Fieldbus format UInt
Modbus format UInt
NOTE: Value 0 means that counter output is always
true (high).
6613 C1 High Val
Default: 0
Range: 0 - 10000
