CS35 2013.04
3.1.13-125 3.1.13-125Electronic Control System - ME7
A. Turn the ignition switch to position "LOCK".
B. Disconnect the battery negative cable.

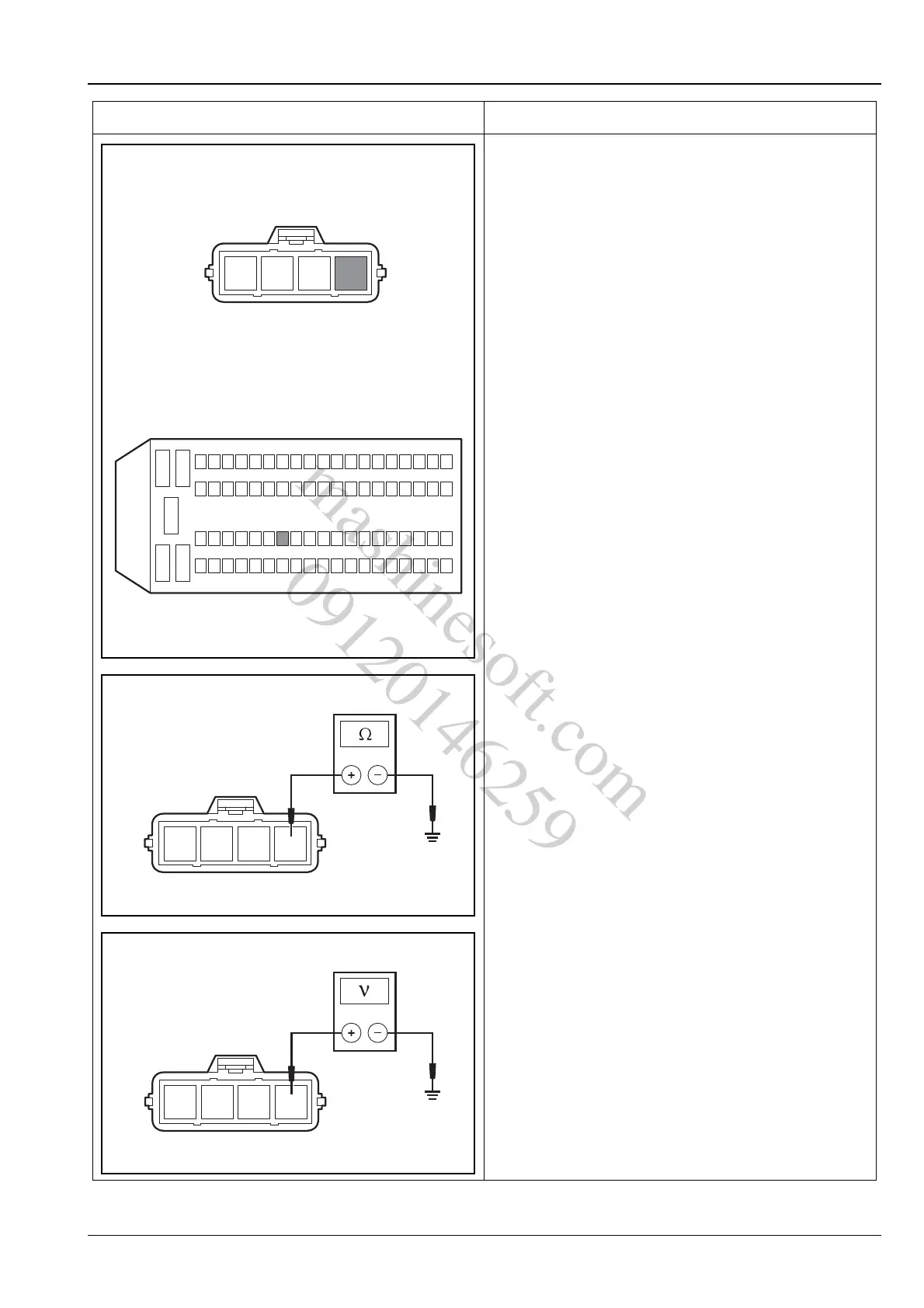

C. Disconnect the intake pressure temperature sensor
wiring harness connector E12.
D. Disconnect the ECM wiring harness connector E01.
E. Measure the resistance between terminal 4 of
intake pressure temperature sensor wiring harness
connector E12 and terminal 37 of ECM wiring
harness connector E01.
Standard Resistance Value: less than 5
F. Measure the resistance value between the terminal
4 of intake pressure temperature sensor wiring
harness connector E12 and reliable grounding.
Standard Resistance Value: 10 M or more
G. Measure the voltage between the terminal 4 of
intake pressure temperature sensor wiring harness
connector E12 and the reliable grounding.
Standard Voltage Value: 0 V
Are the voltage and resistance normal?
Y
Go to step 8.
N
Repair the circuit.
Test Conditions Details/Results/Actions
E01
123 4
E12
37
12
3
45
624
2543
4462
6381
A3113058
123 4
E12
A3113059
123 4
E12
A3113060
