3. Inspect the crankshaft position sensor
A. Turn the ignition switch to position "LOCK".
B. Disconnect the crankshaft position sensor wiring
harness connector E07.

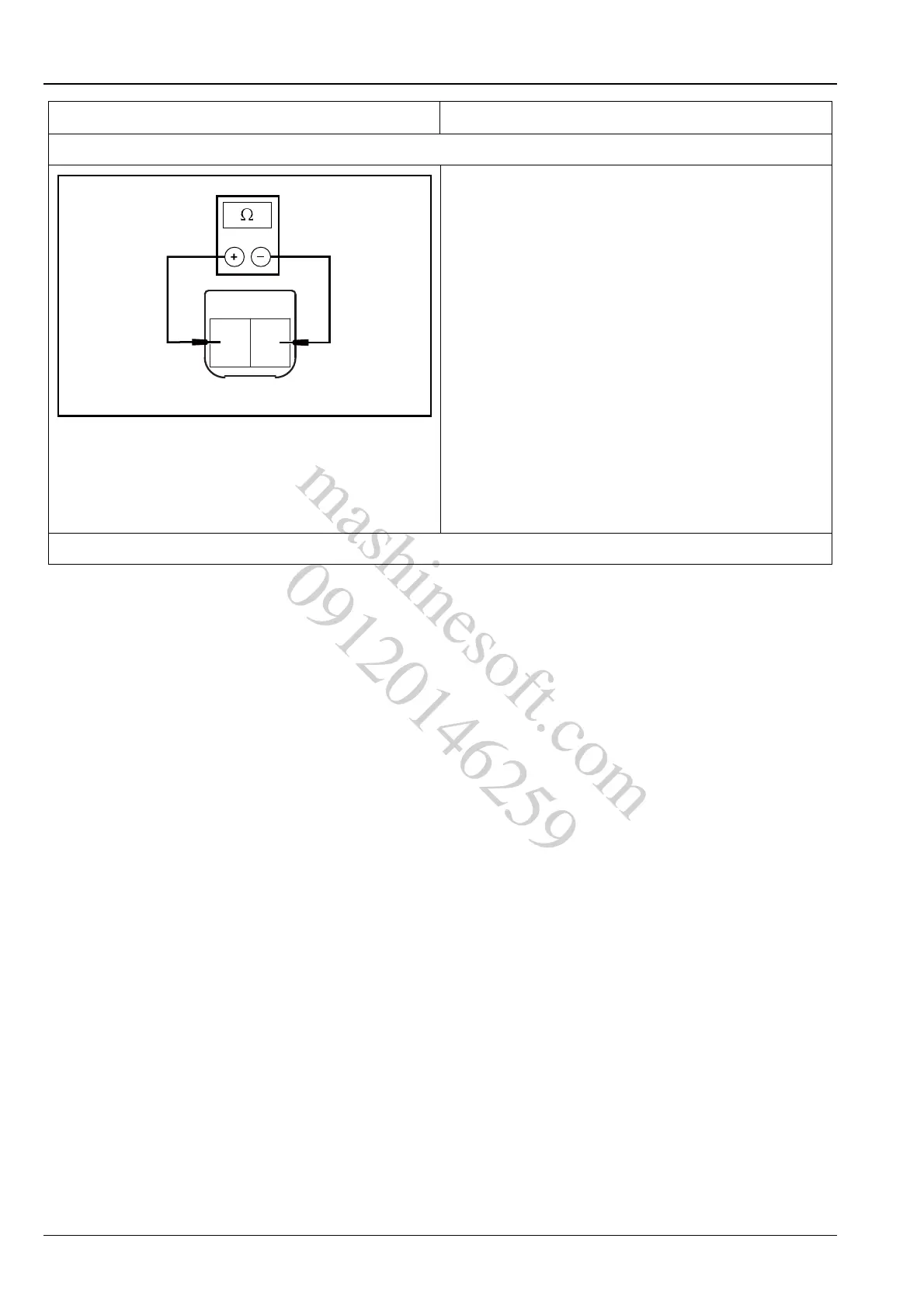

C. Measure the resistance value of crankshaft position
sensor.
Standard Resistance Value: 20 ℃ (68ºF)731 ~
989 Ω
Is the resistance value normal?
Y
Go to step 4.
N
Replace the crankshaft position sensor.
Refer to: Crankshaft Position Sensor
(3.1.13 Electrical Control System - ME7,
Removal and Installation).
4. Inspect the crankshaft position sensor terminal 1 circuit
Test Conditions Details/Results/Actions
