3.1.13-181 3.1.13-181Electronic Control System - ME7

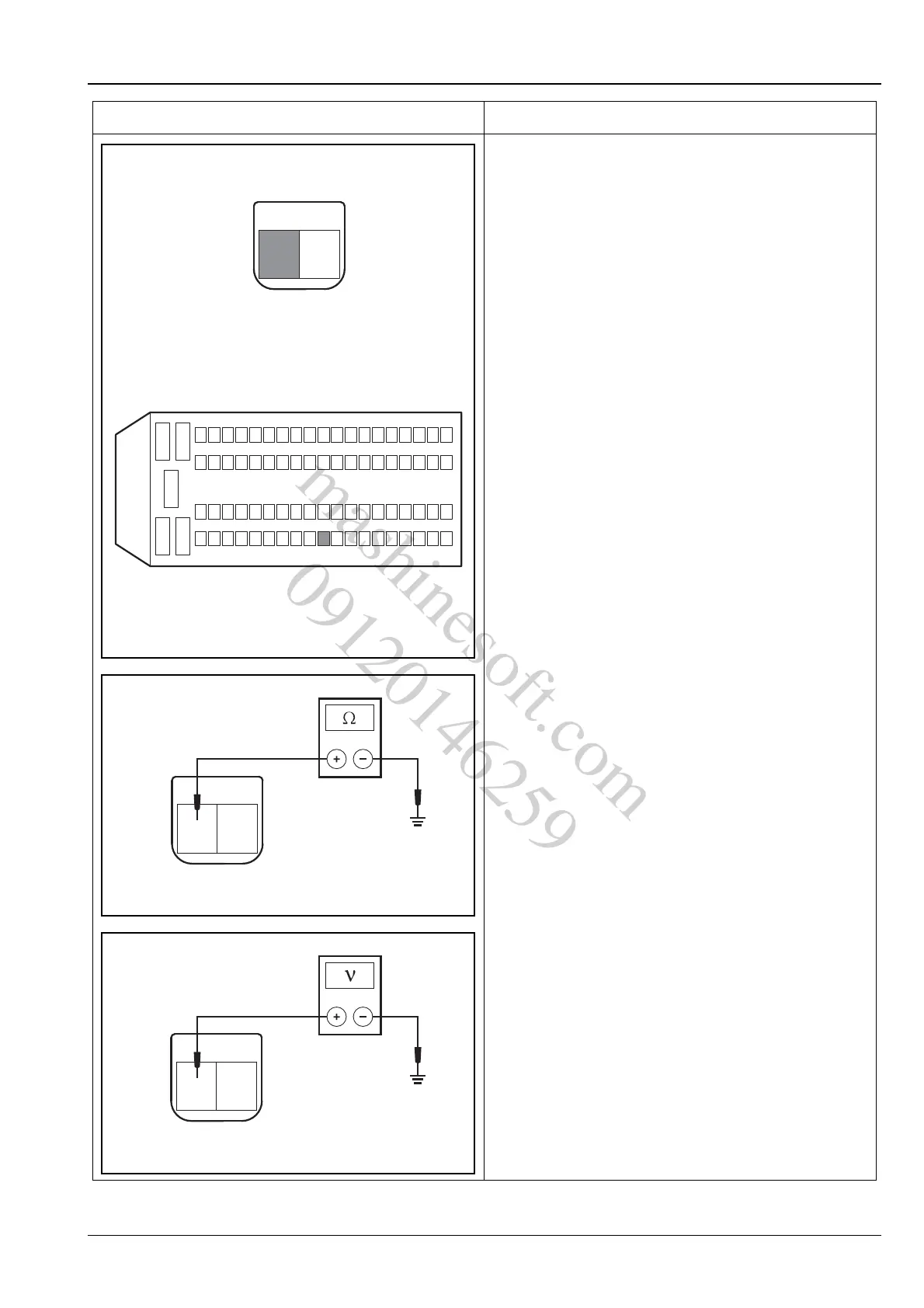

A. Turn the ignition switch to position "LOCK".
B. Disconnect the crankshaft position sensor wiring
harness connector E07.
C. Disconnect the the ECM wiring harness connector
E01.
D. Measure the resistance value between terminal 1 of
crankshaft position sensor wiring harness connector
E07 and terminal 15 of ECM wiring harness
connector E01.
Standard Resistance Value: less than 5Ω
E. Measure the resistance between terminal 1 of
crankshaft position sensor wiring harness connector
E07 and reliable grounding.
Standard Resistance Value: 10 MΩ or more
F. Measure the voltage between terminal 1 of
crankshaft position sensor wiring harness connector
E07 and reliable grounding.
Standard Voltage Value: 0 V
Is the circuit normal?
Y
Go to step 5.
N
Repair the fault circuit between the terminal 1 of
crankshaft position sensor wiring harness connector
E07 and the terminal 15 of ECM wiring harness
connector E01.
Test Conditions Details/Results/Actions
E01
E07
12
12
3
45
624
25
15
43
4462
6381
A3113034
12
E07
A3113035
12
E07
A3113036
