3.1.13-182Electronic Control System - ME7
5. Inspect the crankshaft position sensor terminal 2 circuit
A. Turn the ignition switch to position "LOCK".
B. Disconnect the crankshaft position sensor wiring
harness connector E07.
C. Disconnect the ECM wiring harness connector E01.
D. Measure the resistance value between terminal 2 of
crankshaft position sensor wiring harness connector
E07 and terminal 34 of ECM wiring harness
connector E01.
Standard Resistance Value: less than 5Ω
E. Measure the resistance between terminal 2 of
crankshaft position sensor wiring harness connector
E07 and reliable grounding.
Standard Resistance Value: 10 MΩ or more
F. Measure the voltage between terminal 2 of
crankshaft position sensor wiring harness connector
E07 and reliable grounding.
Standard Voltage Value: 0 V
Is the circuit normal?
Y
Go to step 6.
N
Repair the fault circuit between the terminal 2 of
crankshaft position sensor wiring harness connector
E07 and the terminal 34 of ECM wiring harness
connector E01.

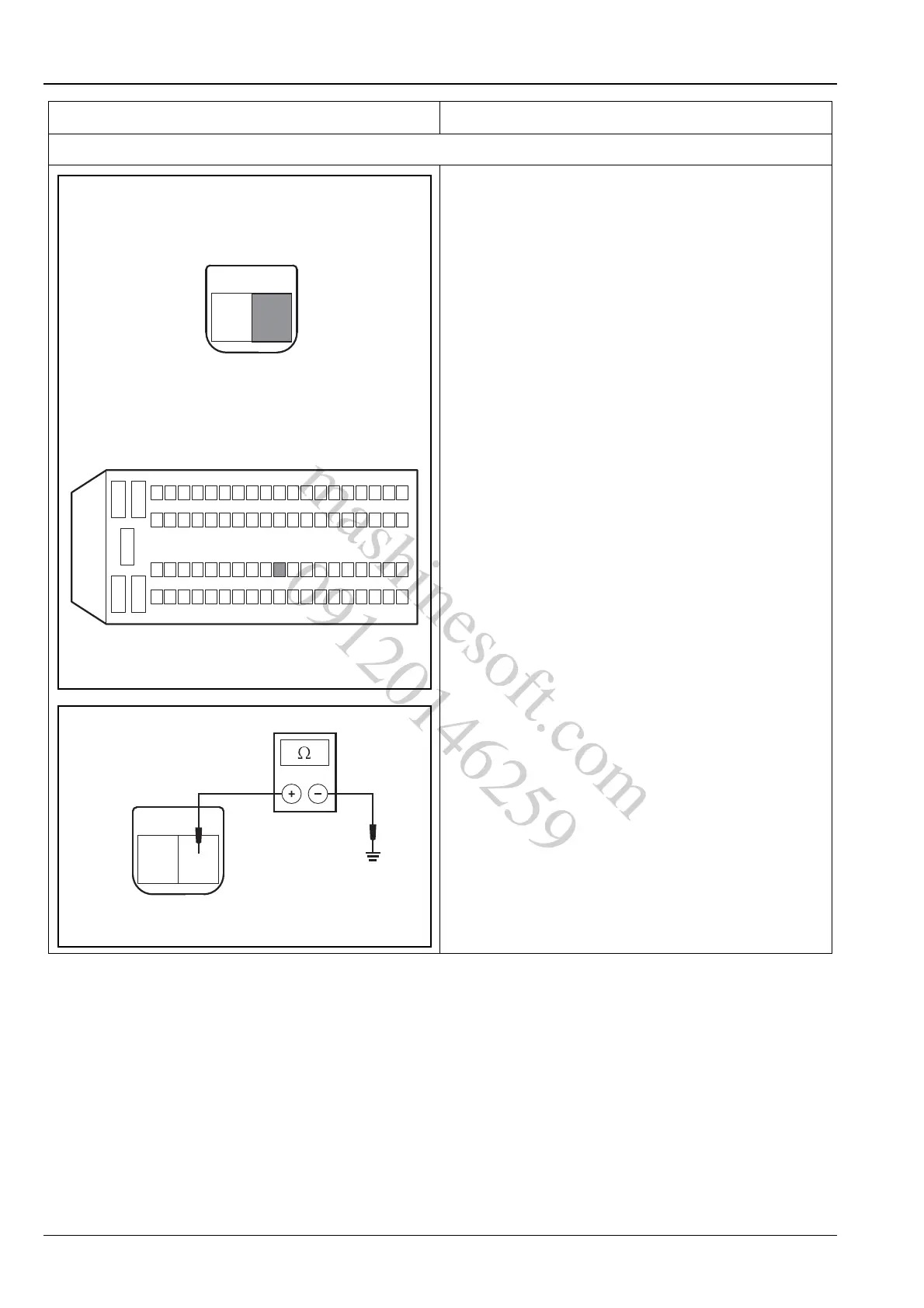

Test Conditions Details/Results/Actions
