3.1.13-193 3.1.13-193Electronic Control System - ME7
4. Inspect the intake camshaft position sensor signal circuit
A. Turn the ignition switch to "LOCK" position.
B. Disconnect the camshaft phase sensor wiring
harness connector E19.
C. Turn the ignition switch to position "ON".

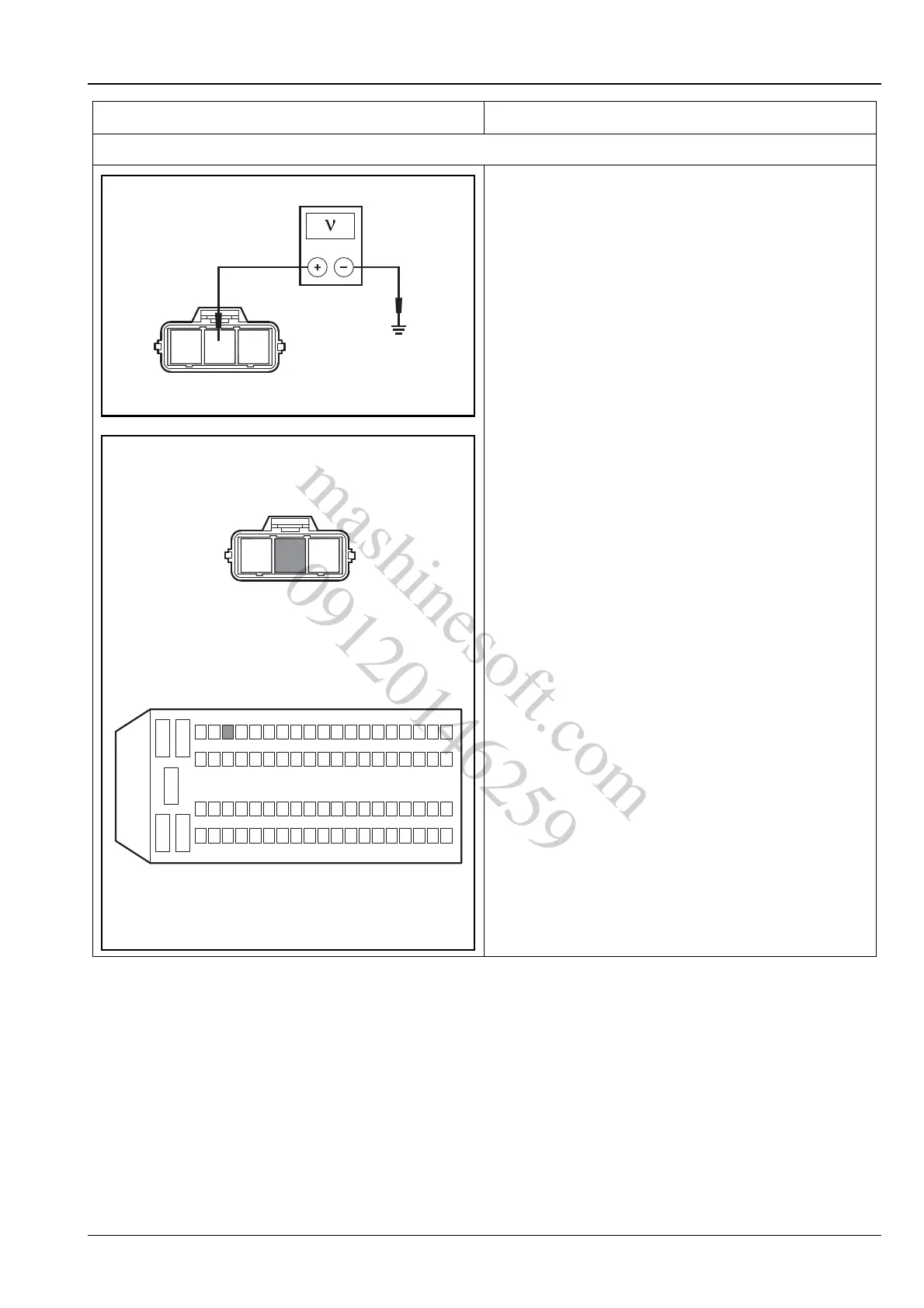

D. Measure the voltage between terminal 2 of intake
camshaft position sensor wiring harness connector
E19 and reliable grounding.
Standard Voltage Value: 4.5 ~ 5.5 V
Is the voltage normal?
Y
Go to step 5.
N
Repair the circuit between the terminal 2 of intake
camshaft position sensor wiring harness connector
E19 and the terminal 79 of ECM wiring harness
connector E01.
