3.1.13-226Electronic Control System - ME7
A. Turn the ignition switch to position "LOCK".
B. Disconnect the battery negative cable.
C. Disconnect the clutch switch wiring harness
connector C09 and ECM wiring harness connector
E01.
D. Measure the resistance between terminal 1 of
clutch switch wiring harness connector C09 and
terminal 74 of ECM wiring harness connector E01.
Standard Resistance Value: less than 5Ω
E. Measure the resistance between the terminal 1 of
clutch switch wiring harness connector C09 and the
reliable grounding. Inspect for short circuit to
ground.
Standard Resistance Value: 10 MΩ or more
F. Measure the voltage value between the terminal 1 of
clutch switch wiring harness connector C09 and the
reliable grounding. Inspect for short circuit to power
supply.
Standard Voltage Value: 0 V
G. Connect the clutch switch wiring harness connector
C09 and ECM wiring harness connector E01.
Is the circuit normal?
Y
Go to step 4.
N
Repair or replace the fault circuit.

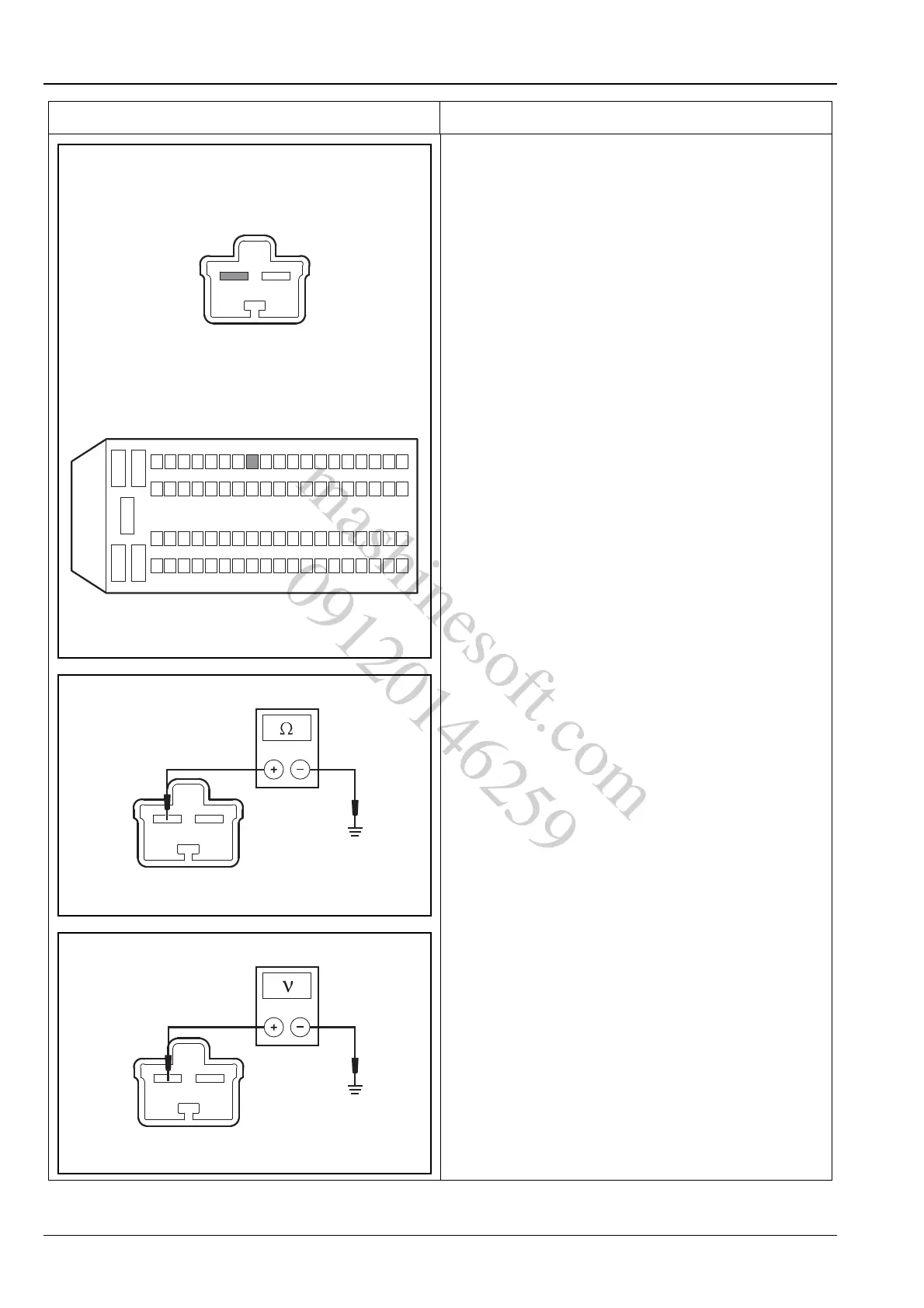

Test Conditions Details/Results/Actions
E01
C09
12
3
45
624
2543
4462
6381
74
A3113116
12
C09
12
A3113117
C09
12
A3113118
