CS35 2013.04
3.1.13-227 3.1.13-227Electronic Control System - ME7
4. Inspect the clutch switch ground circuit
A. Turn the ignition switch to position "LOCK".
B. Disconnect the clutch switch wiring harness
connector C09.
C. Measure the resistance between the terminal 2 of
the clutch switch wiring harness connector C09 and
the reliable grounding.
Standard Resistance Value: less than 5
D. Connect the clutch switch wiring harness connector
C09.
Is the resistance normal?
Y
Go to step 5.
N
Repair the fault circuit.
5. Inspect the clutch switch
A. Turn the ignition switch to position "LOCK".
B. Disconnect the clutch switch wiring harness
connector C09.
C. Measure the resistance between two terminals of
the clutch switch wiring harness connector C09.
Standard Resistance Value: 10 M or more
D. Apply the clutch.
E. Measure the resistance between two terminals of
the clutch switch wiring harness connector C09.
Standard Resistance Value: less than 5
Is the resistance value normal?
Y
Go to step 6.
N
Replace the clutch switch.
Test Conditions Details/Results/Actions

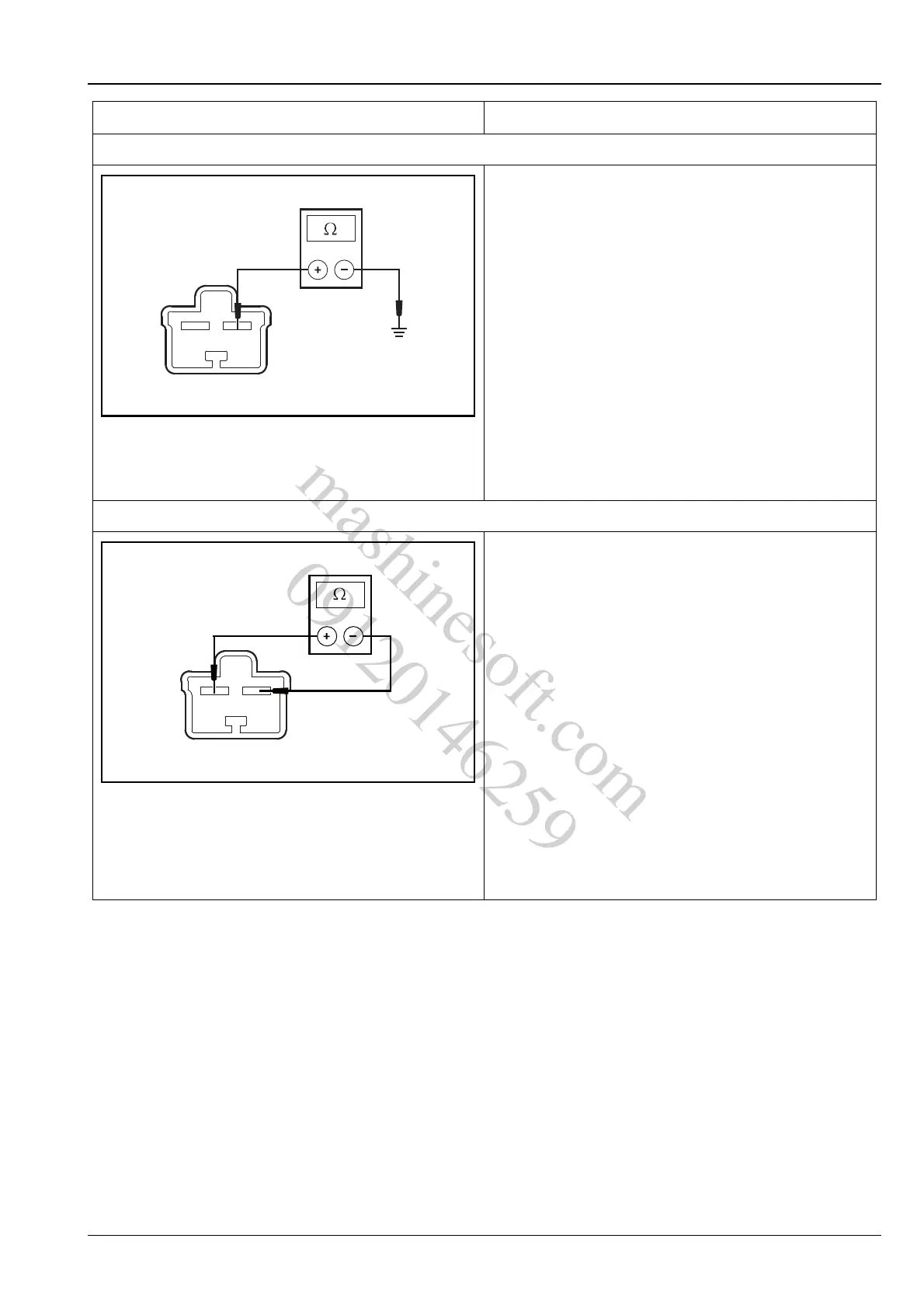

C09
12
A3113119
C09
12
A3113120
