4. Inspect the ECM ground circuit
A. Turn the ignition switch to position "LOCK".
B. Measure from the back of ECM wiring harness
connector E01.
C. Measure with a multimeter the resistance between
the ECM wiring harness connector E01 terminal 3,
51, 53, 61 and 80 and the reliable grounding.
Standard Resistance Value: less than 5 Ω
Is the resistance value normal?
Y
Replace the engine control module.
Refer to: Engine Control Module (3.1.13
Electronic Control System - ME7, Removal
and Installation).
N
Inspect and repair the ECM ground circuit.

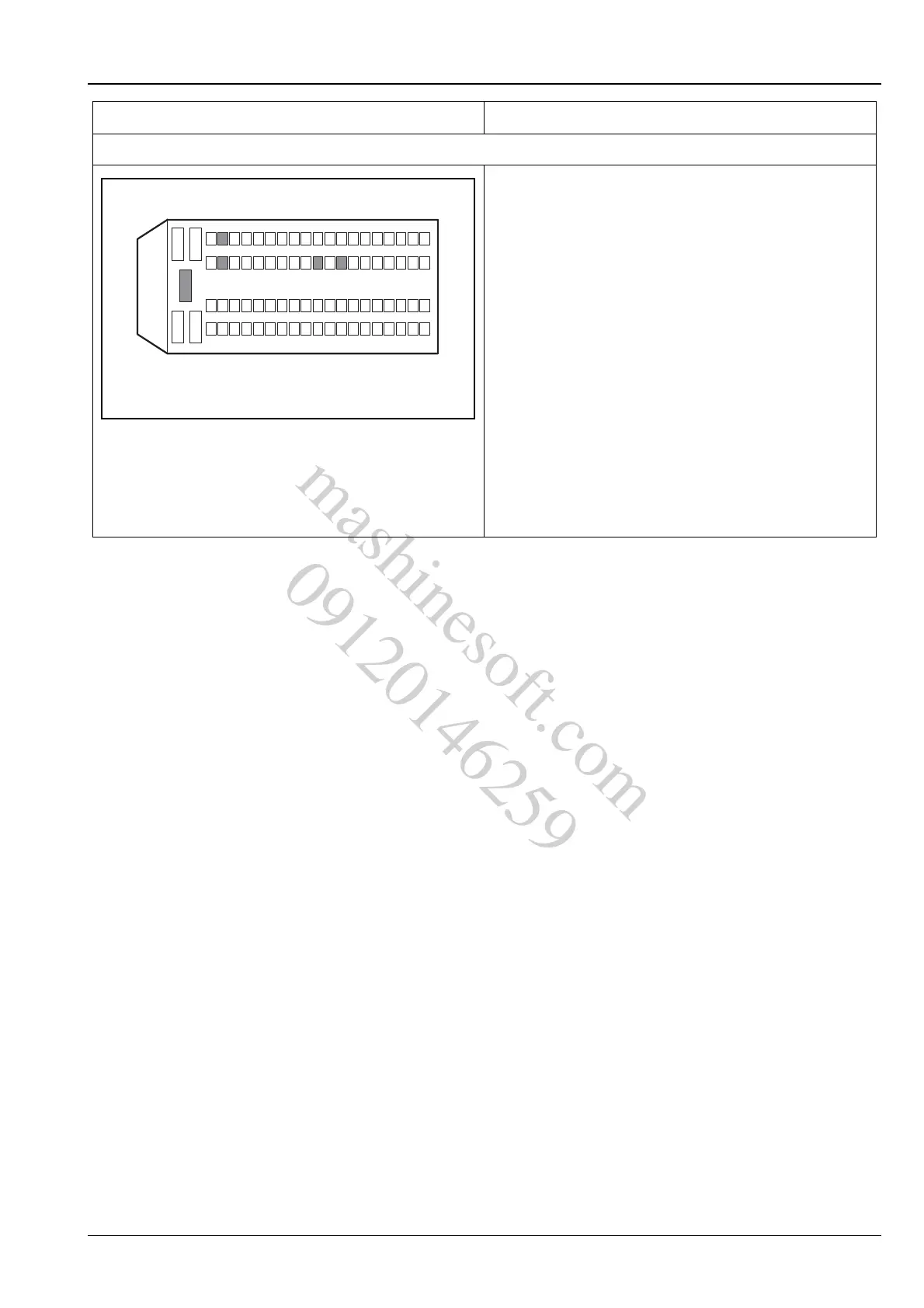

Test Conditions Details/Results/Actions
12
3
45
6
51
53
61
80
24
2543
4462
6381
E01
A3113032
