9. Inspect the carbon canister system
A. Inspect the carbon canister system.
Refer to: Carbon Canister Inspection
(3.1.11 Exhaust Control System, General
Procedures).
Is the carbon canister system normal?
Y
Go to step 10.
N
Repair the carbon canister system.
10. Inspect the exhaust back pressure
A.Inspect the exhaust back pressure.
Refer to: Exhaust Back Pressure Testing
(3.1.6 Exhaust System, General Proce-
dures).
Is the exhaust back pressure normal?
Y
Go to step 11.
N
Repair the exhausts system.

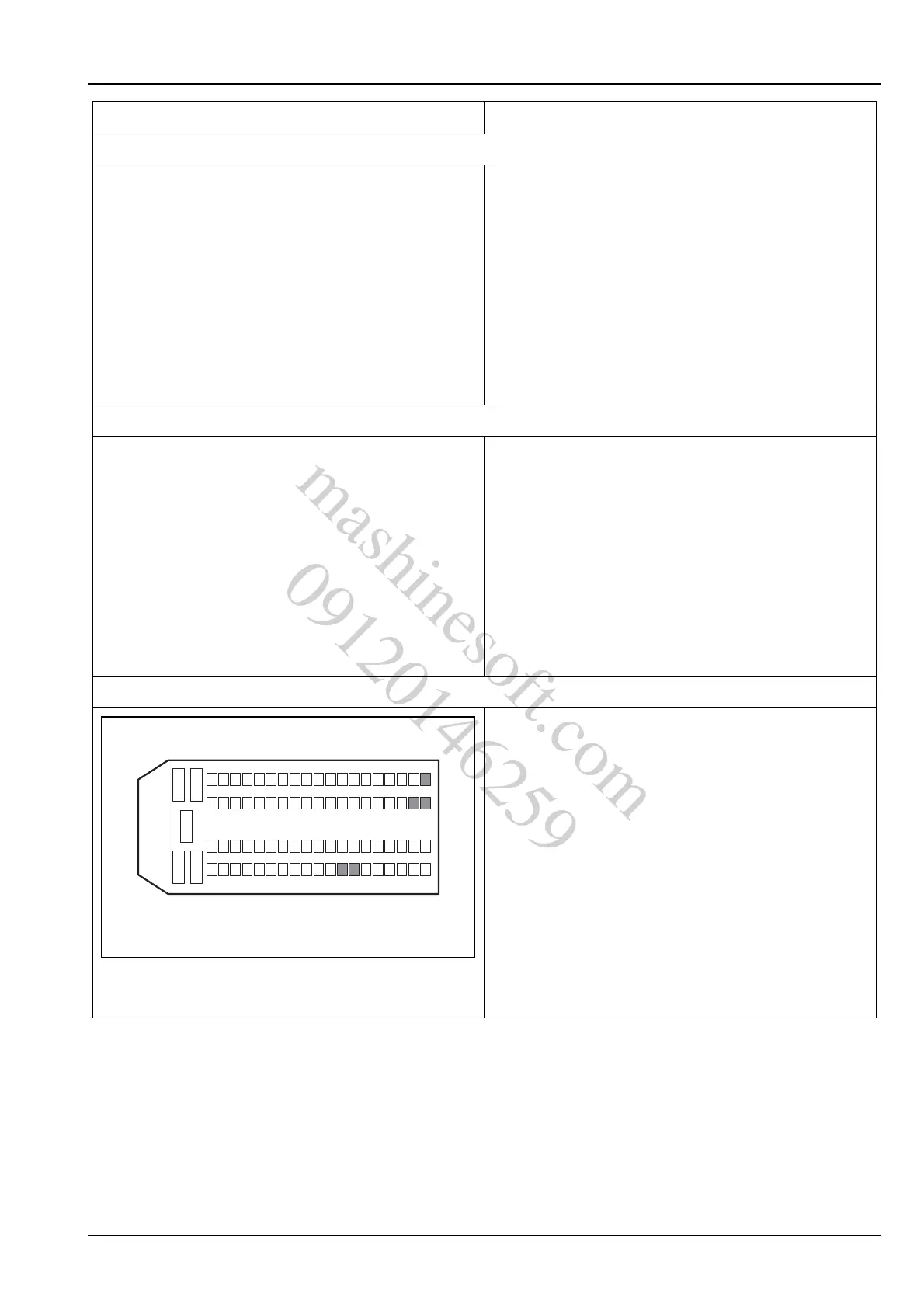

11. Inspect the ECM power supply circuit
A. Turn the ignition switch to "LOCK" position.
B. Measure from the back of ECM wiring harness
connector E01.
C. Turn the ignition switch to "ON" position and use a
multimeter to measure the voltage between the
terminals 12, 13, 44, 45 and 63 of the ECM wiring
harness connector E01 and the power supply.
Standard Voltage Value: 11 ~ 14 V
Is the voltage normal?
Y
Go to step 12.
N
Repair and inspect the ECM power supply circuit.
Test Conditions Details/Results/Actions
12
3
45
624
2543
4462
63
13
12
45
81
E01
A3113031
