Programmable DC Power Supply 62000P Series Operating & Programming Manual
2. Use the numeric (
0
~
1
) keys or “Rotary” ( ) knob to set the value.
3. Press “
ENTER
” to confirm.
4. Press “
EXIT
” to return to MAIN PAGE.
Clear Sequence has two options which are CLEAR SEQ. = YES / NO. The main function
of Clear Sequence is to clear the 10 sequences settings to program and reset them to factory
default as Figure 4-8 shows.

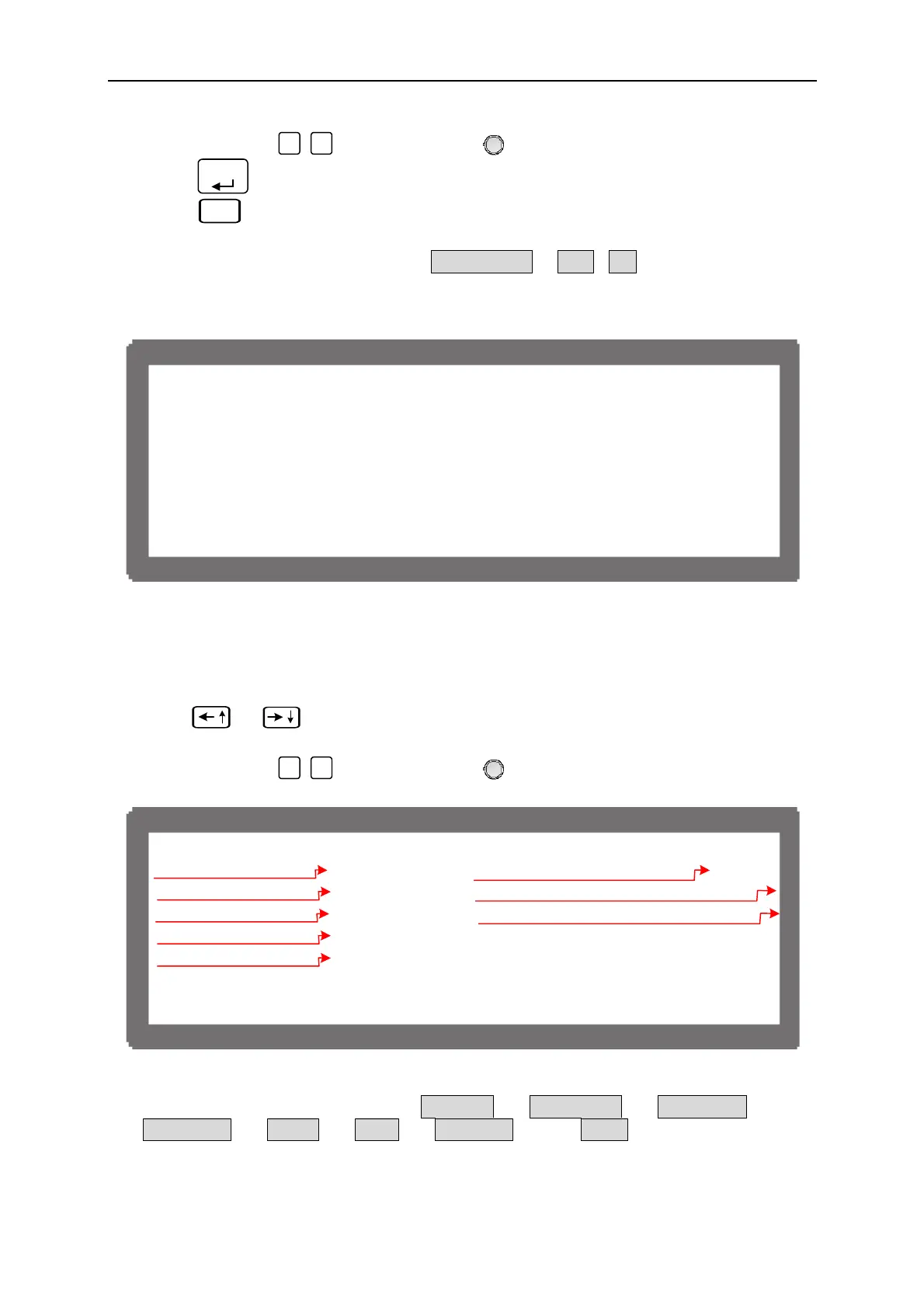

[SEQ U E N C E ]
S E Q N O . = 1 S E Q . T Y P E = A U T O
V O L T A G E = 0 V S . R . = 1 . 0 ( V / m S )
C U R R E N T = 0 I S . R . = 1 . 0 ( A / m S )
T T L O U T = 0 < B I N A R Y = 0 0 0 0 0 0 0 0 >
T I M E = 0
▲
▼
Figure 4-8
4.2 Setting Sequence
1. Use “
”, “
” keys to move the cursor to the column to be set as Figure 4-9
shows.
2. Use the numeric (
0
~
1
) keys or “Rotary” ( ) knob to set the value.
[SEQ U E N C E ]
S E Q N O . = 1 S E Q . T Y P E = A U T O
V O L T A G E = 0 V S . R . = 1 . 0 ( V / m S )
C U R R E N T = 0 I S . R . = 1 . 0 ( A / m S )
T T L O U T = 0 < B I N A R Y = 0 0 0 0 0 0 0 0 >
T I M E = 0
▲
▼
)1()2(
)3(
)4(
)6(
)5(
)7(
)8(
Figure 4-9
Each sequence has eight options: (1) SEQ NO., (2) SEQ. TYPE, (3) VOLTAGE, (4)
CURRENT, (5) V S_R, (6) I S_R, (7) TTL OUT, and (8) TIME. They are described
below.
4-8
