Overview
Fault Output Signal
Indicate if there is a fault/protection occurred, Active Low. TTL
Series & Parallel operation function with Master / Slave control
By RS-485
interface
Voltage limit @ Series Mode. (Floating output)
1200 Volt
Voltage limit @ Series Mode (Refer to Ground)
240 Volt
Number of DC Power Supplies allowed @ master / slave control mode
5
Auto Sequencing Programmable Function
N
umber of progra
m
10
N
umber of sequence 100
Time Range 10ms – 10000S
TTL signal out 8 bits
TTL source capability 7 mA
Slew Rate Control Function
Voltage slew rate range (The fall rate will be affected by the discharge rate of the
output capacitors especially under no load condition.)
0.01V – 10V/ms
Current slew rate range of current. 0.01A – 1A/ms
Minimum transition time. 0.5 ms
Remote Sense
Line loss compensation 5V
All specifications are subject to change without prior notice.
CAUTION
Voltage up to ±240 Vdc from both output terminals to Earth Ground may result damage to the
DC Power Supply.
1.4 Function Keys
1.4.1 Front Panel
17
1
2
3
4
5
7
11
10
9
12
13
14
15
16
6
8
18
1
0
A60/
DC
V80/KW2.1

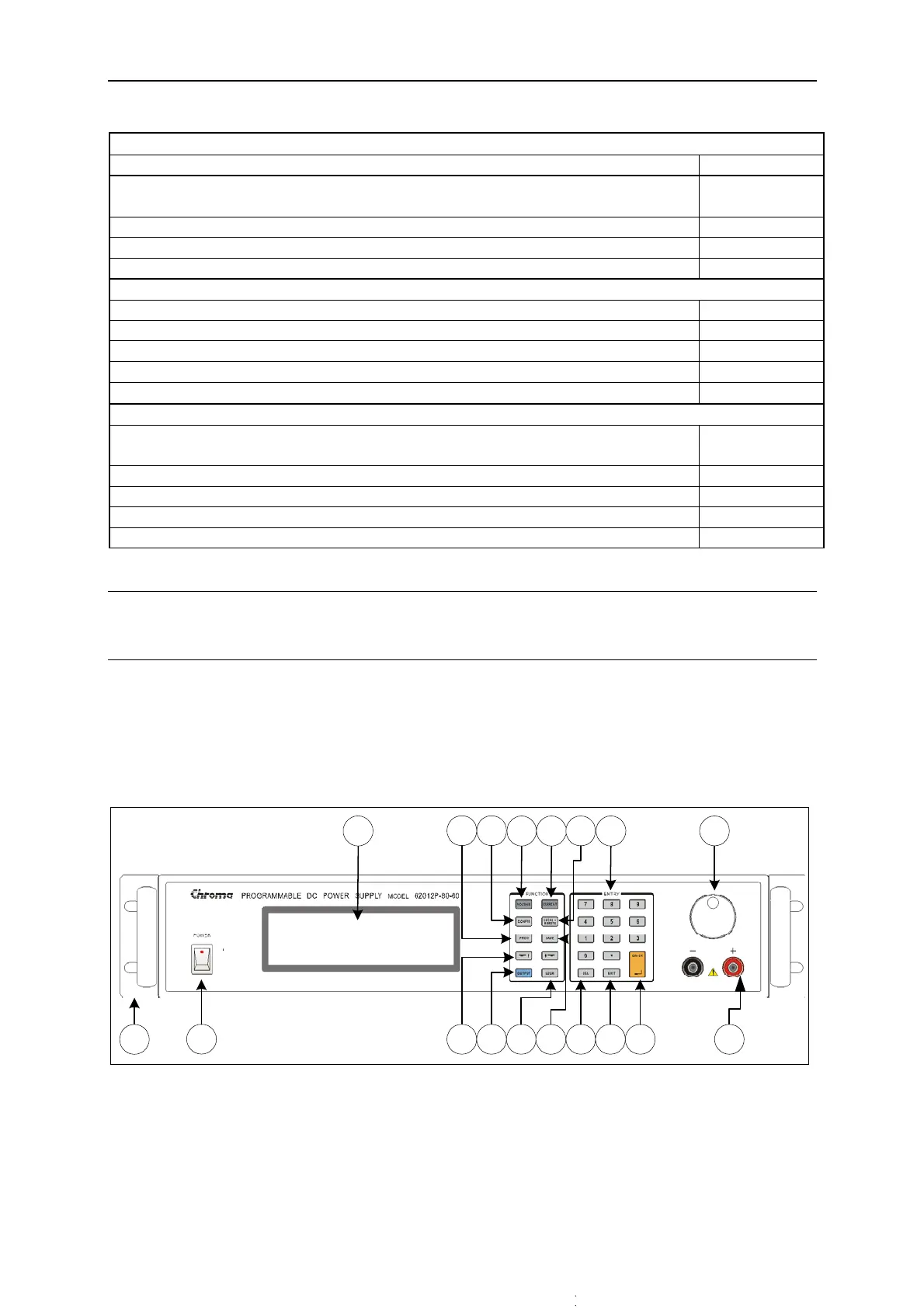

Figure 1-1 Front Panel
