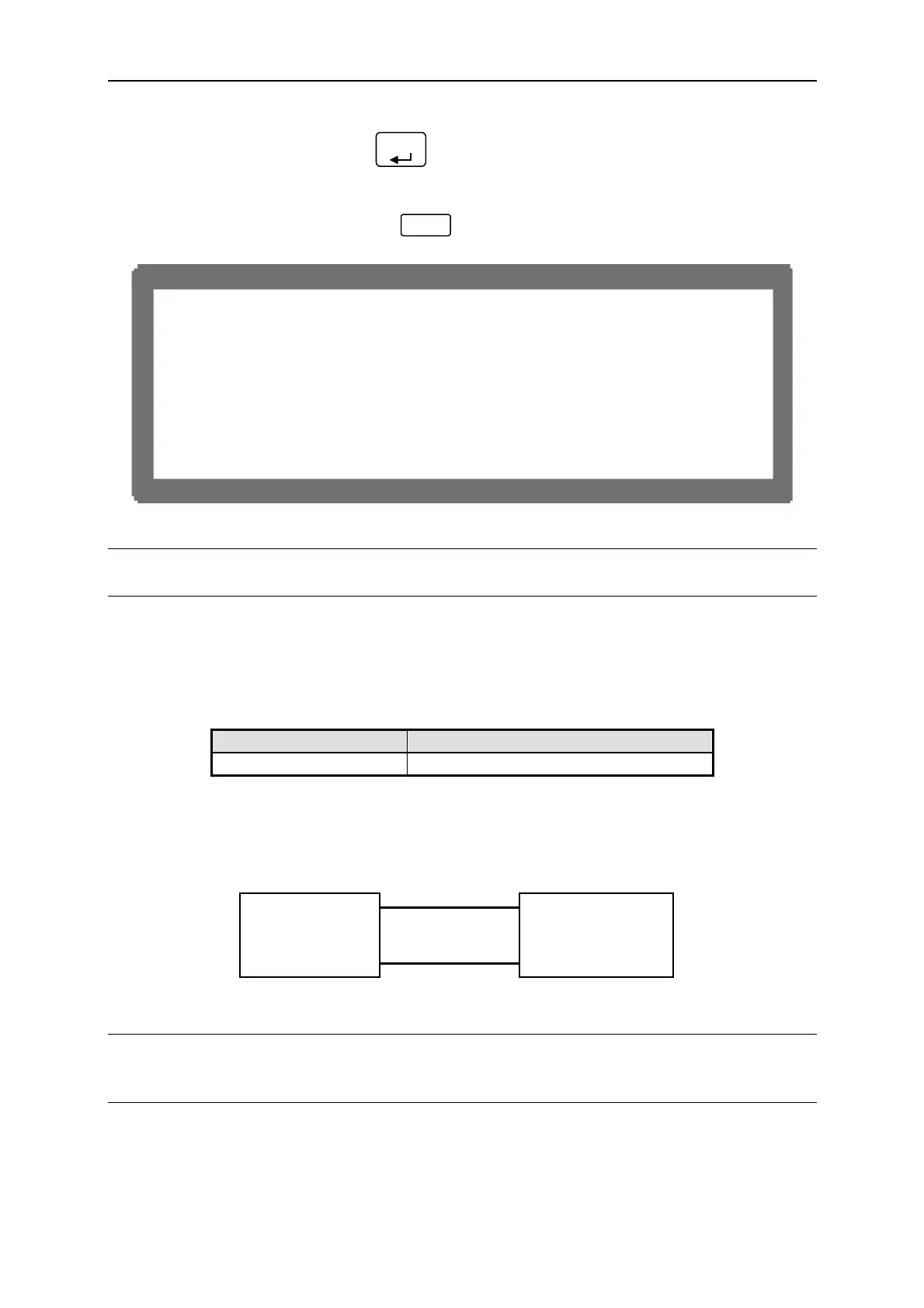

Chroma 62000P Series - Voltage Output & Measurement Calibration

Manual Operation
3. Enter the password and press “
ENTER
” to confirm. The screen will display 4 calibration
options as Figure 3-74 shows. The calibration steps are described from section 3.3.7.1 to
3.3.7.5.
4. To abort CALIBRATION, press “
EXIT
” to return to MAIN PAGE.
C H O I C E = V O L T A G E [ C A L I B R A T I O N ]
1 . V O L T A G E [ P R O G . / M E A S . ]
2 . C U R R E N T [ M E A S . ]
3 . C U R R E N T [ P R O G . ]
4 . A P G V O L T A G E [ P R O G . / M E A S . ]
5 . A P G C U R R E N T [ P R O G . / M E A S . ]
Figure 3-74
NOTICE
Password is required for CALIBRATION. The password is “3636”.
3.3.7.1 Voltage Output & Measurement Calibration
3.3.7.1.1 Hardware Requirements
Device Suggested Model or Capacity
DVM HP 34401A or equivalent DVM
Table 3-8
3.3.7.1.2 SETUP
DVM
DC Power
Supply
Figure 3-75
NOTICE
For the instrument that performs calibration its accuracy has to be higher than the accuracy of
spec.
3-47
