3.3.7.1.3 Calibration Procedure (Example: Model 62012P-80-60)

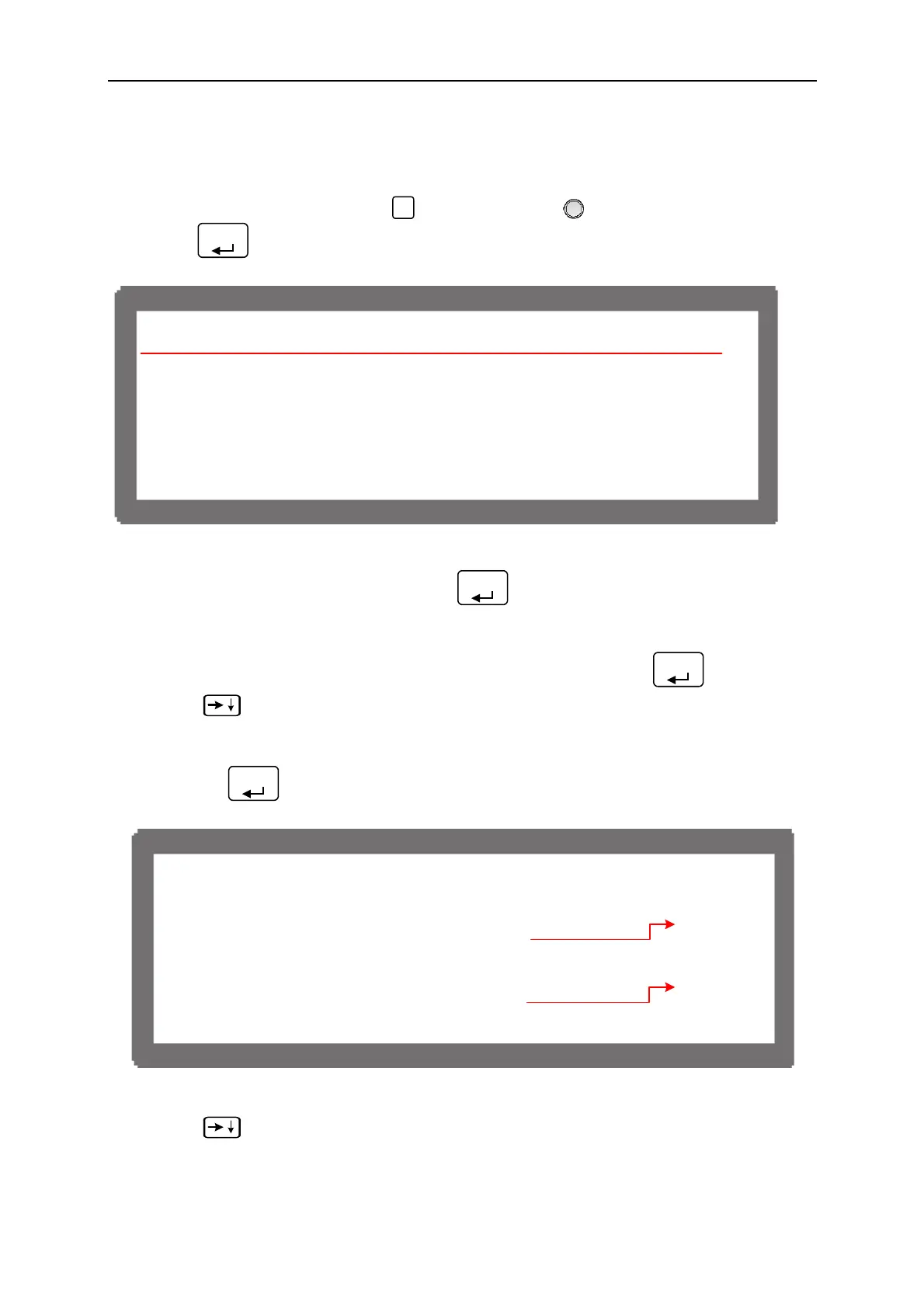

(1) Enter into the page of Figure 3-74.
(2) In CALIBRATION page, press “
1
” or turn “Rotary” ( ) knob to set CHOICE=1.
(3) Press “
ENTER
” to confirm entering into voltage calibration options as Figure 3-76 shows.
[ V O L T A G E C A L I B R A T I O N ]
R E M O V E E X T E R N
A
L L O
A
DANDPRESS[EN T E R ]
S E T T I N G O U T P U T V O L T A G E 1 . 0 V
A C T U A L O U T P U T V O L T A G E = 0 . 9 9 8 8 V
S E T T I N G O U T P U T V O L T A G E 1 5 . 0 V
A C T U A L O U T P U T V O L T A G E = 1 4 . 9 8 0 0
V
Figure 3-76
(4) When in Voltage calibration page, press “
ENTER
” to confirm.
(5) First do the low voltage range calibration (16V), the instrument will set the output
voltage to 1.00V and the cursor is stopped at position [1] as Figure 3-77 shows. Enter the
voltage measured by DVM (4 digits after decimal point) and press “
ENTER
” to confirm.
(6) Press “
” again to do the low voltage range calibration for its second point, the
instrument will set the output voltage to 15.00V and the cursor is stopped at position [2]
as Figure 3-77 shows. Enter the voltage measured by DVM (4 digits after decimal point)
and press “
ENTER
” to confirm.
]1[
]2[
[ V O L T A G E C A L I B R A T I O N ]
R E M O V E E X T E R N A L L O
A
D A N D P R E S S [ E N T E R ]
S E T T I N G O U T P U T V O L T A G E 1 . 0 V
A C T U A L O U T P U T V O L T A G E = 0 . 9 9 8 8 V
S E T T I N G O U T P U T V O L T A G E 1 5 . 0 V
A C T U A L O U T P U T V O L T A G E = 1 4 . 9 8 0 0
V
Figure 3-77
(7) Press “
” to do the high voltage range calibration (80V), the instrument will set the
output voltage to 25.00V first and the cursor is stop at position [3] as Figure 3-78 shows.
