Chapter 6 Configuring Synchronous Ethernet
Understanding SyncE
A REP segment is a chain of ports connected to each other and configured with a segment identifier. Each
segment consists of standard (non-edge) ports and two user-configured edge ports. A switch can have no
more than two ports in the same REP segment and each segment port can have only one external
neighbor. REP is supported only on Layer 2 trunk interfaces.
You can use REP in the SyncE network with a REP no-edge segment or with REP VLAN load balancing.
You cannot configure SyncE as a REP segment and configure a BITS interface at the same time.
SyncE uses REP only for failure detection, and not for timing topology discovery or timing loop
prevention. These SyncE features are achieved through correct configuration of port priorities. Timing
loops can occur if priority is not correctly configured.
Configuring REP allows the segment to automatically respond to a failure in the ring and avoid timing
loops by changing the direction of the reference clock path. Figure 6-1 shows how you can configure a
REP segment in a SyncE network. The 10 Gigabit ports are used to connect the switches.
After you have configured switch network clock priority and configured the REP network, enter the
ql-enabled rep-segment segment-id command to identify the REP segment to with SyncE.

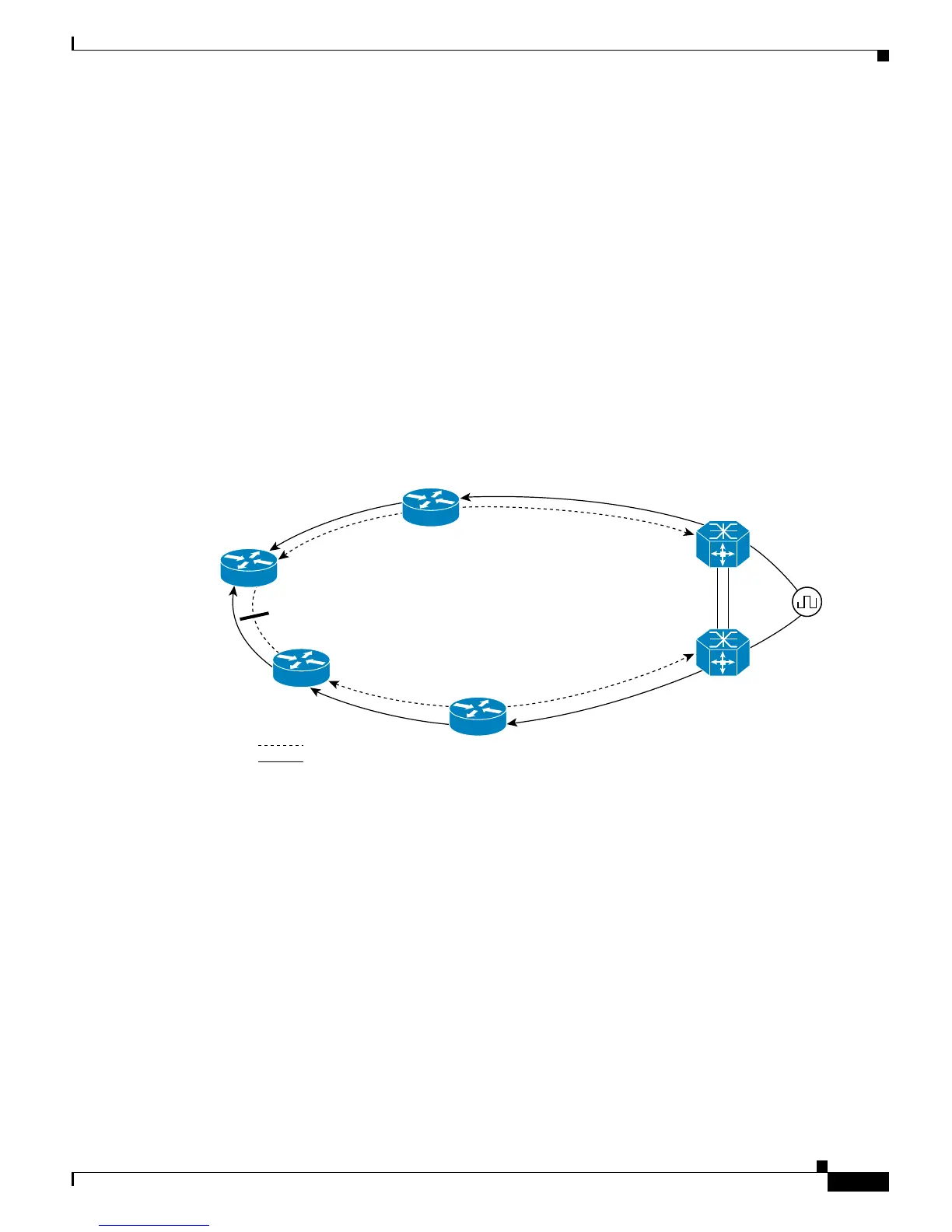

Figure 6-1 SyncE REP Segment
Figure 6-2 shows a failure in the timing network, a broken link in the REP segment between Switch 4
and Router 1.
Blocked
REP Edge
Port
REP Edge
Port
Clock
Reference
281356
Switch 3
Switch 4
Switch 2
Switch 1
Priority 1
Priority 1
Priority 1
Priority 1
Data path
Priority 2
Priority 2
Priority 2
Priority 2
Router 2
Router 1
Timing path
