28-2
Cisco ME 3800X and 3600X Switch Software Configuration Guide
OL-23400-01
Chapter 28 Configuring EtherChannels
Understanding EtherChannels

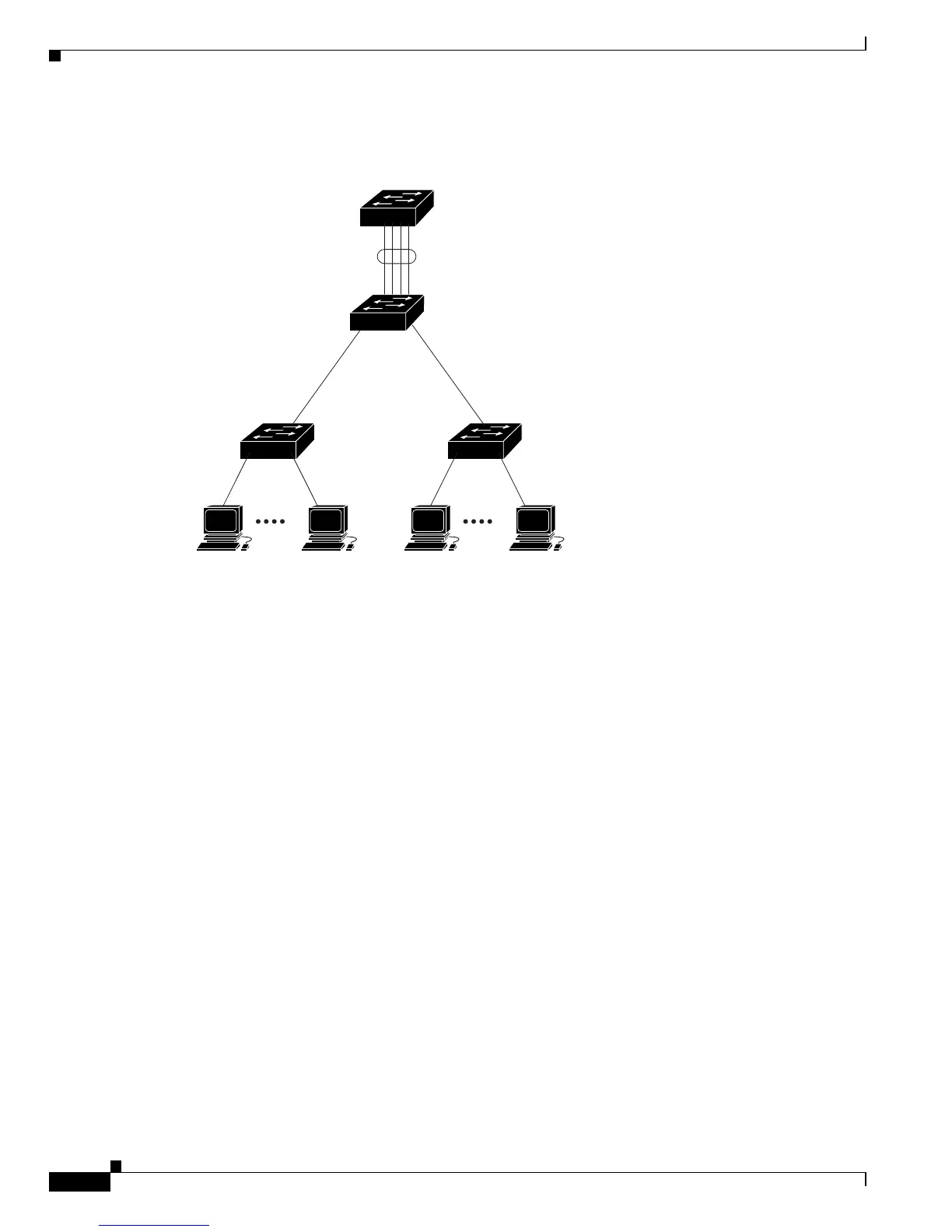

Figure 28-1 Typical EtherChannel Configuration
The EtherChannel provides full-duplex bandwidth of up to 800 Mbps between your switch and another
switch or host for Fast EtherChannel on a switch with 24 Fast Ethernet ports. For Gigabit EtherChannel,
you can configure up to 8 Gbps (8 ports of 1 Gbps), depending on the number of supported Gigabit
Ethernet interfaces.
Each EtherChannel can consist of up to eight compatibly configured Ethernet ports. All ports in each
EtherChannel must be configured as either Layer 2 or Layer 3 ports. The number of EtherChannels is
limited to 48. For more information, see the “EtherChannel Configuration Guidelines” section on
page 28-9. The EtherChannel Layer 3 ports are made up of routed ports. Routed ports are physical ports
configured to be in Layer 3 mode by using the no switchport interface configuration command. For
more information, see the Chapter 9, “Configuring Interfaces.”
You can configure an EtherChannel in one of these modes: Port Aggregation Protocol (PAgP), Link
Aggregation Control Protocol (LACP), or On mode. Configure both ends of the EtherChannel in the
same mode:
• When you configure one end of an EtherChannel in either PAgP or LACP mode, the system
negotiates with the other end of the channel to determine which ports should become active.
Incompatible ports are suspended.
• When you configure an EtherChannel in the on mode, no negotiations take place. The switch forces
all compatible ports to become active in the EtherChannel. The other end of the channel (on the other
switch) must also be configured in the on mode; otherwise, packet loss can occur.
The local port is put into an independent state and continues to carry data traffic as would any other
single link. The port configuration does not change, but the port does not participate in the
EtherChannel.
