c) Reattach the cords and seat them in the clips that are incorporated into the phone body.

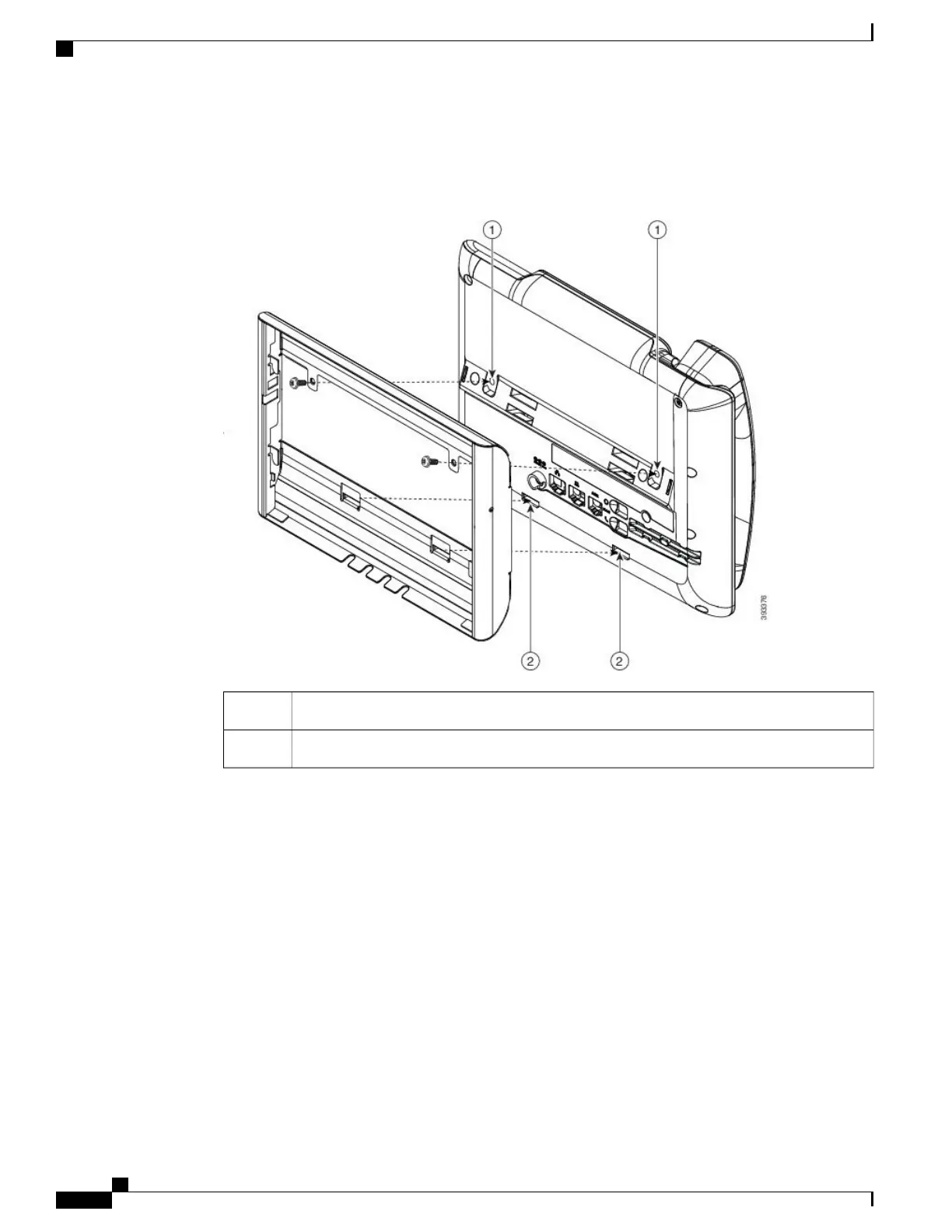

Figure 24: Phone Bracket Attachment
Screw holes1
Slot for Mounting Tabs2
Step 3
Attach the cables to the phone:
a) Attach the Ethernet cable to the 10/100/1000 SW network port and wall jack.
b) (Optional) If you are connecting a network device (such as a computer) to the phone, attach the cable to
the 10/100/1000 Computer (PC access) port.
c) (Optional) If you use an external power supply, plug the power cord into the phone. Dress the cord by
clipping it into the clips that are incorporated into the phone body next to the PC port.
Cisco IP Phone 7800 Series Administration Guide for Cisco Unified Communications Manager
86
