d) (Optional) If the cables terminate inside the wall bracket, connect the cables to the jacks.

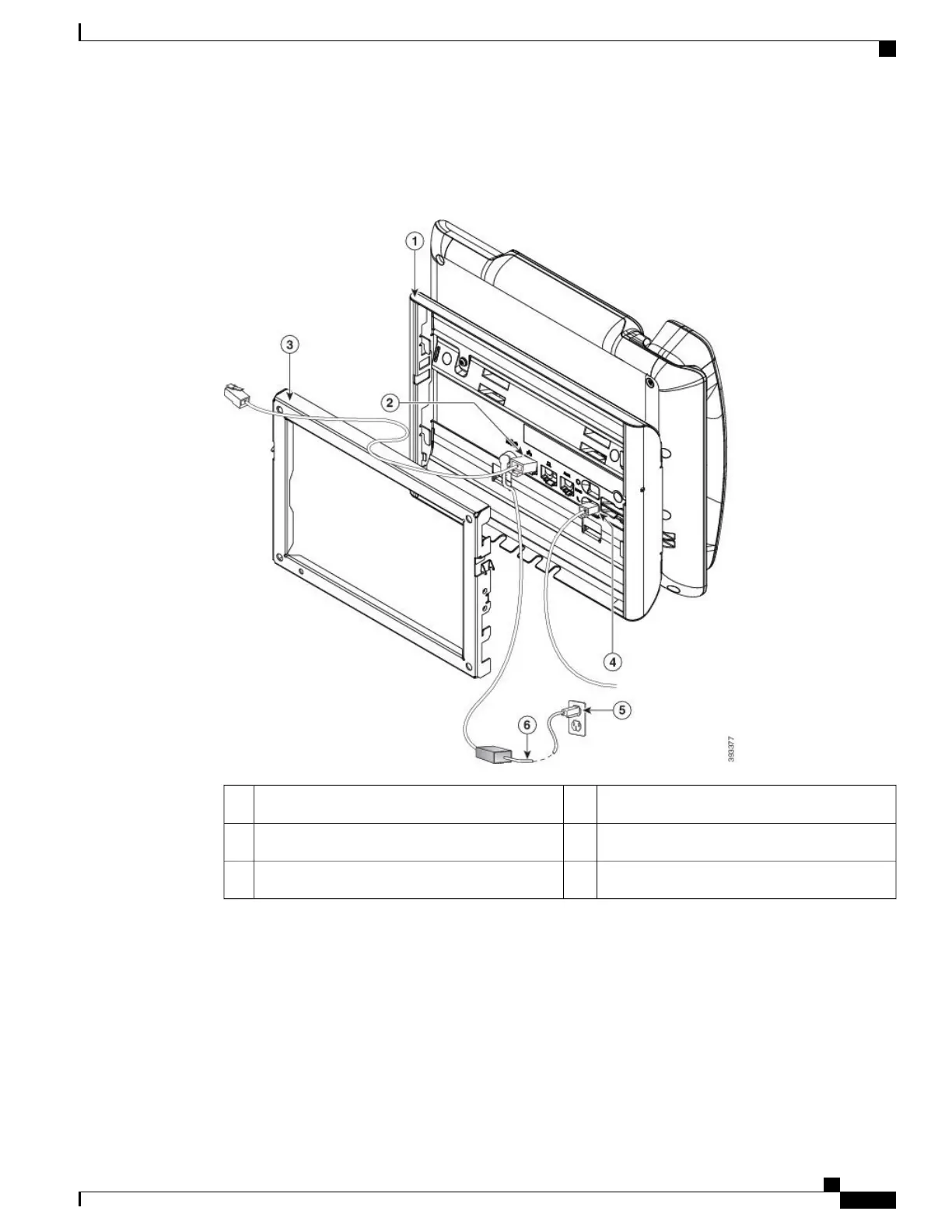

Figure 25: Cable Attachment
Handset Port4Phone Bracket1
AC Adapter Port5Network Port2
Optional Power Cable6Wall Bracket3
Step 4
Attach the phone to the wall bracket by inserting the tabs on the top of the wall bracket into the slots on the
phone bracket.
Cisco IP Phone 7800 Series Administration Guide for Cisco Unified Communications Manager
87
Non-Lockable Wall Mount Components for 7861
