Cisco ASR 5000 Series User Manual

ASR 5000 Hardware Platform Overview
ASR 5000 Line Cards ▀
Cisco ASR 5000 Series Product Overview ▄
OL-22938-02

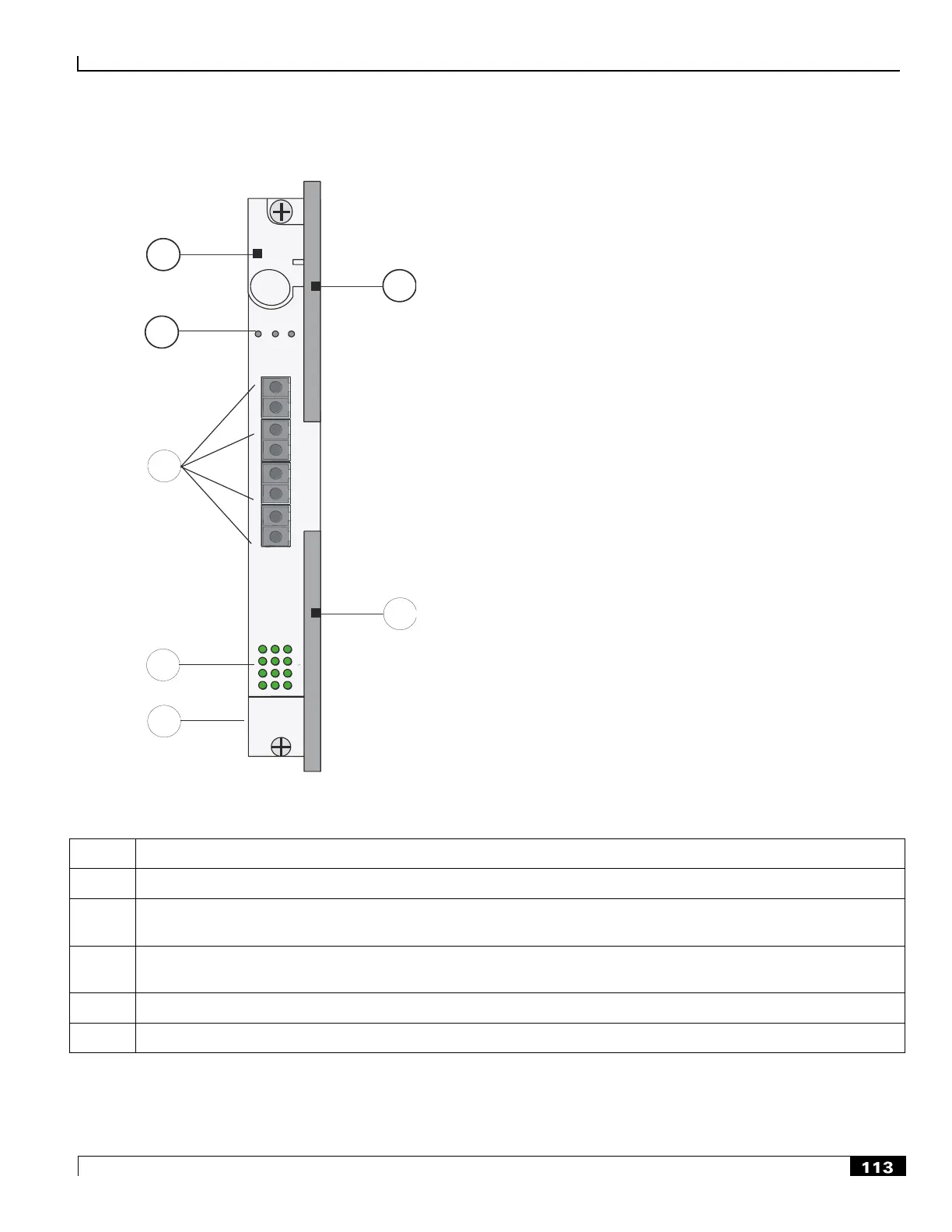

Figure 25. OLC2 Optical (ATM) Line Card
R
u
n
/
F
a
i
l
A
c
t
i
v
e
S
t
a
n
d
b
y
1
3
2
4
1
2
3
4
R
e
d
A
l
a
rm
Y
e
l
l
o
w
A
l
a
r
m
L
i
n
k
1
OLC2
OC-3/STM-1
xxxx
4
1
1
5
6
3
2
Table 20. Optical (ATM) Line Card Callout Definitions
Number
Description
1
Card Ejector Levers—Use to insert/remove card to/from chassis.
2
Interlock Switch—When pulled downward, the interlock switch notifies the system to safely power down card prior to
removal.
3
Card Level Status LEDs—Show the status of the card. See the Applying Power and Verifying Installation for
definitions.
4
Port connectors—Fiber LC duplex female connector.
5
Port Level Status LEDs—Show the status of a port. See the Applying Power and Verifying Installation for definitions.
