ASR 5000 Hardware Platform Overview

▀ Fan Tray Assemblies

▄ Cisco ASR 5000 Series Product Overview

OL-22938-02

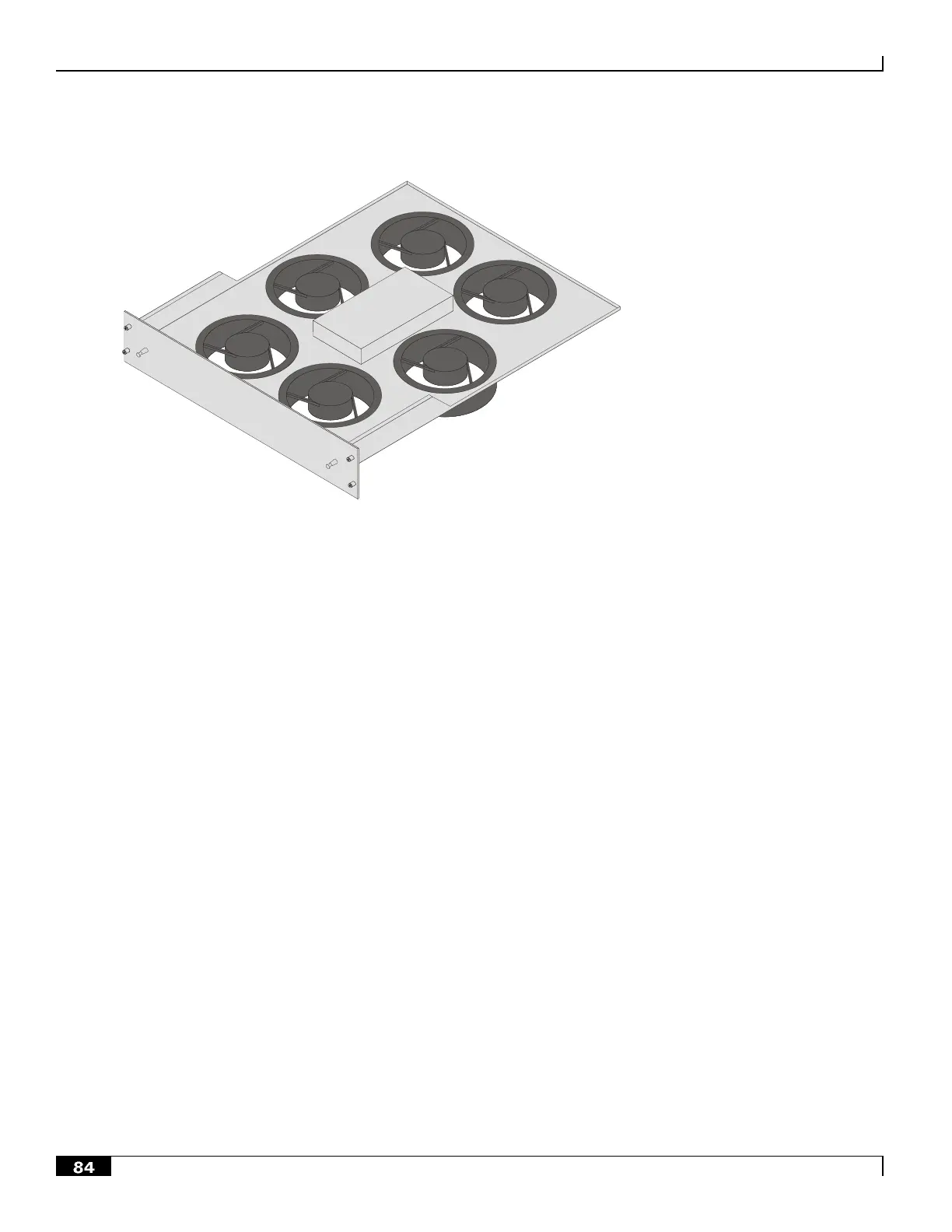

Figure 13. Upper Fan Tray Assembly

Chassis Airflow

Airflow within the chassis is designed per Telcordia recommendations to ensure the proper vertical convection cooling

of the system. Detailed information is located in the Chassis Air Flow section in Environmental Specifications chapter

of this guide.
