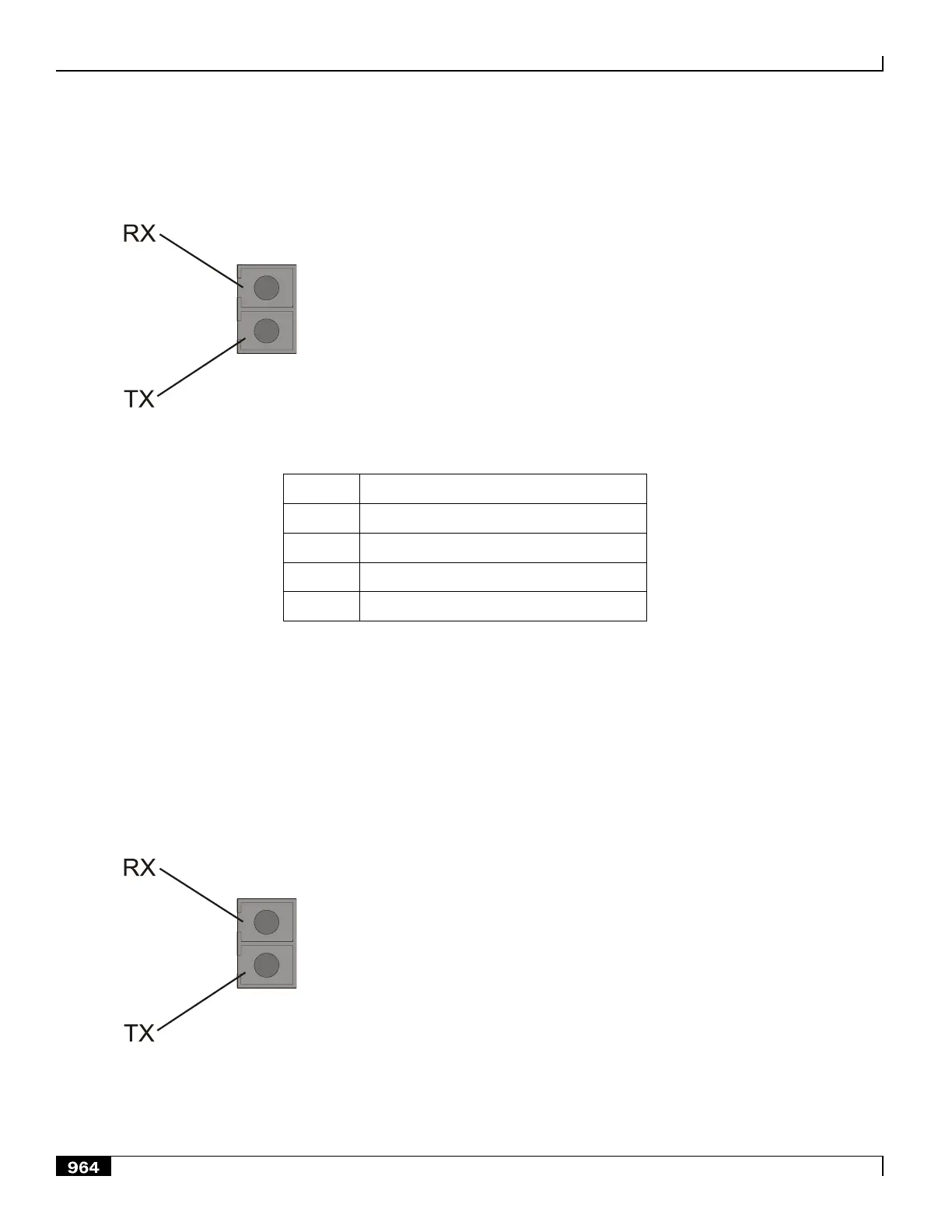

Figure 235. Channelized Line Cards with Single-Mode SFP Pin-out
Table 120. Single-Mode Fiber Interface Transmit and Receive Levels
Signal
Level
Max TX:
-8 dBm
Min TX:
-15 dBm
Max RX:
-8 dBm (saturation average power)
Min RX:
-28 (max) dBm (sensitivity average power)
Channelized Line Cards (CLC and CLC2) with Multi-Mode Interface
The fiber SFP interface on the 1-port and 4-port Channelized line cards with the multi-mode interface has one pair of
connectors that receive SFP transceivers, as shown in the following figure.
Figure 236. Channelized Line Cards with Multi-Mode SFP Pin-out
