Cisco ASR 5000 Series User Manual

Technical Specifications
▀ Interface Specifications
▄ Cisco ASR 5000 Series Product Overview
OL-22938-02
Table 107. RJ-45 to DB-25 Cable
Signal Description
Signal Type
RJ-45 Pin
DB-25 Pin
Clear to Send (CTS)
Input
1
5
Data set Ready (DSR)
Input
2
6
Receive Data (RX)
Input
3
3
Signal Ground (SGND)
-
4
7
Ready to Send (RTS)
Output
5
4
Transmit Data (TX)
Input
6
2
Data Carrier Detect (DCD)
Output
7
8
Data Terminal Ready (DTR)
Output
8
20
Fiber SFP Interface
The fiber SFP interface has two host connectors that receive SFP transceivers.

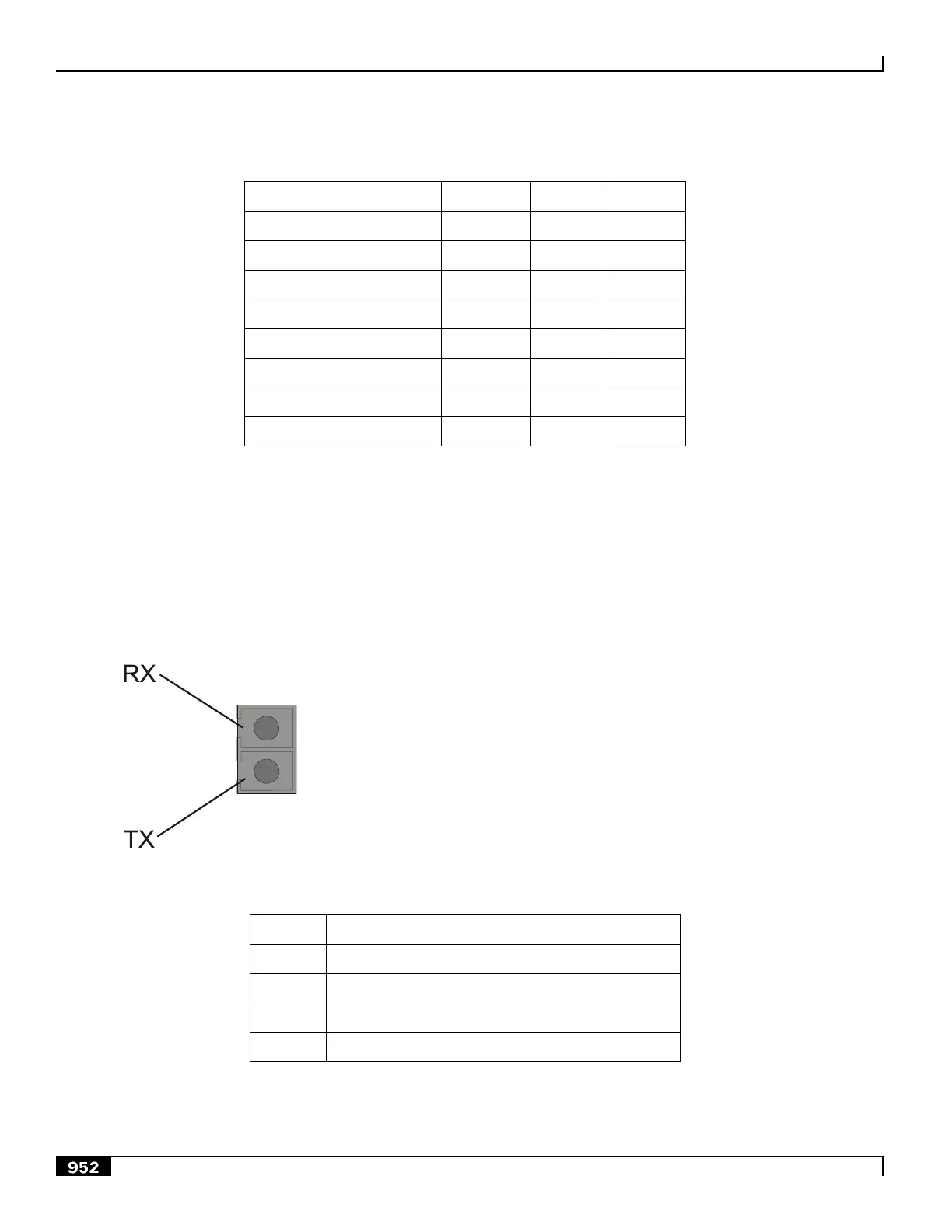

Figure 220. SPIO Gb Ethernet Fiber SFP Pin-out
Table 108. Fiber SFP Interface Transmit and Receive Levels
Signal
Level
Max TX:
0 dBm
Min TX:
-9.5 dBm
Max RX:
0 dBm (saturation average power)
Min RX:
-20 (typ) / -17 (max) dBm (sensitivity average power)
