HA Overview

Network Deployment Configurations ▀

Cisco ASR 5000 Series Product Overview ▄

OL-22938-02

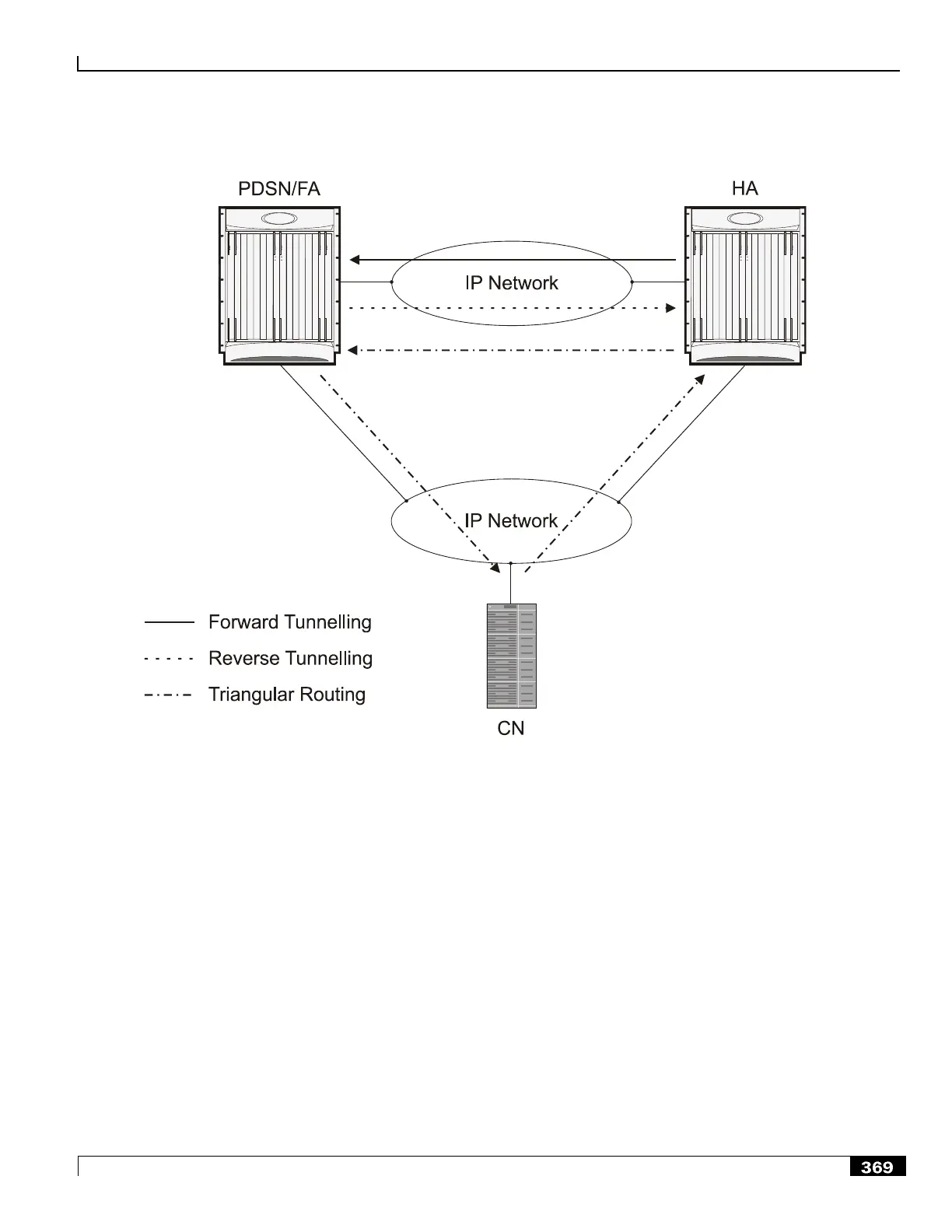

Figure 100. Mobile IP, FA and HA Tunneling/Transport Methods.

How Mobile IP Works

As described earlier, Mobile IP uses three basic communications protocols; PPP, IP, and Tunneled IP in the form of IP-

in-IP or GRE tunnels. The following figure depicts where each of these protocols are used in a basic Mobile IP call.

Default Chapter4
