Cisco ASR 5000 Series User Manual

Technical Specifications
▀ Interface Specifications
▄ Cisco ASR 5000 Series Product Overview
OL-22938-02
Interface Specifications
Following is a list of interfaces for use within the chassis. Each interface is shown with its specific pin-out.
Important: Some interfaces, such as an RJ-45 interface used for Ethernet connectivity, may have more than one
pin-out configuration, depending on the type of cable used.
SPIO Card Interfaces
Each interface on the SPIO card is described below. In each accompanying figure, the interface is shown in the same
orientation as the way it appears on the card.
Console Port Interface
The system‘s console port is an RJ-45 RS-232 interface used to access the command line interface. The interface
communicates at a baud rate of 9600 to 115,200 bps (115.2 Kbps). The default is 115,200 bps.
The interface‘s pin out detail is provided in the following figure and table.

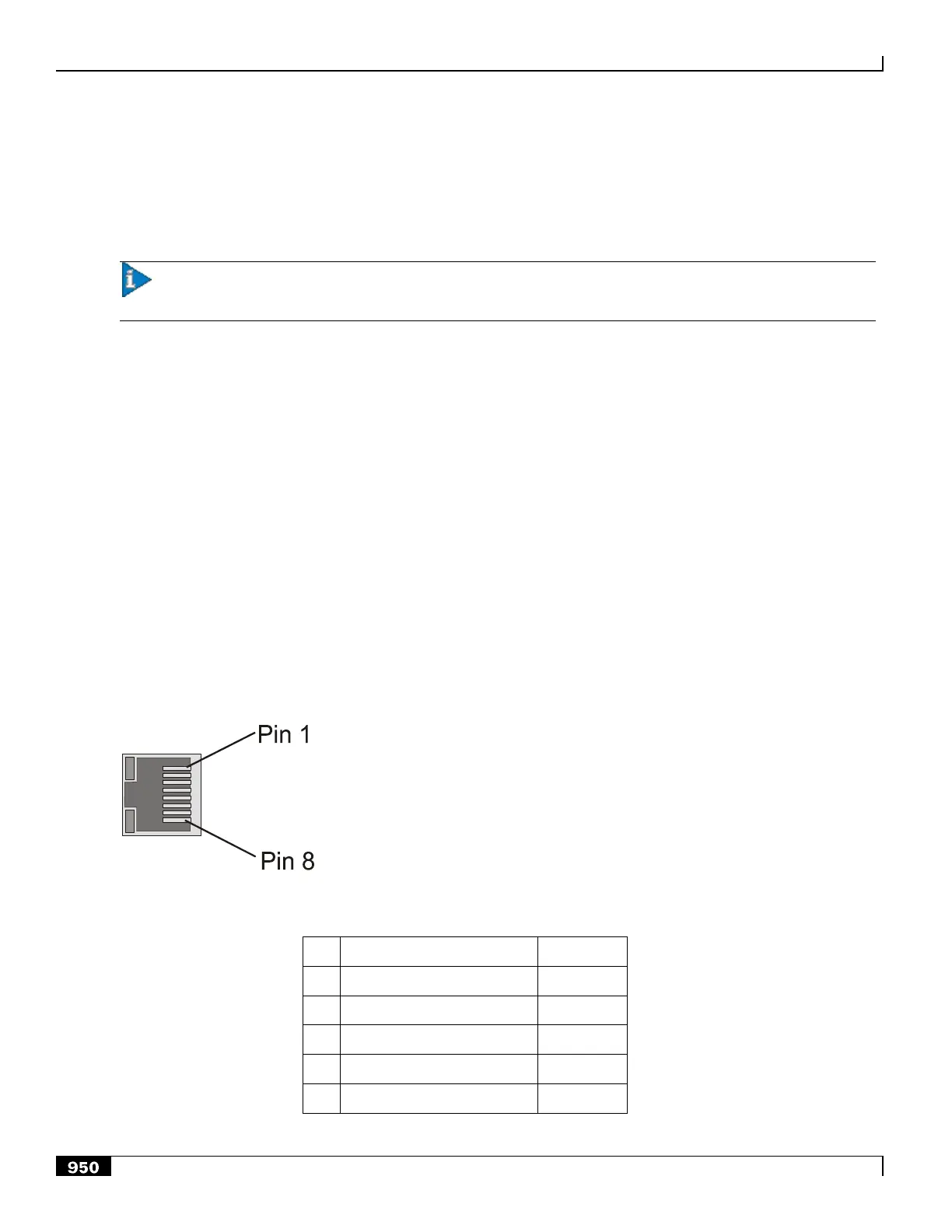

Figure 218. SPIO Console Port Pin-out
Table 105. SPIO Console Port Pin-out
Pin
Signal Description
Signal Type
1
Clear to Send (CTS)
Input
2
Data set Ready (DSR)
Input
3
Receive Data (RX)
Input
4
Signal Ground (SGND)
N/A
5
Ready to Send (RTS)
Output
